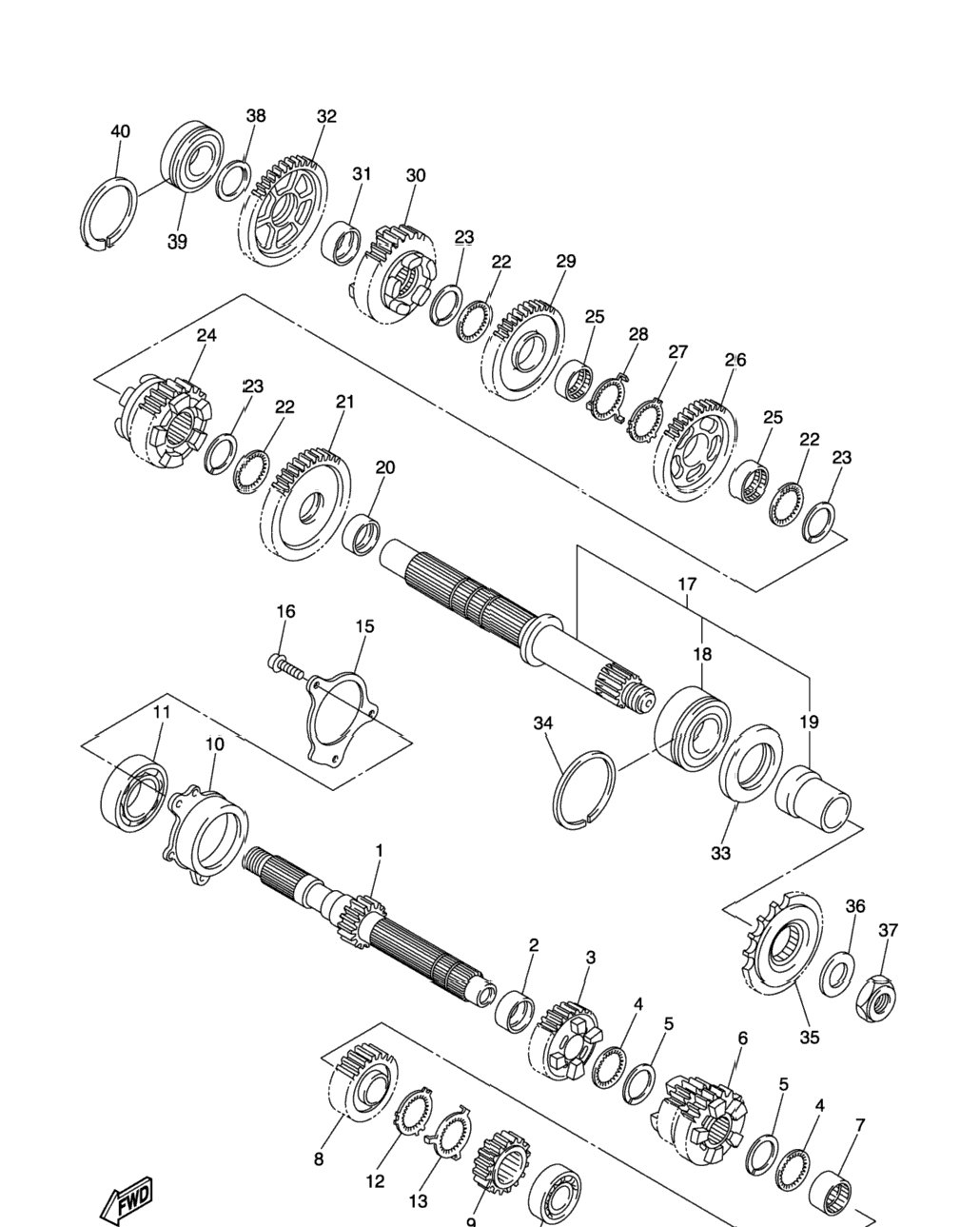

| 1 | 39P-17411-00-00 | Axle, Main (13T) | 1 шт. | — | |
|
| 2 | 90387-28003-00 | Collar | 1 шт. | — | |
|
| 3 | 39P-17151-00-00 | Gear, 5Th Pinion (20T) | 1 шт. | — | |
|
| 4 | 90209-25011-00 | Washer | 2 шт. | — | |
|
| 5 | 93440-28184-00 | Circlip | 2 шт. | — | |
|
| 6 | 39P-17131-00-00 | Gear, 3Rd Pinion (21/23T) | 1 шт. | — | |
|
| 7 | 90387-25007-00 | Collar | 1 шт. | — | |
|
| 8 | 39P-17161-00-00 | Gear, 6Th Pinion (24T) | 1 шт. | — | |
|
| 9 | 39P-17121-00-00 | Gear, 2Nd Pinion (16T) | 1 шт. | — | |
|
| 10 | 5VY-15163-00-00 | Housing, Bearing 1 | 1 шт. | — | |
|
| 11 | 93306-20652-00 | Bearing | 1 шт. | — | |
|
| 12 | 90214-25004-00 | Washer, Claw | 1 шт. | — | |
|
| 13 | 90214-25003-00 | Washer, Claw | 1 шт. | — | |
|
| 14 | 93306-27209-00 | Bearing | 1 шт. | — | |
|
| 15 | 5VY-17446-00-00 | Plate | 1 шт. | — | |
|
| 16 | 90110-06164-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 17 | 4C8-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 18 | 93305-20605-00 | . .Bearing | 1 шт. | — | |
|
| 19 | 5VY-17442-00-00 | . .Collar, Distance | 1 шт. | — | |
|
| 20 | 90387-31003-00 | Collar | 1 шт. | — | |
|
| 21 | 39P-17221-00-00 | Gear, 2Nd Wheel (33T) | 1 шт. | — | |
|
| 22 | 90209-28008-00 | Washer | 3 шт. | — | |
|
| 23 | 93440-31187-00 | Circlip | 3 шт. | — | |
|
| 24 | 39P-17261-00-00 | Gear, 6Th Wheel (29T) | 1 шт. | — | |
|
| 25 | 90387-28004-00 | Collar | 2 шт. | — | |
|
| 26 | 39P-17241-00-00 | Gear, 4Th Wheel (35T) | 1 шт. | — | |
|
| 27 | 90214-29002-00 | Washer, Claw | 1 шт. | — | |
|
| 28 | 90214-28002-00 | Washer, Claw | 1 шт. | — | |
|
| 29 | 5VY-17231-00-00 | Gear, 3Rd Wheel (37T) | 1 шт. | — | |
|
| 30 | 39P-17251-00-00 | Gear, 5Th Wheel (27T) | 1 шт. | — | |
|
| 31 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 32 | 39P-17211-00-00 | Gear, 1 St Wheel (35T) | 1 шт. | — | |
|
| 33 | 93102-40330-00 | Oil Seal | 1 шт. | — | |
|
| 34 | 93440-62032-00 | .Circlip | 1 шт. | — | |
|
| 35 | 5PS-17460-00-00 | Sprocket, Drive (16T) | 1 шт. | — | |
|
| 36 | 90201-22015-00 | Washer, Plate | 1 шт. | — | |
|
| 37 | 90179-22019-00 | Nut | 1 шт. | — | |
|
| 38 | 90201-257H0-00 | Washer, Plate | 1 шт. | — | |
|
| 39 | 93306-205A2-00 | Bearing | 1 шт. | — | |
|
| 40 | 93440-52009-00 | Circlip | 1 шт. | — | |
|
