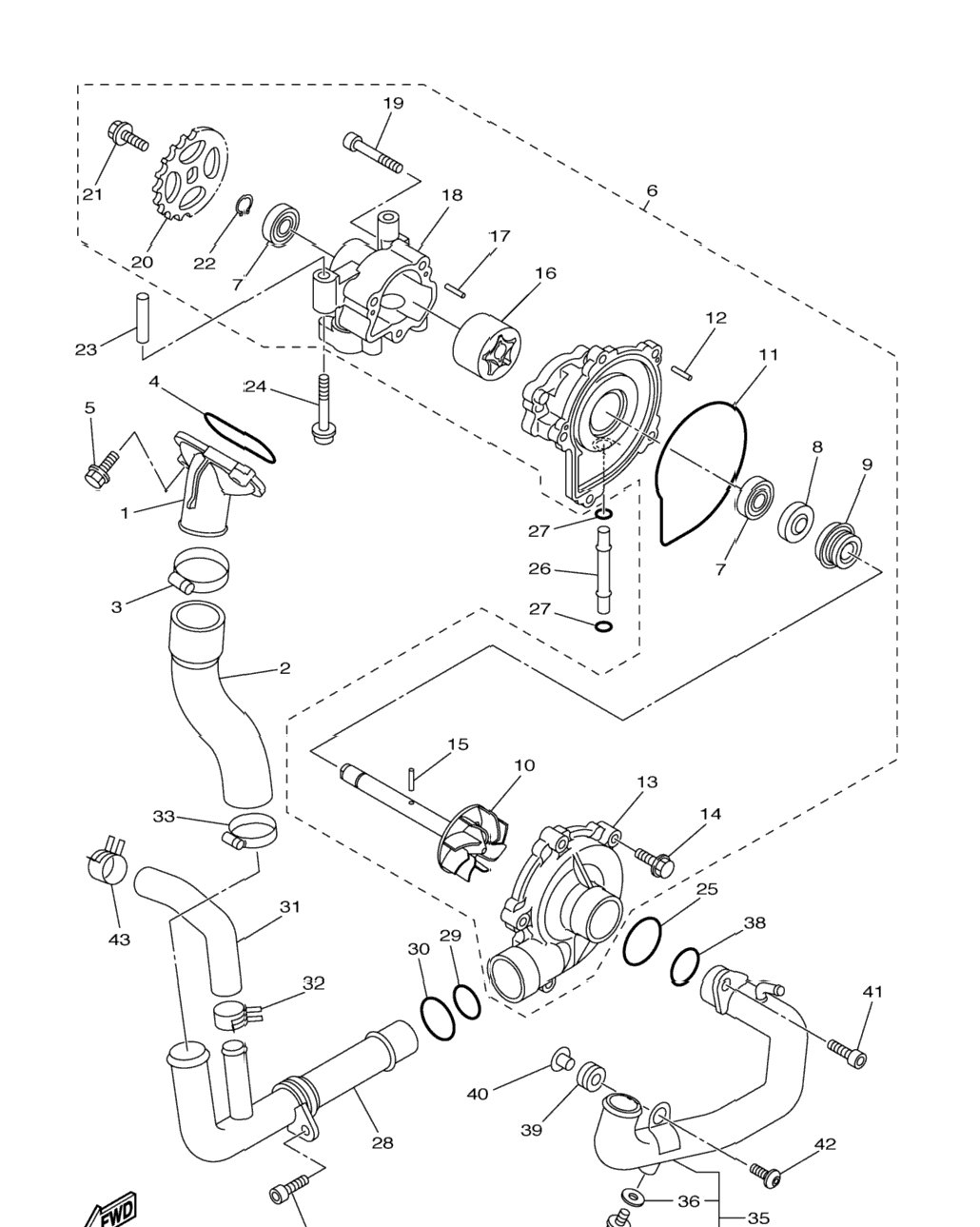

| 1 | 14B-12469-10-00 | Joint 1 | 1 шт. | — | |
|
| 2 | 39P-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 3 | 90450-38040-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 4 | 93210-46044-00 | O-Ring | 1 шт. | — | |
|
| 5 | 95024-06025-00 | .Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 6 | 4C8-12420-21-00 | Water Pump Assy | 1 шт. | — | |
|
| 7 | 93306-00106-00 | . .Bearing | 2 шт. | — | |
|
| 8 | 93102-12372-00 | . .Oil Seal | 1 шт. | — | |
|
| 9 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 10 | 4C8-12450-10-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 11 | 4XV-12439-00-00 | . .O-Ring | 1 шт. | — | |
|
| 12 | 93603-12007-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 13 | 5VY-12422-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 14 | 90105-06065-00 | . .Bolt, Flange | 5 шт. | — | |
|
| 15 | 93603-17070-00 | . Pin, Dowel | 1 шт. | — | |
|
| 16 | 5VY-13310-10-00 | . .Rotor Assy 1 | 1 шт. | — | |
|
| 17 | 93603-12007-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 18 | 5VY-13336-00-00 | . .Housing, Rotor | 1 шт. | — | |
|
| 19 | 91312-06040-00 | . Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 20 | 5VY-13355-00-00 | . .Sprocket, Driven | 1 шт. | — | |
|
| 21 | 90105-06066-00 | . .Bolt, Flange | 1 шт. | — | |
|
| 22 | 99009-12400-00 | . .Circlip | 1 шт. | — | |
|
| 23 | 91808-30031-00 | Pin, Dowel | 1 шт. | — | |
|
| 24 | 90110-06167-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 25 | 93210-357A2-00 | O-Ring | 1 шт. | — | |
|
| 26 | 4XV-12485-00-00 | Pipe 5 | 1 шт. | — | |
|
| 27 | 93210-06667-00 | O-Ring | 2 шт. | — | |
|
| 28 | 39P-12481-00-00 | Pipe 1 | 1 шт. | — | |
|
| 29 | 93210-235A1-00 | O-Ring | 1 шт. | — | |
|
| 30 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 31 | 5VY-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 32 | 90467-200A0-00 | Clip | 1 шт. | — | |
|
| 33 | 90450-32006-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 34 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 35 | 2D1-12484-01-00 | Pipe 4 | 1 шт. | — | |
|
| 36 | 90430-06014-00 | . .Gasket | 1 шт. | — | |
|
| 37 | 90153-06002-00 | . Screw, Hexagon | 1 шт. | — | |
|
| 38 | 93210-235A1-00 | O-Ring | 1 шт. | — | |
|
| 39 | 90480-12010-00 | Grommet | 1 шт. | — | |
|
| 40 | 90387-06112-00 | Collar | 1 шт. | — | |
|
| 41 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 42 | 90149-06022-00 | Screw | 1 шт. | — | |
|
| 43 | 90467-200A0-00 | Clip | 1 шт. | — | |
|
