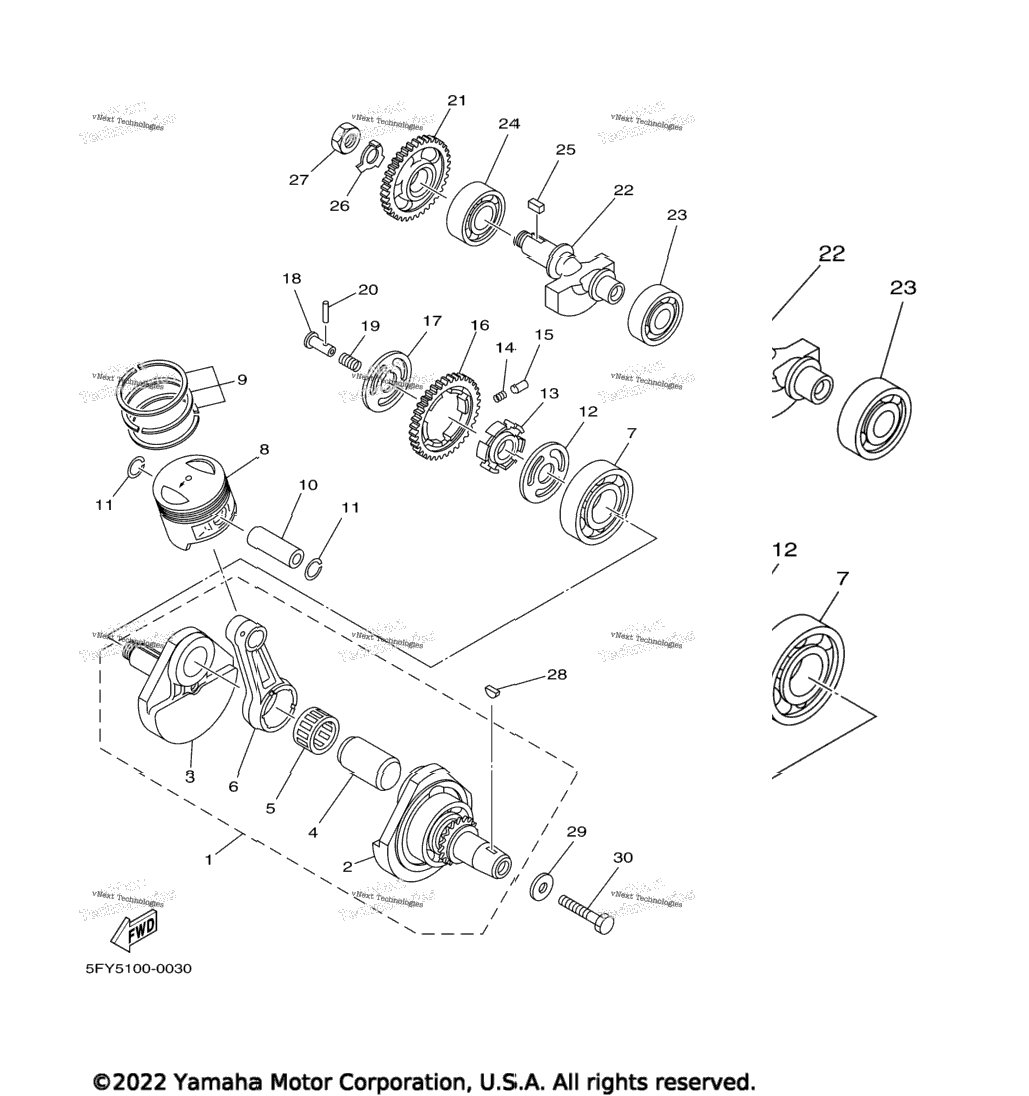

| 1 | 5H0-11400-00-00 | Crankshaft Assy | 1 шт. | — | |
|
| 2 | 5H0-11401-09-00 | . .Crank Sub Assy 1 | 1 шт. | — | |
|
| 3 | 5H0-11422-00-00 | . .Crank 2 | 1 шт. | — | |
|
| 4 | 5H0-11681-00-00 | . .Pin, Crank 1 | 1 шт. | — | |
|
| 5 | 93310-530J3-00 | . .Bearing | 1 шт. | — | |
|
| 6 | 15A-11651-00-00 | . .Rod, Connecting | 1 шт. | — | |
|
| 7 | 93306-30611-00 | Bearing | 1 шт. | — | |
|
| 8 | 36X-11636-00-00 | Piston (0.50Mm O/S) AP | 1 шт. | — | |
|
| 8 | 36X-11638-00-00 | Piston (1.00Mm O/S) AP | 1 шт. | — | |
|
| 8 | 36X-11631-00-A0 | Piston (Std) | 1 шт. | — | |
|
| 9 | 15A-11605-00-00 | Piston Ring Set (0.50Mm O/S) AP | 1 шт. | — | |
|
| 9 | 15A-11607-00-00 | Piston Ring Set (1.00Mm O/S) AP | 1 шт. | — | |
|
| 9 | 15A-11603-00-00 | Piston Ring Set (Std) | 1 шт. | — | |
|
| 10 | 15A-11633-00-00 | Pin, Piston | 1 шт. | — | |
|
| 11 | 93450-17044-00 | Circlip | 2 шт. | — | |
|
| 12 | 90201-201E4-00 | Washer, Plate | 1 шт. | — | |
|
| 13 | 5H0-11496-00-00 | Boss, Buffer | 1 шт. | — | |
|
| 14 | 90501-21133-00 | Spring, Compression | 6 шт. | — | |
|
| 15 | 93605-10090-00 | Pin, Dowel | 3 шт. | — | |
|
| 16 | 5H0-11536-00-00 | Gear, Drive (38T) | 1 шт. | — | |
|
| 17 | 90214-20023-00 | Washer, Claw | 1 шт. | — | |
|
| 18 | 90240-07083-00 | Pin, Clevis | 1 шт. | — | |
|
| 19 | 90501-07629-00 | Spring, Compression | 1 шт. | — | |
|
| 20 | 93602-13177-00 | Pin, Dowel | 1 шт. | — | |
|
| 21 | 5H0-11531-00-00 | Gear, Balance Weight (38T) | 1 шт. | — | |
|
| 22 | 15A-11454-00-00 | Weight 1 | 1 шт. | — | |
|
| 24 | 93306-30427-00 | Bearing | 1 шт. | — | |
|
| 24 | 93306-30427-00 | Bearing | 1 шт. | — | |
|
| 25 | 90282-05013-00 | Key, Straight | 1 шт. | — | |
|
| 26 | 90215-14205-00 | Washer, Lock | 1 шт. | — | |
|
| 27 | 90170-14284-00 | Nut | 1 шт. | — | |
|
| 28 | 90280-05048-00 | Key, Woodruff | 1 шт. | — | |
|
| 29 | 90201-10508-00 | Washer, Plate | 1 шт. | — | |
|
| 30 | 90101-10188-00 | Bolt | 1 шт. | — | |
|
