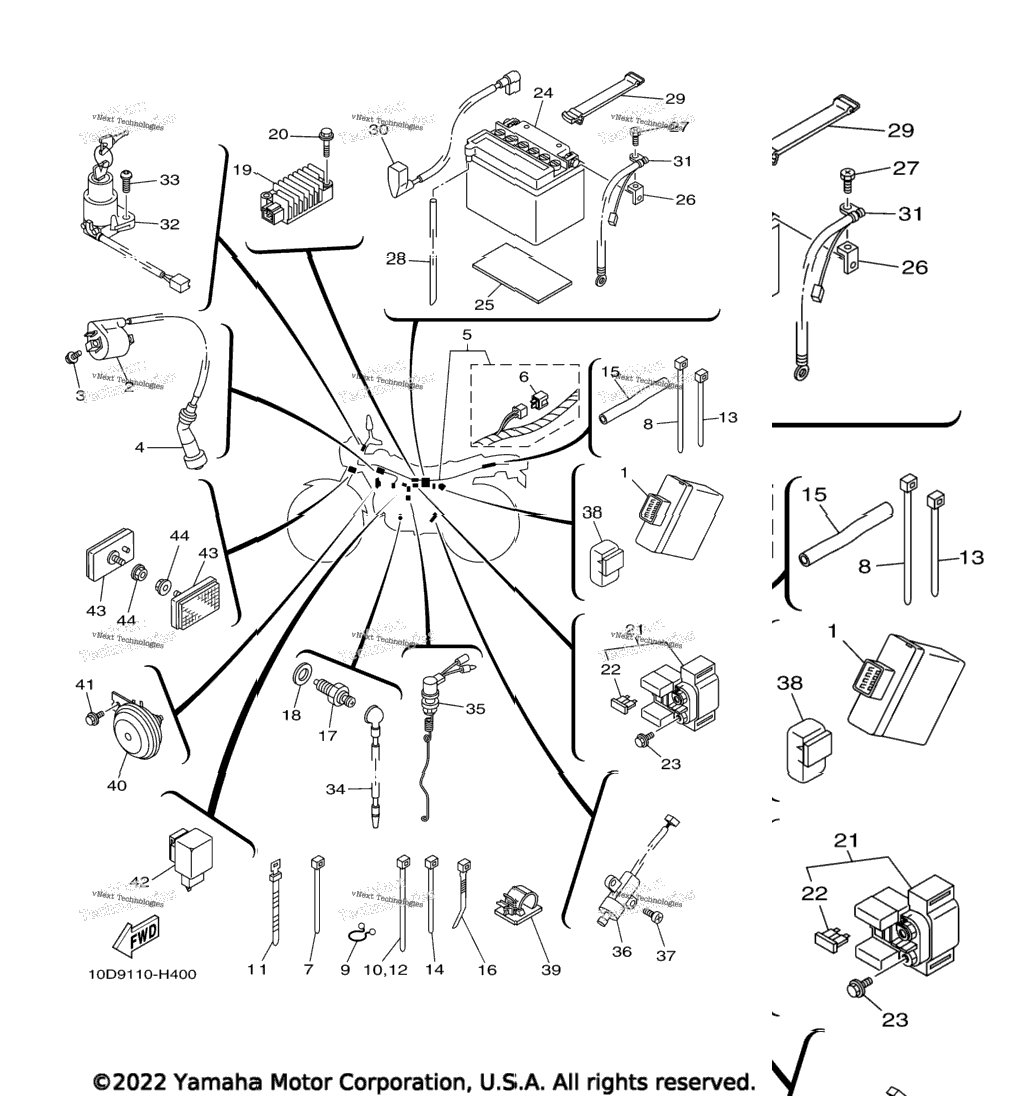

| 1 | 5LB-85540-01-00 | C.D.I. Unit Assy | 1 шт. | — | |
|
| 2 | 3RW-82310-10-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 3 | 95027-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 4 | 1UY-82370-20-00 | Plug Cap Assy | 1 шт. | — | |
|
| 5 | 5FY-82590-20-00 | Wire Harness Assy | 1 шт. | — | |
|
| 6 | 3WP-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 7 | 5Y9-12491-00-00 | Clamp 1 | 1 шт. | — | |
|
| 8 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 9 | 341-82594-00-00 | Clamp | 1 шт. | — | |
|
| 10 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 11 | 25G-83936-01-00 | Band, Switch Cord | 2 шт. | — | |
|
| 12 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 13 | 5Y9-12491-00-00 | Clamp 1 | 1 шт. | — | |
|
| 14 | 5Y9-12491-00-00 | Clamp 1 | 2 шт. | — | |
|
| 15 | 90446-15377-00 | Hose | 2 шт. | — | |
|
| 16 | 90465-10098-00 | Clamp | 3 шт. | — | |
|
| 17 | 4GY-82540-10-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 18 | 90430-10148-00 | Gasket | 1 шт. | — | |
|
| 19 | 3TJ-81960-02-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 20 | 95027-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 21 | 5EK-81940-02-00 | Starter Relay Assy (Rc19-022) | 1 шт. | — | |
|
| 22 | 2GH-82151-00-00 | . .Fuse (20A-Bl) | 2 шт. | — | |
|
| 23 | 95027-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 1JE-82110-61-00 | Battery Assy (Gs Gm7cz-3D) | 1 шт. | — | |
|
| 25 | 51Y-82122-00-00 | Seat, Battery | 1 шт. | — | |
|
| 26 | 5LB-8215C-00-00 | Terminal | 2 шт. | — | |
|
| 27 | 90153-06001-00 | Screw, Hexagon | 2 шт. | — | |
|
| 28 | 90445-082F3-00 | Hose (L540) | 1 шт. | — | |
|
| 29 | 18G-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 30 | 5LB-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 31 | 5EK-82116-02-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 32 | 5LB-82501-01-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 33 | 90149-06228-00 | Screw | 2 шт. | — | |
|
| 34 | 5VC-82541-10-00 | Wire, Lead | 1 шт. | — | |
|
| 35 | 5VC-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 36 | 3LD-82566-60-00 | Switch, Side Stand | 1 шт. | — | |
|
| 37 | 90157-05008-00 | Screw, Pan Head | 2 шт. | — | |
|
| 38 | 29U-81950-93-00 | Relay Assy (Aca12115-1) | 1 шт. | — | |
|
| 39 | 90464-13004-00 | Clamp | 1 шт. | — | |
|
| 40 | 5LB-83371-11-00 | Horn | 1 шт. | — | |
|
| 41 | 95807-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 42 | 4MY-83350-01-00 | .Flasher Relay Assy | 1 шт. | — | |
|
| 43 | 20G-85110-00-00 | Reflector Assy | 2 шт. | — | |
|
| 44 | 95707-05500-00 | Nut, Flange | 2 шт. | — | |
|
