Transmission

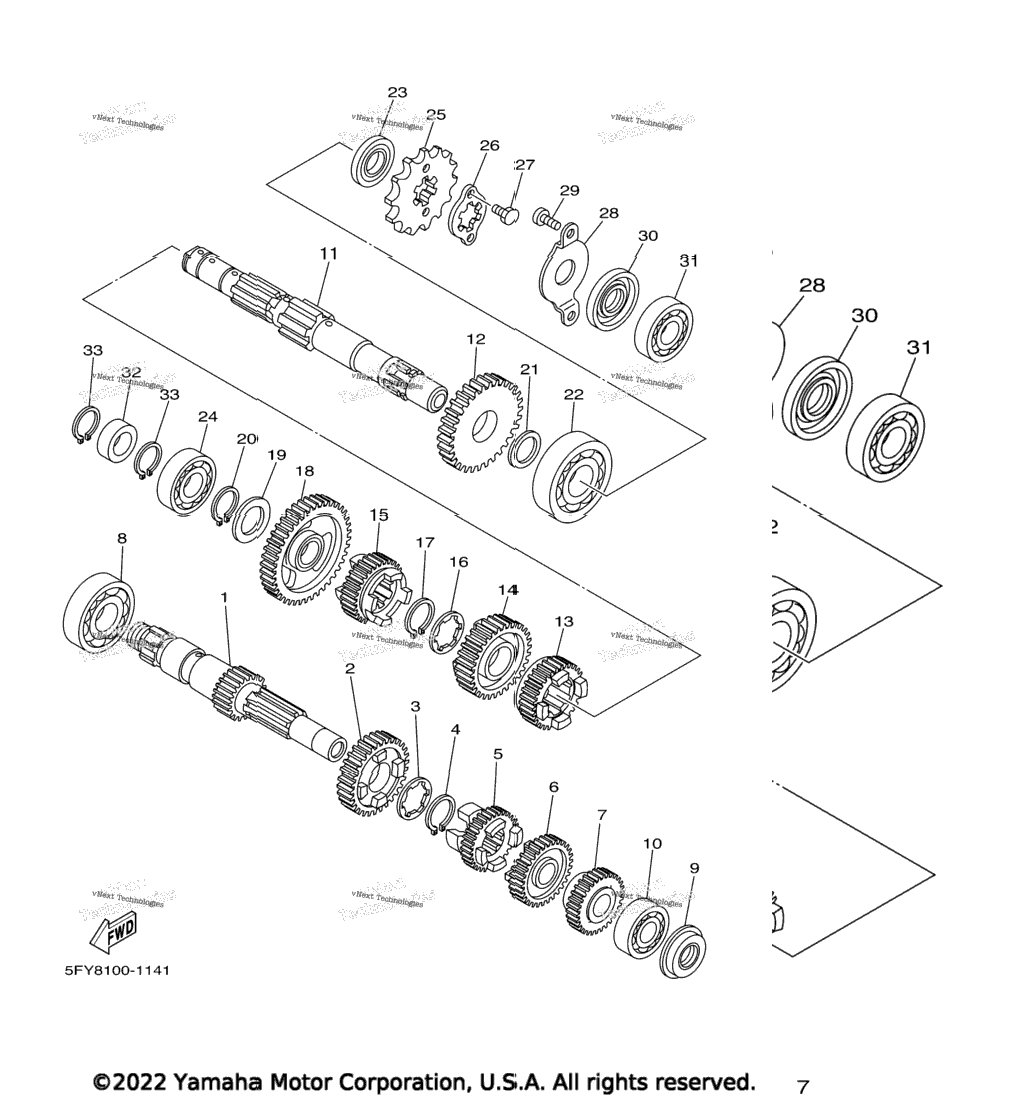

Схема Transmission
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 15A-17411-01-00 | Axle, Main (12T) | 1 шт. | — | |
|
| 2 | 15A-17151-01-00 | Gear, 5Th Pinion (28T) | 1 шт. | — | |
|
| 3 | 90209-16209-00 | Washer | 1 шт. | — | |
|
| 4 | 93410-20038-00 | .Circlip | 1 шт. | — | |
|
| 5 | 5H0-17121-01-00 | Gear, 2Nd Pinion (22T) | 1 шт. | — | |
|
| 6 | 15A-17141-00-00 | Gear, 4Th Pinion (25T) | 1 шт. | — | |
|
| 7 | 15A-17121-00-00 | Gear, 2Nd Pinion (19T) | 1 шт. | — | |
|
| 8 | 93306-20401-00 | Bearing | 1 шт. | — | |
|
| 9 | 93101-15101-00 | Oil Seal | 1 шт. | — | |
|
| 10 | 93306-20201-00 | Bearing | 1 шт. | — | |
|
| 11 | 2JX-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 12 | 15A-17221-00-00 | Gear, 2Nd Wheel (34T) | 1 шт. | — | |
|
| 13 | 15A-17241-00-00 | Gear, 4Th Wheel (26T) | 1 шт. | — | |
|
| 14 | 15A-17231-00-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 15 | 1EV-17251-00-00 | Gear, 5Th Wheel (23T) | 1 шт. | — | |
|
| 16 | 90209-18208-00 | Washer | 1 шт. | — | |
|
| 17 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 18 | 15A-17211-01-00 | Gear, 1St Wheel (34T) | 1 шт. | — | |
|
| 19 | 90201-17257-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 99009-17400-00 | Circlip | 1 шт. | — | |
|
| 21 | 90201-220J8-00 | Washer, Plate | 1 шт. | — | |
|
| 22 | 93306-20580-00 | Bearing | 1 шт. | — | |
|
| 23 | 93102-22389-00 | Oil Seal | 1 шт. | — | |
|
| 24 | 93306-20332-00 | Bearing | 1 шт. | — | |
|
| 25 | 93823-14149-00 | Sprocket, Drive (14T) | 1 шт. | — | |
|
| 26 | 2JX-17456-00-00 | Holder, Sprocket | 1 шт. | — | |
|
| 27 | 97007-05010-00 | Bolt | 2 шт. | — | |
|
| 28 | 2JX-17471-00-00 | Plate, Cover | 1 шт. | — | |
|
| 29 | 98507-06010-00 | Screw, Pan Head | 2 шт. | — | |
|
| 30 | 93102-17187-00 | Oil Seal | 1 шт. | — | |
|
| 31 | 93306-20313-00 | Bearing | 1 шт. | — | |
|
| 32 | 90560-17368-00 | Spacer | 1 шт. | — | |
|
| 33 | 99009-17400-00 | Circlip | 2 шт. | — | |
|
