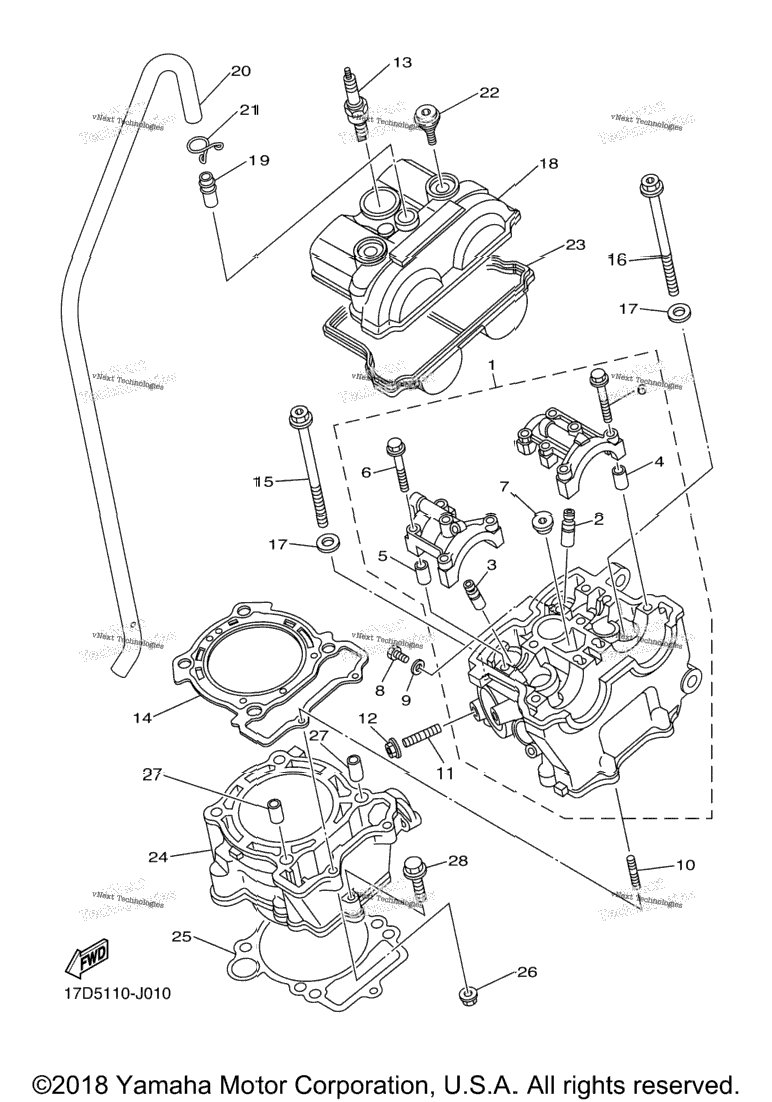

| 1 | 17D-11102-11-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 5NL-11133-10-00 | . .Guide, Valve 1 | 3 шт. | — | |
|
| 3 | 5NL-11134-10-00 | . .Guide, Valve 2 | 2 шт. | — | |
|
| 5 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 5 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 6 | 90105-06027-00 | . .Bolt, Flange | 10 шт. | — | |
|
| 7 | 90340-12007-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 8 | 95022-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 10 | 90116-06038-00 | Bolt, Stud | 2 шт. | — | |
|
| 11 | 95612-08620-00 | Bolt, Stud | 2 шт. | — | |
|
| 12 | 95702-08500-00 | Nut, Flange | 2 шт. | — | |
|
| 13 | 94701-00411-00 | Plug, Spark (Ngk R Cr8e) STD | 1 шт. | — | |
|
| 13 | 94701-00410-00 | Plug, Spark (Ngk R Cr9e) AP | 1 шт. | — | |
|
| 14 | 5NL-11181-00-00 | Gasket, Cylinder Head 1 | 1 шт. | — | |
|
| 15 | 90105-09004-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 90105-09002-00 | Bolt, Flange | 2 шт. | — | |
|
| 17 | 90201-096J9-00 | Washer, Plate | 4 шт. | — | |
|
| 18 | 5NL-11191-50-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 19 | 371-11167-01-00 | Pipe, Breather 2 | 1 шт. | — | |
|
| 20 | 5XC-11166-00-00 | Pipe, Breather 1 | 1 шт. | — | |
|
| 21 | 90467-140A4-00 | Clip | 1 шт. | — | |
|
| 22 | 5UM-1119E-00-00 | Bolt, Cover Head | 2 шт. | — | |
|
| 23 | 5NL-11193-00-00 | Gasket, Head Cover 1 | 1 шт. | — | |
|
| 24 | 5XC-11311-20-00 | Cylinder 1 | 1 шт. | — | |
|
| 25 | 5NL-11351-00-00 | Gasket, Cylinder | 1 шт. | — | |
|
| 26 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 27 | 93612-16254-00 | Pin, Dowel | 2 шт. | — | |
|
| 28 | 95022-06035-00 | Bolt, Flange | 1 шт. | — | |
|
