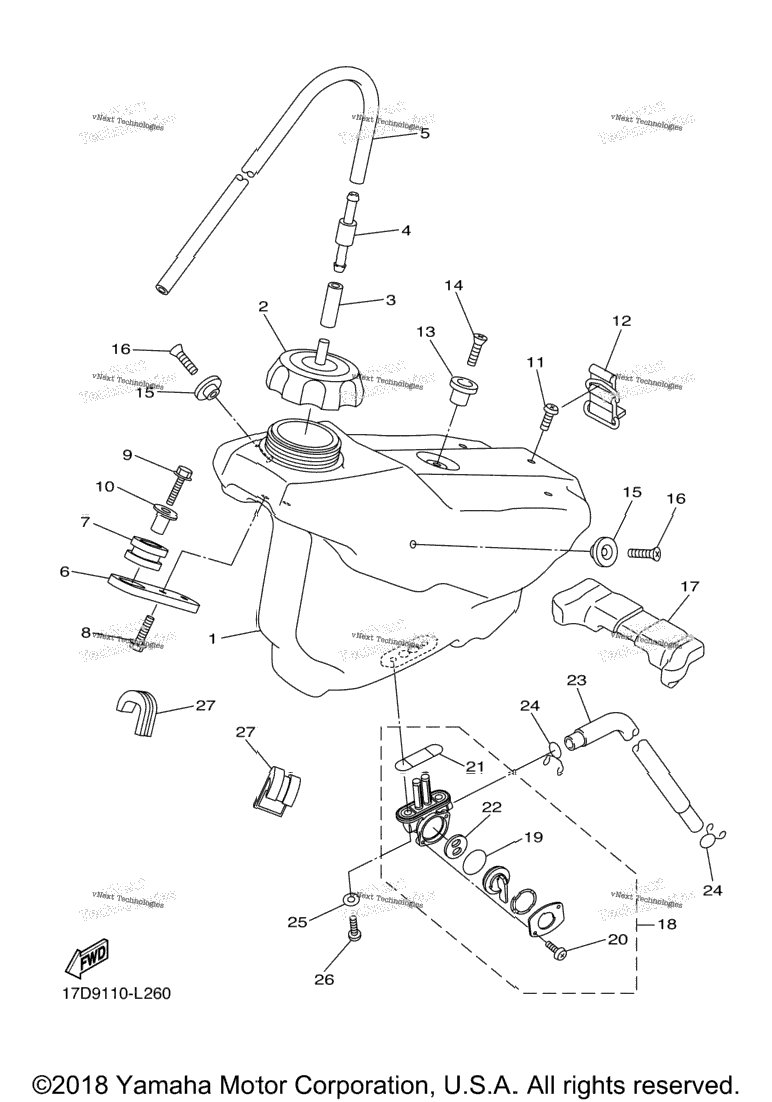

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 17D-24110-50-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 5NY-24610-10-00 | Cap Assy | 1 шт. | — | |
|
| 3 | 90445-09003-00 | Hose (L30) | 1 шт. | — | |
|
| 4 | 3XJ-24380-00-00 | Pipe Joint Assy | 1 шт. | — | |
|
| 5 | 90445-09005-00 | Hose | 0 шт. | — | |
|
| 6 | 17D-24144-00-00 | Holder, Damper | 1 шт. | — | |
|
| 7 | 90480-17008-00 | Grommet | 1 шт. | — | |
|
| 8 | 90105-06107-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 90105-06111-00 | Bolt, Flange | 1 шт. | — | |
|
| 10 | 3JD-24186-00-00 | Washer, Special | 1 шт. | — | |
|
| 11 | 98902-06025-00 | Screw, Bind | 1 шт. | — | |
|
| 12 | 5SF-24173-00-00 | Band, Tank Fitting 1 | 1 шт. | — | |
|
| 13 | 4EW-2412F-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 14 | 98707-06025-00 | Screw, Flat Head | 1 шт. | — | |
|
| 15 | 17D-2412F-00-00 | Bracket, Seat | 2 шт. | — | |
|
| 16 | 98702-06020-00 | Screw, Flat Head | 2 шт. | — | |
|
| 17 | 17D-24181-50-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 18 | 4DP-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 19 | 3AJ-24534-10-00 | . .Seal, Cock | 1 шт. | — | |
|
| 20 | 98507-03008-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 21 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 22 | 3AC-24523-00-00 | . .Valve Packing | 1 шт. | — | |
|
| 23 | 90445-11059-00 | Hose | 1 шт. | — | |
|
| 24 | 90467-100A1-00 | .Clip | 2 шт. | — | |
|
| 25 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 26 | 90149-06108-00 | Screw | 2 шт. | — | |
|
| 27 | 17D-24182-50-00 | Damper, Locating 2 | 2 шт. | — | |
|
