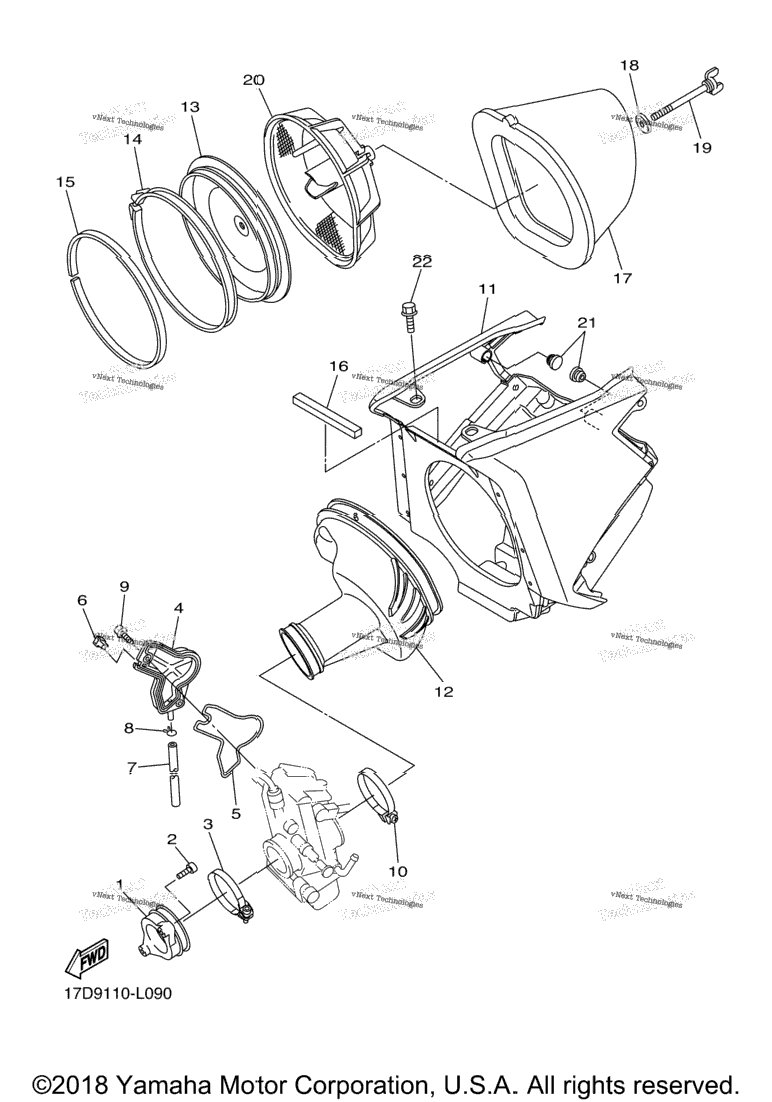

| 1 | 17D-13597-90-00 | Joint, Carburetor 3 | 1 шт. | — | |
|
| 2 | 91312-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 3 | 90450-58006-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 4 | 5TA-14293-00-00 | Cover 1 | 1 шт. | — | |
|
| 5 | 5TA-14227-00-00 | Gasket | 1 шт. | — | |
|
| 6 | 5TA-14239-00-00 | Seal | 1 шт. | — | |
|
| 7 | 5TA-14987-00-00 | Hose | 1 шт. | — | |
|
| 8 | 3TJ-14137-40-00 | .Clip | 1 шт. | — | |
|
| 9 | 90110-05038-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 10 | 90450-61002-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 11 | 17D-14401-00-00 | Air Cleaner Case Assy | 1 шт. | — | |
|
| 12 | 17D-14453-50-00 | Joint, Air Cleaner 1 | 1 шт. | — | |
|
| 13 | 5NY-14459-00-00 | Holder, Guide | 1 шт. | — | |
|
| 14 | 5NY-14455-20-00 | Band | 1 шт. | — | |
|
| 15 | 5NY-14442-00-00 | Spacer | 1 шт. | — | |
|
| 16 | 17D-14452-00-00 | Seal | 1 шт. | — | |
|
| 17 | 4XM-14451-00-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 18 | 90209-06096-00 | Washer | 1 шт. | — | |
|
| 19 | 90122-06005-00 | Bolt, Wing | 1 шт. | — | |
|
| 20 | 17D-14458-00-00 | Guide | 1 шт. | — | |
|
| 21 | 90480-10068-00 | .Grommet | 2 шт. | — | |
|
| 22 | 90105-06170-00 | Bolt, Flange | 2 шт. | — | |
|
