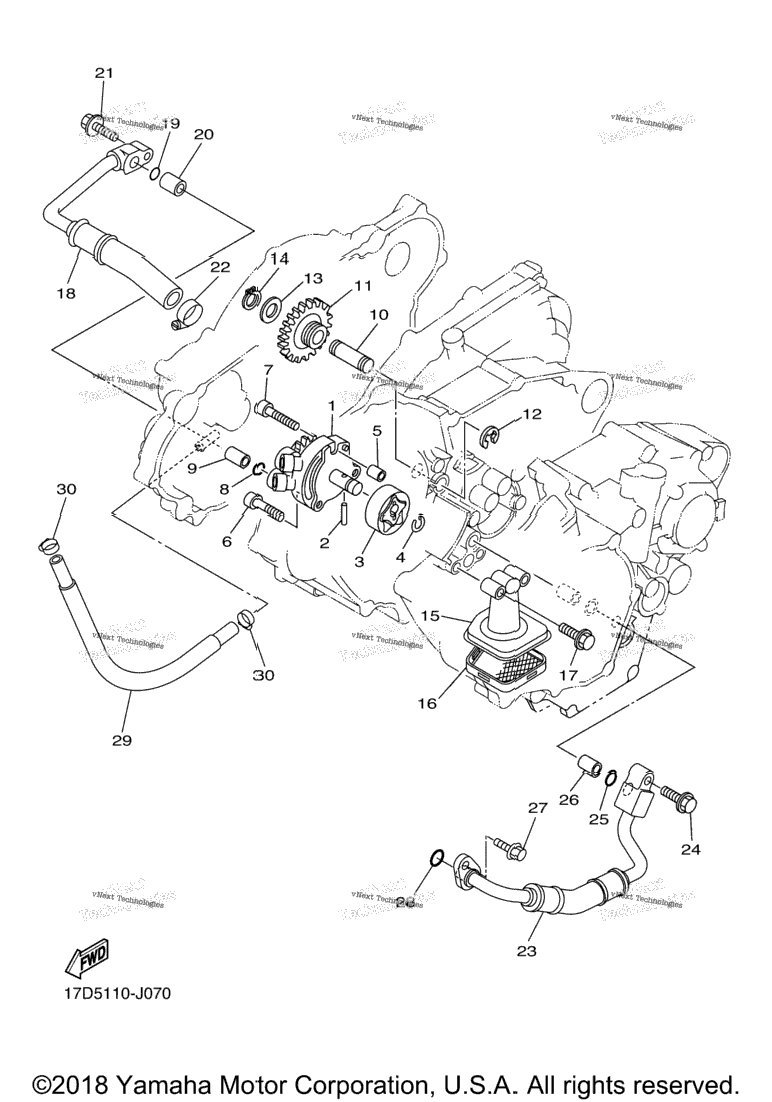

| 1 | 5SG-13300-01-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 93603-16219-00 | Pin, Dowel | 1 шт. | — | |
|
| 3 | 5NL-13320-00-00 | Rotor Assy 2 | 1 шт. | — | |
|
| 4 | 93440-10153-00 | .Circlip | 1 шт. | — | |
|
| 5 | 99530-08012-00 | Pin, Dowel | 1 шт. | — | |
|
| 6 | 91312-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 7 | 91317-06030-00 | Bolt, Hex. Socket Head | 1 шт. | — | |
|
| 10 | 5BE-13342-00-00 | Shaft, Idle Gear | 1 шт. | — | |
|
| 11 | 5NL-13341-00-00 | Gear, Oil Pump Idle | 1 шт. | — | |
|
| 12 | 99001-08600-00 | Circlip | 1 шт. | — | |
|
| 13 | 90201-12166-00 | Washer, Plate | 1 шт. | — | |
|
| 14 | 99009-12400-00 | .Circlip | 1 шт. | — | |
|
| 15 | 5XC-13412-00-00 | Housing, Strainer | 1 шт. | — | |
|
| 16 | 5NL-13411-00-00 | Strainer, Oil | 1 шт. | — | |
|
| 18 | 17D-13464-00-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 22 | 90450-22001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 23 | 17D-13465-00-00 | Hose, Oil 2 | 1 шт. | — | |
|
| 24 | 95022-06025-00 | .Bolt, Flange | 1 шт. | — | |
|
| 24 | 95022-06025-00 | .Bolt, Flange | 1 шт. | — | |
|
| 24 | 95022-06025-00 | .Bolt, Flange | 2 шт. | — | |
|
| 25 | 93210-10197-00 | O-Ring | 1 шт. | — | |
|
| 25 | 93210-10197-00 | O-Ring | 1 шт. | — | |
|
| 25 | 93210-10197-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 27 | 95022-06016-00 | Bolt, Flange | 1 шт. | — | |
|
| 28 | 93210-09754-00 | O-Ring | 1 шт. | — | |
|
| 29 | 90445-14017-00 | Hose | 1 шт. | — | |
|
| 30 | 90450-17001-00 | Hose Clamp Assy | 2 шт. | — | |
|
