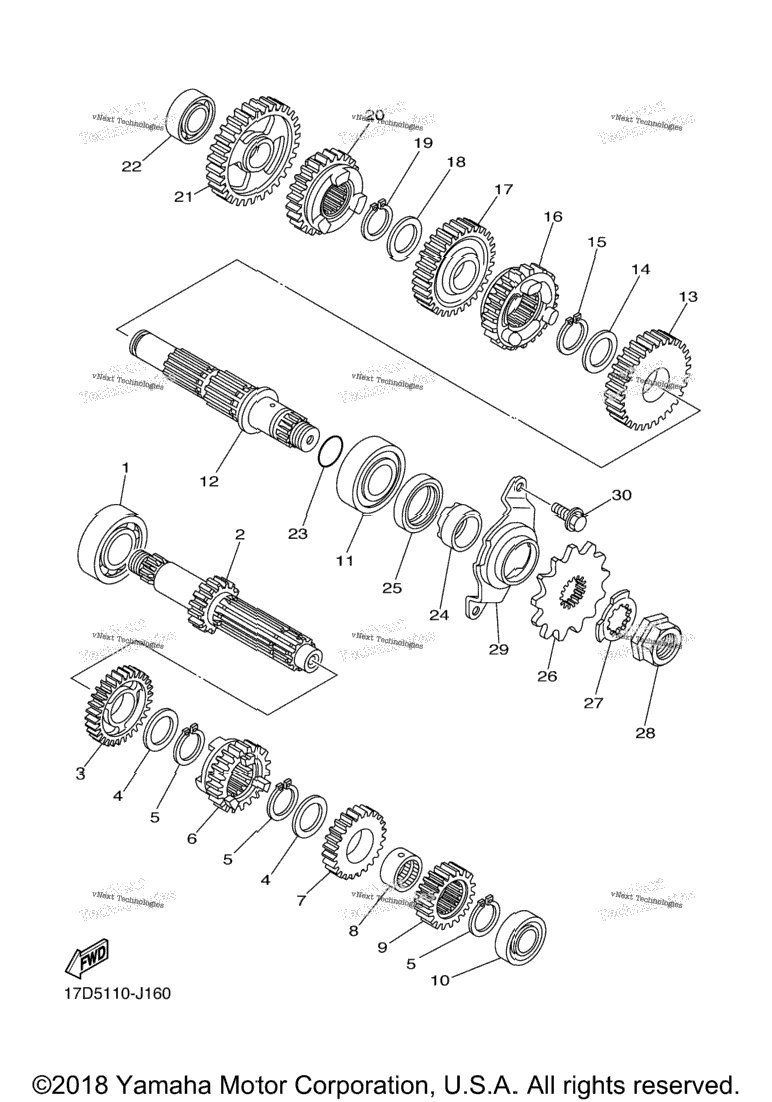

| 1 | 93306-20447-00 | Bearing | 1 шт. | — | |
|
| 2 | 5XC-17411-00-00 | Axle, Main (14T) | 1 шт. | — | |
|
| 3 | 17D-17151-10-00 | Gear, 5Th Pinion (24T) | 1 шт. | — | |
|
| 4 | 90209-20008-00 | Washer | 2 шт. | — | |
|
| 5 | 93410-22039-00 | Circlip | 3 шт. | — | |
|
| 6 | 17D-17131-10-00 | Gear, 3Rd Pinion (18T) | 1 шт. | — | |
|
| 7 | 17D-17141-10-00 | Gear, 4Th Pinion (18T) | 1 шт. | — | |
|
| 8 | 90387-20006-00 | Collar | 1 шт. | — | |
|
| 9 | 5NL-17121-00-00 | Gear, 2Nd Pinion (16T) | 1 шт. | — | |
|
| 10 | 93306-00320-00 | Bearing | 1 шт. | — | |
|
| 11 | 93306-27209-00 | Bearing | 1 шт. | — | |
|
| 12 | 5NL-17402-01-00 | Drive Axle Assy | 1 шт. | — | |
|
| 13 | 5NL-17221-00-00 | Gear, 2Nd Wheel (28T) | 1 шт. | — | |
|
| 14 | 90209-23012-00 | Washer | 1 шт. | — | |
|
| 15 | 93410-26067-00 | Circlip | 1 шт. | — | |
|
| 16 | 17D-17241-10-00 | Gear, 4Th Wheel (22T) | 1 шт. | — | |
|
| 17 | 17D-17231-10-00 | Gear, 3Rd Wheel (26T) | 1 шт. | — | |
|
| 18 | 90209-20008-00 | Washer | 1 шт. | — | |
|
| 19 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 20 | 17D-17251-11-00 | Gear, 5Th Wheel (25T) | 1 шт. | — | |
|
| 21 | 5NL-17211-10-00 | Gear, 1St Wheel (30T) | 1 шт. | — | |
|
| 22 | 93306-00317-00 | Bearing | 1 шт. | — | |
|
| 23 | 93210-196A4-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 24 | 90387-22001-00 | Collar | 1 шт. | — | |
|
| 25 | 93102-28010-00 | Oil Seal INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 26 | 9383B-13218-00 | Sprocket, Drive (13T) | 1 шт. | — | |
|
| 27 | 90215-20003-00 | Washer, Lock | 1 шт. | — | |
|
| 28 | 90179-18001-00 | Nut | 1 шт. | — | |
|
| 29 | 5NL-17471-10-00 | Plate, Cover | 1 шт. | — | |
|
| 30 | 90105-06081-00 | Bolt, Flange | 2 шт. | — | |
|
