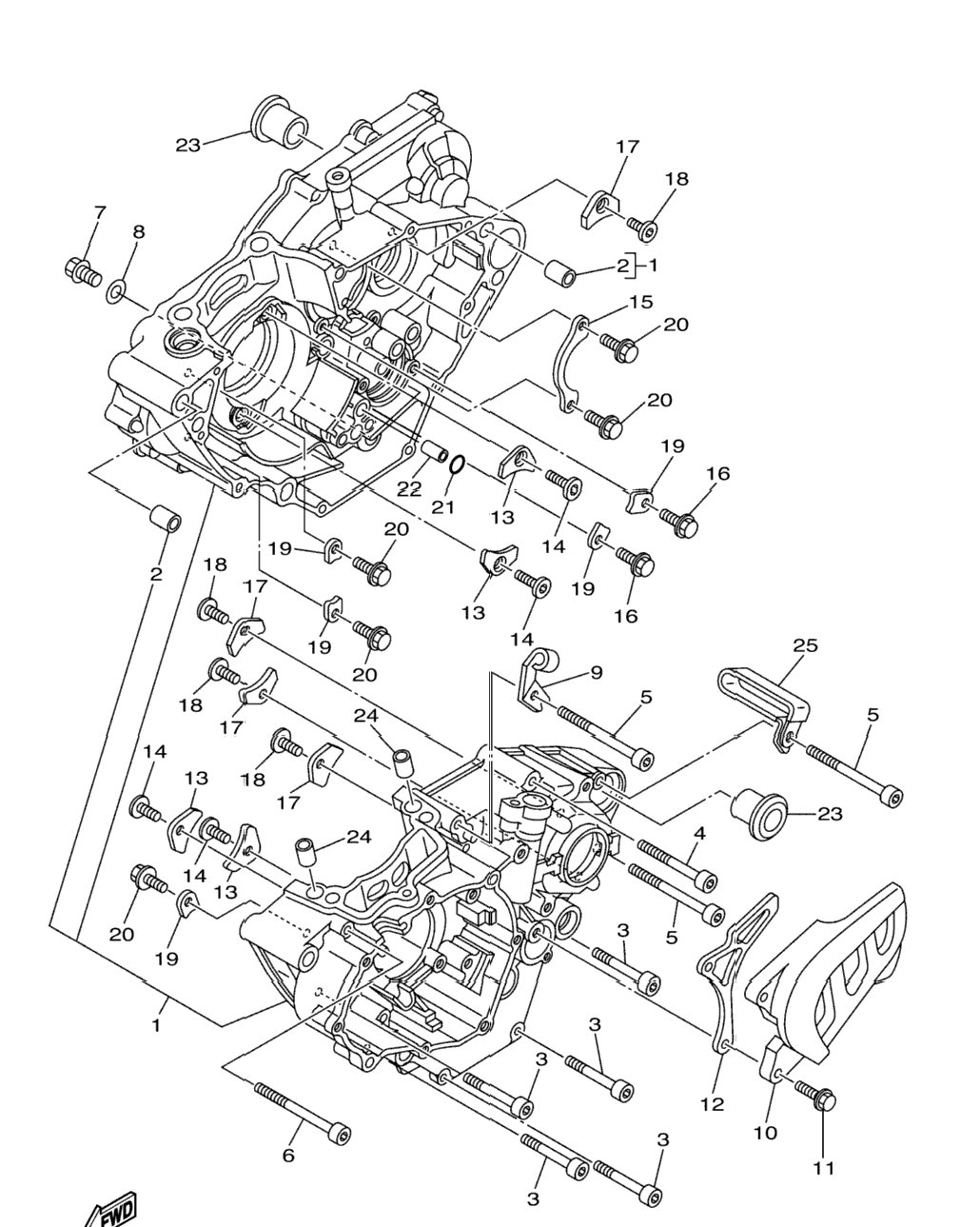

| 1 | 5UM-15100-28-YX | Crankcase Assy | 1 шт. | — | — |
|
| 2 | 93612-16254-00 | . Pin, Dowel | 2 шт. | — | |
|
| 3 | 91312-06045-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 4 | 91312-06055-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 5 | 91312-06070-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 6 | 91312-06100-00 | Bolt, Hexagon Socket Head | 0 шт. | — | |
|
| 7 | 95022-10016-00 | Bolt, Flange | 1 шт. | — | |
|
| 8 | 90430-10188-00 | Gasket INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 9 | 5NL-15441-01-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 10 | 5BE-15421-30-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 11 | 90105-06189-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 5NL-17466-00-00 | Guide, Chain | 1 шт. | — | |
|
| 13 | 5BE-15383-01-00 | Plate, Bearing Cover | 4 шт. | — | |
|
| 14 | 90151-06044-00 | Screw, Countersunk | 4 шт. | — | |
|
| 15 | 5NL-15388-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 17 | 4JT-15381-01-00 | .Plate, Bearing Cover | 4 шт. | — | |
|
| 18 | 90149-06074-00 | Screw | 4 шт. | — | |
|
| 19 | 5DH-18562-00-00 | Plate, Stopper 2 | 5 шт. | — | |
|
| 20 | 90105-06081-00 | Bolt, Flange | 5 шт. | — | |
|
| 20 | 90105-06081-00 | Bolt, Flange | 2 шт. | — | |
|
| 21 | 93210-10197-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 22 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 23 | 90387-18007-00 | Collar | 2 шт. | — | |
|
| 24 | 99530-10116-00 | Pin, Dowel | 2 шт. | — | |
|
| 25 | 90465-10013-00 | Clamp | 1 шт. | — | |
|
