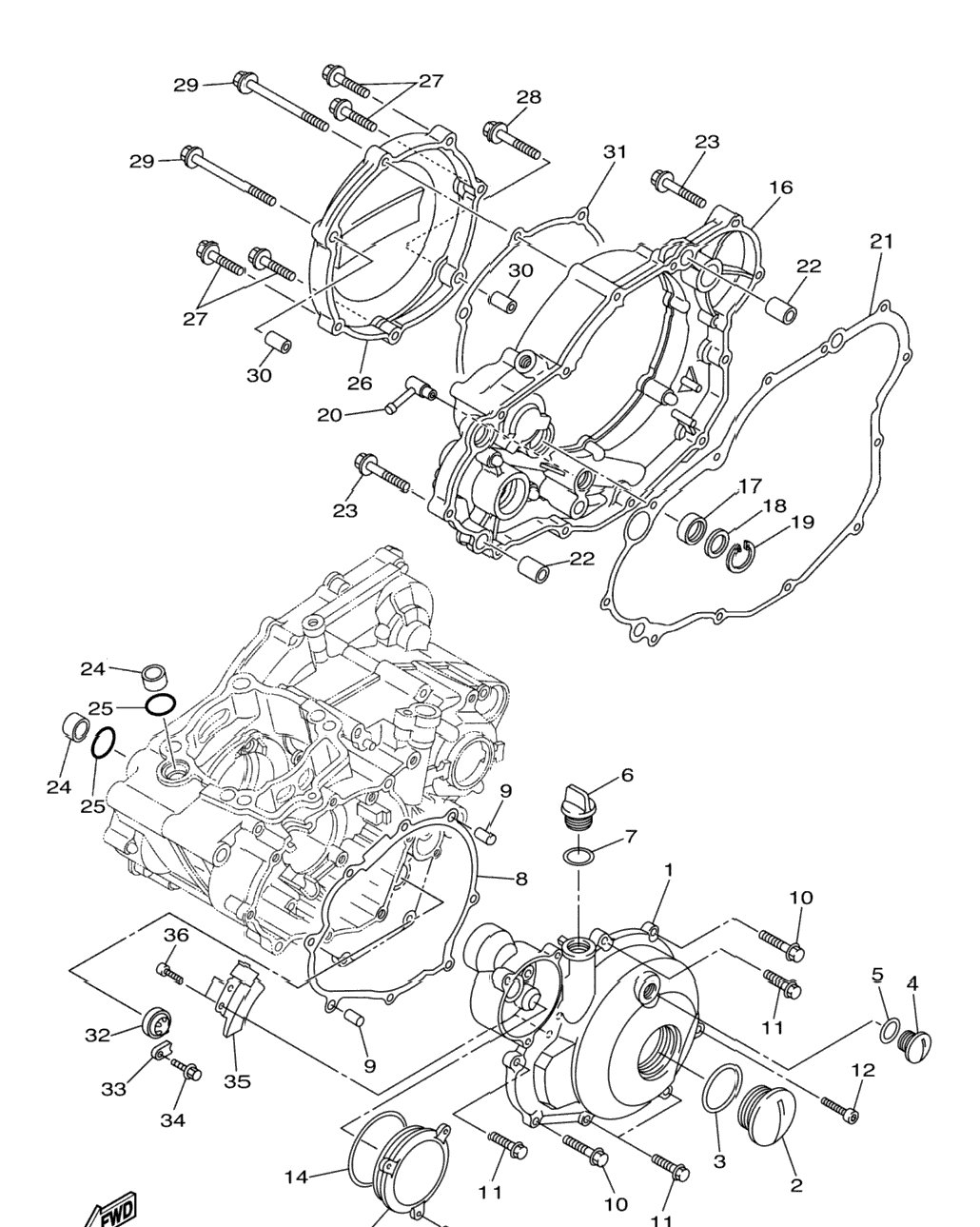

| 1 | 5UM-15411-20-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-27004-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 4 | 90340-14015-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 6 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 7 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 8 | 5UM-15451-00-00 | Gasket, Crankcase Cover 1 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 10 | 95022-06040-00 | Bolt, Flange | 2 шт. | — | |
|
| 11 | 95022-06030-00 | Bolt, Flange | 4 шт. | — | |
|
| 12 | 91312-06110-00 | Bolt | 1 шт. | — | |
|
| 13 | 5UM-1549B-20-00 | Cover Assy 2 | 1 шт. | — | |
|
| 14 | 93210-60426-00 | .O-Ring | 1 шт. | — | |
|
| 15 | 95022-06016-00 | Bolt, Flange | 3 шт. | — | |
|
| 16 | 5XC-15431-01-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 17 | 93101-14164-00 | Oil Seal | 1 шт. | — | |
|
| 18 | 90201-15701-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 19 | 99009-22500-00 | Circlip | 1 шт. | — | |
|
| 20 | 5XC-15373-00-00 | Pipe, Breather | 1 шт. | — | |
|
| 21 | 5NL-15462-00-00 | Gasket, Crankcase Cover 3 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 22 | 91812-16001-00 | Pin, Dowel | 2 шт. | — | |
|
| 24 | 5NL-12564-00-00 | Pipe, Water | 2 шт. | — | |
|
| 25 | 93210-16716-00 | O-Ring | 2 шт. | — | |
|
| 25 | 93210-16772-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 26 | 5NL-15415-30-00 | Cover, Generator | 1 шт. | — | |
|
| 27 | 95022-06025-00 | Bolt, Flange | 4 шт. | — | |
|
| 28 | 95022-06035-00 | Bolt, Flange | 8 шт. | — | |
|
| 28 | 95022-06035-00 | Bolt, Flange | 1 шт. | — | |
|
| 29 | 90105-06098-00 | Bolt, Flange | 2 шт. | — | |
|
| 30 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 30 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 31 | 5NL-15453-10-00 | Gasket 1 INCL. IN BOTTOM END GASKET AND CLUTCH KITS | 1 шт. | — | |
|
| 32 | 3Y1-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 33 | 5XC-15118-00-00 | Holder | 1 шт. | — | |
|
| 34 | 90105-06094-00 | Bolt, Flange | 1 шт. | — | |
|
| 35 | 5UM-81528-00-00 | Clamp 1 | 1 шт. | — | |
|
| 36 | 91312-05012-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
