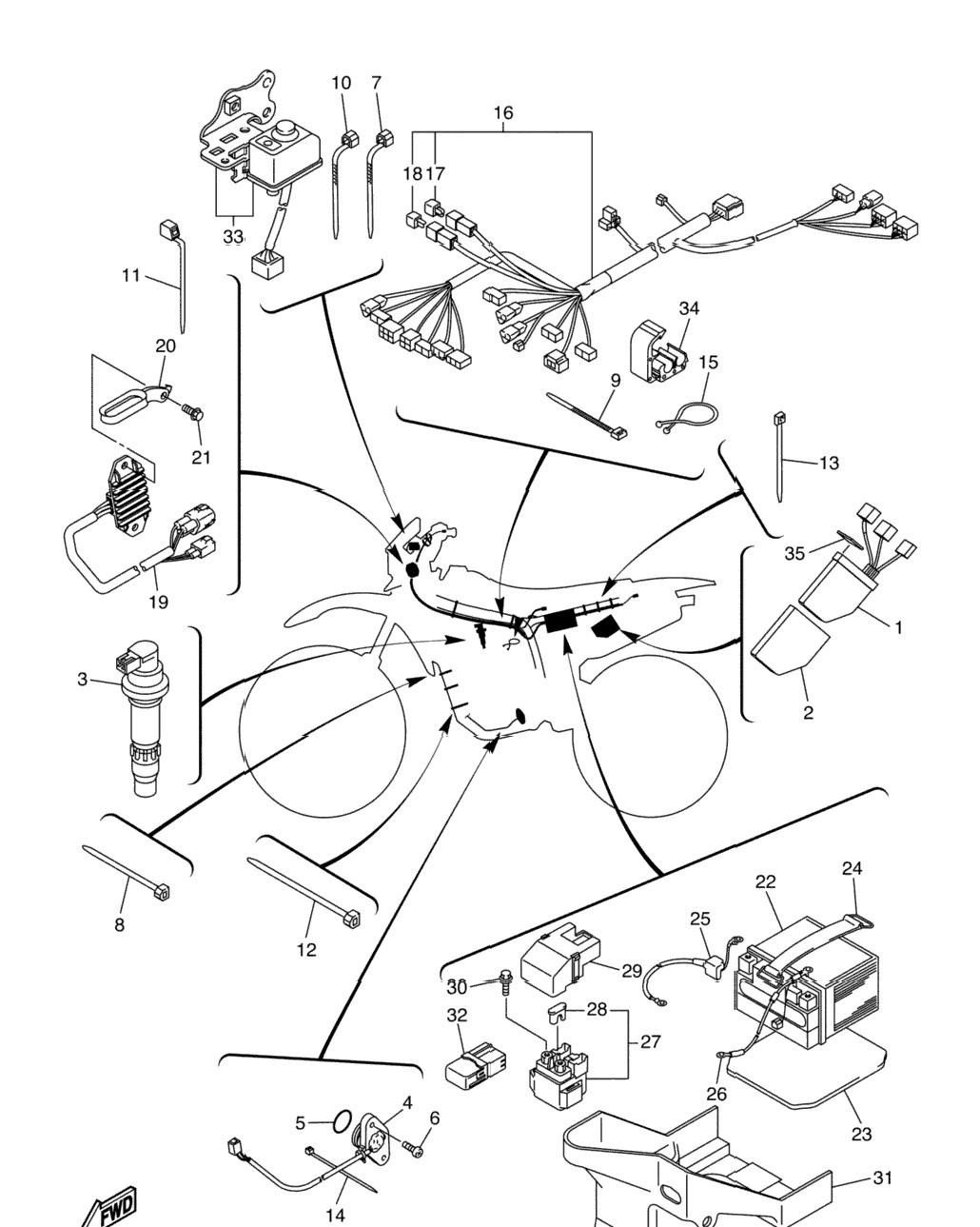

| 1 | 5UM-85540-E0-00 | C.D.I. Unit Assy | 1 шт. | — | |
|
| 2 | 5UM-85546-E0-00 | Band | 1 шт. | — | |
|
| 3 | 5UL-82310-10-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 4 | 5TJ-82540-01-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 5 | 93210-21001-00 | O-Ring | 1 шт. | — | |
|
| 6 | 90154-05022-00 | Screw, Binding | 2 шт. | — | |
|
| 7 | 90464-13077-00 | Clamp | 2 шт. | — | |
|
| 8 | 90464-15152-00 | Clamp | 3 шт. | — | |
|
| 9 | 90465-13275-00 | Clamp | 7 шт. | — | |
|
| 10 | 90464-13073-00 | Clamp | 3 шт. | — | |
|
| 11 | 90464-16061-00 | Clamp | 2 шт. | — | |
|
| 12 | 90464-15195-00 | Clamp | 1 шт. | — | |
|
| 13 | 90465-13152-00 | Clamp | 5 шт. | — | |
|
| 14 | 5Y9-12491-00-00 | Clamp 1 | 2 шт. | — | |
|
| 15 | 90464-23041-00 | Clamp | 1 шт. | — | |
|
| 16 | 5TJ-82590-E0-00 | Wire Harness Assy | 1 шт. | — | |
|
| 17 | 5TJ-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 18 | 4WA-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 19 | 5UM-81960-E0-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 20 | 5UM-21288-E0-00 | Guide, Cable | 1 шт. | — | |
|
| 21 | 90105-06110-00 | Bolt, Flange | 2 шт. | — | |
|
| 22 | 5TJ-82100-01-00 | Battery Assy (Ytz7s(F)) | 1 шт. | — | |
|
| 23 | 5UM-82176-E0-00 | Damper | 1 шт. | — | |
|
| 24 | 8CY-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 25 | 5TJ-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 26 | 5UM-82116-E0-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 27 | 5TJ-81940-12-00 | Starter Relay Assy (Rc19-042) | 1 шт. | — | |
|
| 28 | 42X-82151-00-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 29 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 30 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 31 | 5UM-81952-E0-00 | Holder, Relay | 1 шт. | — | |
|
| 32 | 5UM-81950-E0-00 | Relay Assy (5Um-E0) | 1 шт. | — | |
|
| 33 | 5UM-82510-E1-00 | Main Switch Assy | 1 шт. | — | |
|
| 34 | 90464-06004-00 | Clamp | 1 шт. | — | |
|
| 35 | 5UM-8235Y-E0-00 | Damper | 1 шт. | — | |
|
