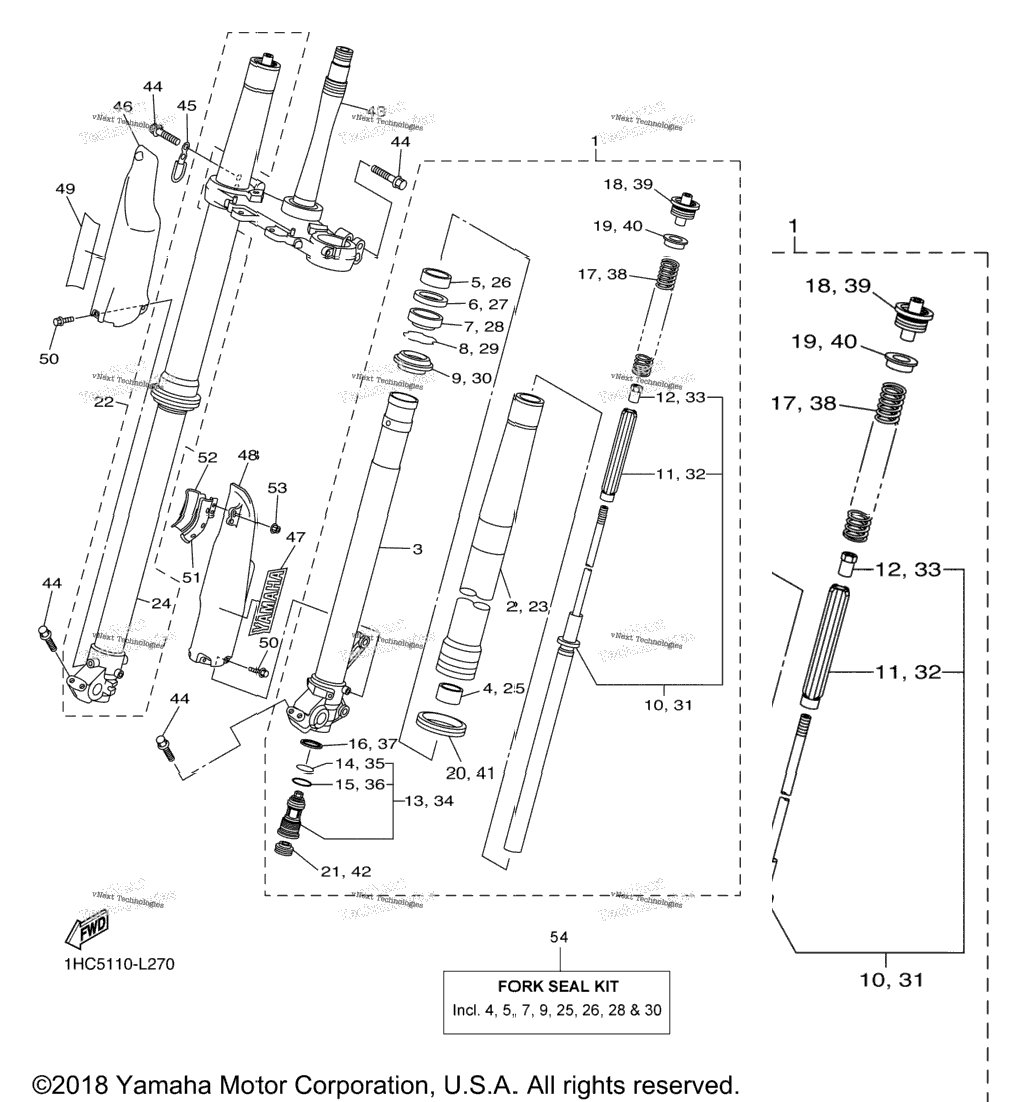

| 1 | 5UM-23102-E2-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 5TJ-23136-C0-00 | . .Tube, Outer | 1 шт. | — | |
|
| 3 | 5TJ-23120-C1-00 | . . Inner Tube Comp. 2 | 1 шт. | — | |
|
| 4 | 5XE-23171-L0-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 5 | 5XE-23125-L0-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 6 | 5XE-23146-L0-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 7 | 1C3-23145-L0-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 8 | 5XE-23153-L0-00 | . Ring, Snap | 1 шт. | — | |
|
| 9 | 5XE-23144-L0-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 10 | 5UM-23170-E0-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 11 | 5XE-23142-L0-00 | . . ..Seat, Spring Upper | 1 шт. | — | |
|
| 12 | 5XE-23393-L0-00 | . . ..Nut, Special | 1 шт. | — | |
|
| 13 | 5TJ-2316A-E0-00 | . .Valve Comp | 1 шт. | — | |
|
| 14 | 5NY-23188-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 15 | 5NY-23147-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 16 | 4SS-23158-L0-00 | . .Gasket | 1 шт. | — | |
|
| 17 | 5TJ-23141-A0-00 | . . Spring,Front Fork (K=4.4N/M | 1 шт. | — | |
|
| 18 | 5XE-23111-L0-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 19 | 5XE-23117-L0-00 | . .Guide, Spring | 1 шт. | — | |
|
| 20 | 1C3-2314F-M0-00 | . .Protecter Guide Comp., 1 | 1 шт. | — | |
|
| 21 | 3JD-2312G-L0-00 | . .Plug, Hole | 1 шт. | — | |
|
| 22 | 5UM-23103-E2-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 23 | 5TJ-23136-C0-00 | . .Tube, Outer | 1 шт. | — | |
|
| 24 | 5TJ-23110-C1-00 | . .Inner Tube Comp.1 | 1 шт. | — | |
|
| 25 | 5XE-23171-L0-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 26 | 5XE-23125-L0-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 27 | 5XE-23146-L0-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 28 | 1C3-23145-L0-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 29 | 5XE-23153-L0-00 | . Ring, Snap | 1 шт. | — | |
|
| 30 | 5XE-23144-L0-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 31 | 5UM-23170-E0-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 32 | 5XE-23142-L0-00 | . . ..Seat, Spring Upper | 1 шт. | — | |
|
| 33 | 5XE-23393-L0-00 | . . ..Nut, Special | 1 шт. | — | |
|
| 34 | 5TJ-2316A-E0-00 | . .Valve Comp | 1 шт. | — | |
|
| 35 | 5NY-23188-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 36 | 5NY-23147-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 37 | 4SS-23158-L0-00 | . .Gasket | 1 шт. | — | |
|
| 38 | 5TJ-23141-A0-00 | . . Spring,Front Fork (K=4.4N/M | 1 шт. | — | |
|
| 39 | 5XE-23111-L0-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 40 | 5XE-23117-L0-00 | . .Guide, Spring | 1 шт. | — | |
|
| 41 | 1C3-2314F-M0-00 | . .Protecter Guide Comp., 1 | 1 шт. | — | |
|
| 42 | 3JD-2312G-L0-00 | . .Plug, Hole | 1 шт. | — | |
|
| 43 | 5UM-23340-L1-00 | Under Bracket Comp | 1 шт. | — | |
|
| 44 | 90105-08134-00 | Bolt, Flange | 8 шт. | — | |
|
| 45 | 5TJ-23525-C0-00 | Guide | 1 шт. | — | |
|
| 46 | 5TJ-2315J-C0-00 | Protector 2 | 1 шт. | — | |
|
| 47 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 48 | 1C3-2315H-10-00 | Protector 1 | 1 шт. | — | |
|
| 49 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 50 | 3SP-23356-L0-00 | Bolt 2 | 6 шт. | — | |
|
| 51 | 5XC-23466-L0-00 | Clamp | 1 шт. | — | |
|
| 52 | 5XC-23467-L0-00 | Clamp | 1 шт. | — | |
|
| 53 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 54 | 1C3-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
