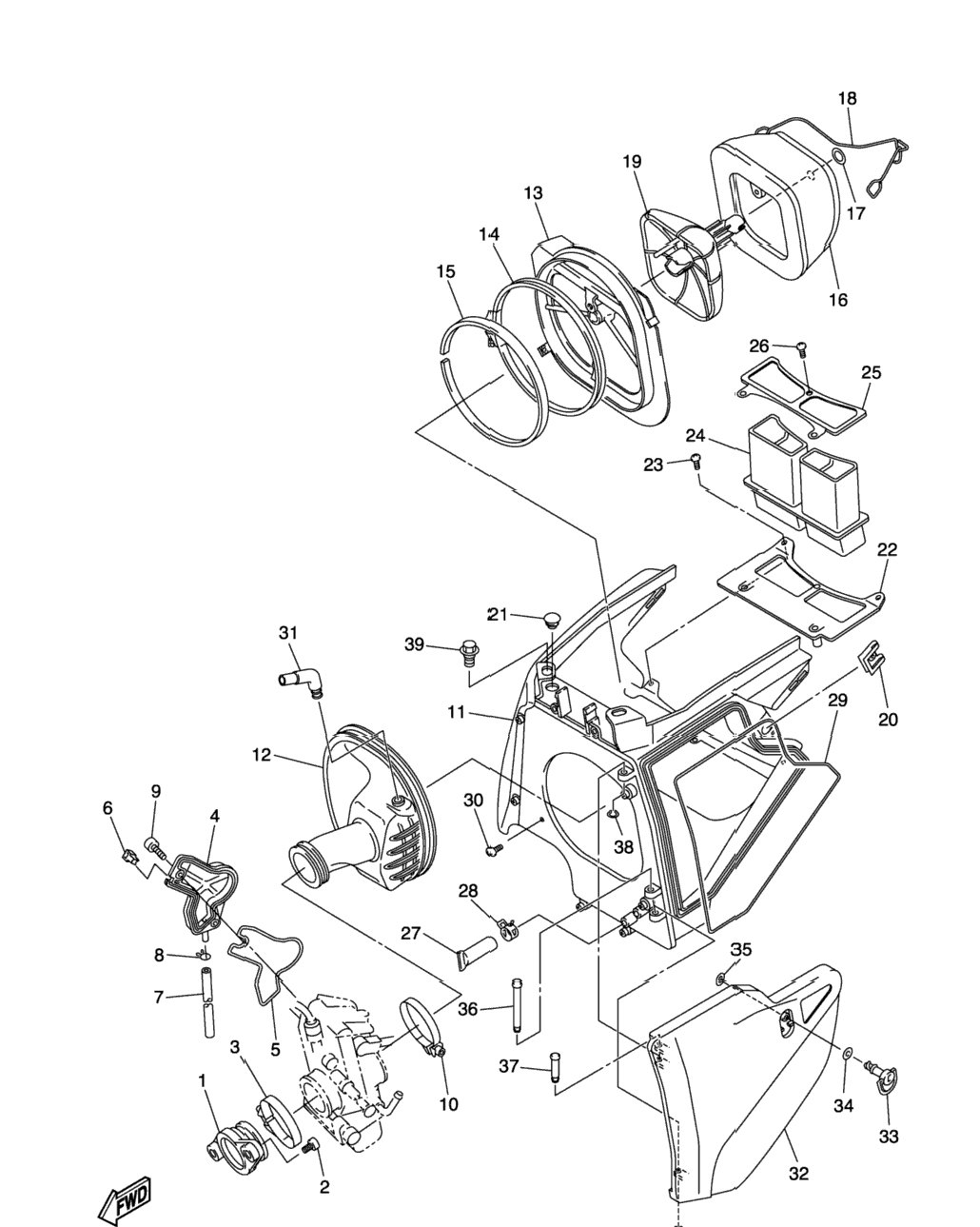

| 1 | 5XC-13597-30-00 | Joint, Carburetor 3 | 1 шт. | — | |
|
| 2 | 91312-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 3 | 90450-57010-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 4 | 5TA-14293-00-00 | Cover 1 | 1 шт. | — | |
|
| 5 | 5TA-14227-00-00 | Gasket | 1 шт. | — | |
|
| 6 | 5TA-14239-00-00 | Seal | 1 шт. | — | |
|
| 7 | 5TA-14987-00-00 | Hose | 1 шт. | — | |
|
| 8 | 3TJ-14137-40-00 | .Clip | 1 шт. | — | |
|
| 9 | 90110-05038-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 10 | 90450-61002-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 11 | 5UM-14401-E0-00 | Air Cleaner Case Assy | 1 шт. | — | |
|
| 12 | 5UM-14453-E0-00 | Joint, Air Cleaner 1 | 1 шт. | — | |
|
| 13 | 5TJ-14459-01-00 | Holder, Guide | 1 шт. | — | |
|
| 14 | 5NY-14455-20-00 | Band | 1 шт. | — | |
|
| 15 | 5NY-14442-00-00 | Spacer | 1 шт. | — | |
|
| 16 | 5UM-14451-E0-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 17 | 5TJ-14475-00-00 | Washer | 1 шт. | — | |
|
| 18 | 5UM-1441G-E0-00 | Binder 1 | 1 шт. | — | |
|
| 19 | 5TJ-14458-00-00 | Guide | 1 шт. | — | |
|
| 20 | 4XV-2177L-01-00 | Plate, Spring | 1 шт. | — | |
|
| 21 | 90338-07043-00 | Plug | 1 шт. | — | |
|
| 22 | 5UM-14437-E0-00 | Duct | 1 шт. | — | |
|
| 23 | 97702-50516-00 | Screw, Tapping | 2 шт. | — | |
|
| 24 | 5UM-1443A-E0-00 | Duct | 1 шт. | — | |
|
| 25 | 5UM-14417-E0-00 | Cover 1 | 1 шт. | — | |
|
| 26 | 97702-50516-00 | Screw, Tapping | 3 шт. | — | |
|
| 27 | 5BF-1443E-00-00 | Pipe, Drain | 1 шт. | — | |
|
| 28 | 90467-17089-00 | Clip | 1 шт. | — | |
|
| 29 | 5UM-14462-E0-00 | Seal | 1 шт. | — | |
|
| 30 | 97702-50516-00 | Screw, Tapping | 1 шт. | — | |
|
| 31 | 5TJ-14419-00-00 | Pipe | 1 шт. | — | |
|
| 32 | 5UM-1441A-E0-00 | Cover, Cleaner Case 1 | 1 шт. | — | |
|
| 33 | 3FV-28386-00-00 | Head | 1 шт. | — | |
|
| 34 | 2TK-21757-00-00 | Washer, Special 1 | 1 шт. | — | |
|
| 35 | 5TJ-21757-00-00 | Washer, Special 1 | 1 шт. | — | |
|
| 36 | 90249-05005-00 | Pin | 1 шт. | — | |
|
| 37 | 90249-05004-00 | Pin | 1 шт. | — | |
|
| 38 | 99002-04600-00 | .Circlip | 2 шт. | — | |
|
| 39 | 90109-06245-00 | Bolt | 2 шт. | — | |
|
