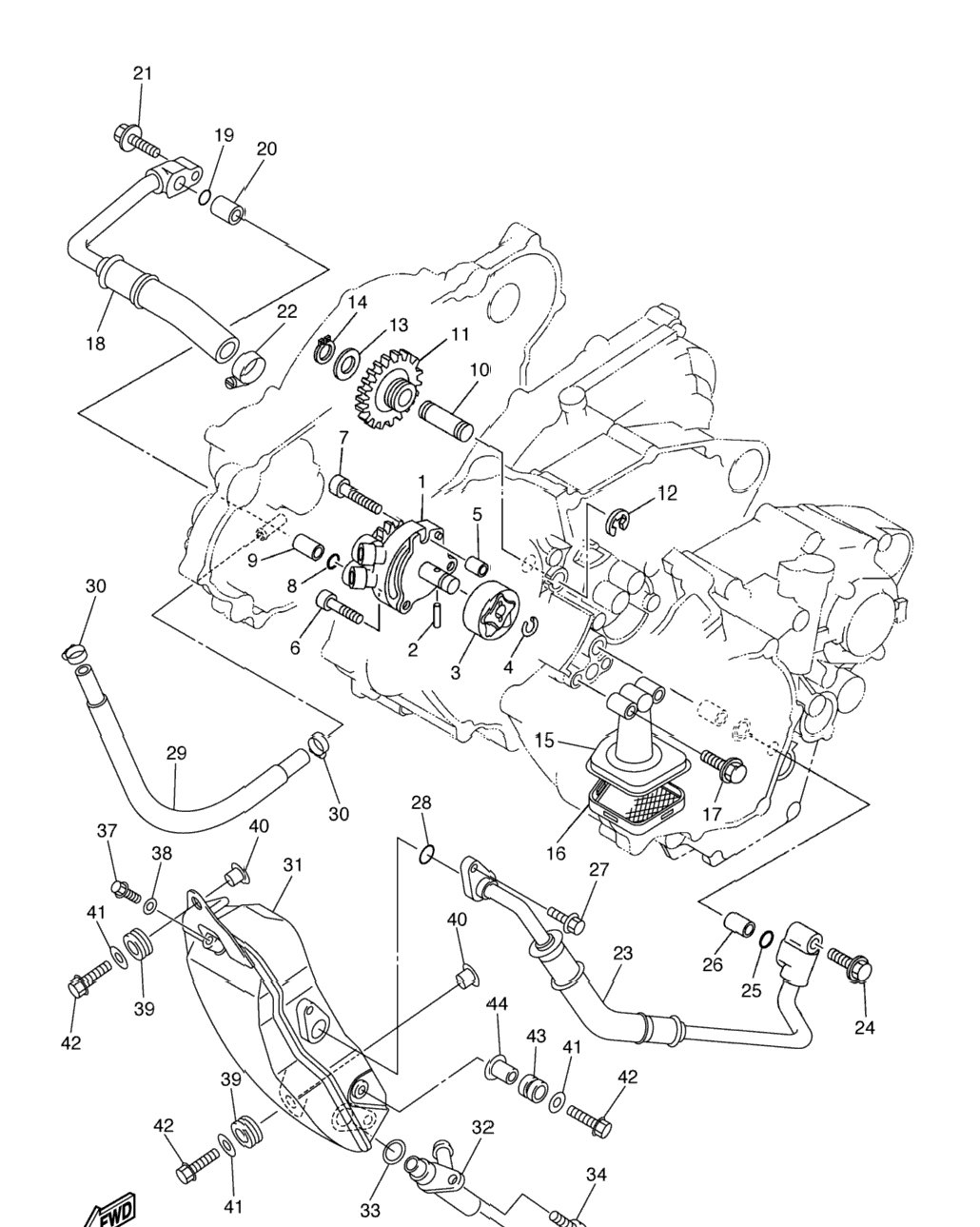

| 1 | 5SG-13300-01-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 93603-16219-00 | .Pin, Dowel | 1 шт. | — | |
|
| 3 | 5NL-13320-00-00 | Rotor Assy 2 | 1 шт. | — | |
|
| 4 | 93440-10153-00 | .Circlip | 1 шт. | — | |
|
| 5 | 99530-08012-00 | Pin, Dowel | 1 шт. | — | |
|
| 6 | 91312-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 7 | 91317-06030-00 | Bolt, Hex. Socket Head | 1 шт. | — | |
|
| 10 | 5BE-13342-00-00 | Shaft, Idle Gear | 1 шт. | — | |
|
| 11 | 5NL-13341-00-00 | Gear, Oil Pump Idle | 1 шт. | — | |
|
| 12 | 99001-08600-00 | Circlip | 1 шт. | — | |
|
| 13 | 90201-12166-00 | Washer, Plate | 1 шт. | — | |
|
| 14 | 99009-12400-00 | .Circlip | 1 шт. | — | |
|
| 15 | 5XC-13412-00-00 | Housing, Strainer | 1 шт. | — | |
|
| 16 | 5NL-13411-00-00 | Strainer, Oil | 1 шт. | — | |
|
| 18 | 5XC-13464-20-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 22 | 90450-22001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 23 | 5XC-13465-10-00 | Hose, Oil 2 | 1 шт. | — | |
|
| 24 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 95022-06025-00 | Bolt, Flange | 1 шт. | — | |
|
| 24 | 95022-06025-00 | Bolt, Flange | 1 шт. | — | |
|
| 25 | 93210-10197-00 | O-Ring | 1 шт. | — | |
|
| 25 | 93210-10197-00 | O-Ring | 1 шт. | — | |
|
| 25 | 93210-10197-00 | O-Ring | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 1 шт. | — | |
|
| 27 | 95022-06016-00 | Bolt, Flange | 1 шт. | — | |
|
| 28 | 93210-09754-00 | O-Ring | 1 шт. | — | |
|
| 29 | 90445-14010-00 | Hose | 1 шт. | — | |
|
| 30 | 90450-17001-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 31 | 5XC-21751-90-00 | Tank, Oil | 1 шт. | — | |
|
| 32 | 5XC-13416-90-00 | Pipe, Oil 1 | 1 шт. | — | |
|
| 33 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 34 | 91312-06016-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 35 | 90105-08151-00 | .Bolt, Flange | 1 шт. | — | |
|
| 36 | 90201-082A6-00 | Washer, Plate | 1 шт. | — | |
|
| 37 | 90105-06128-00 | Bolt, Flange | 1 шт. | — | |
|
| 38 | 90201-06630-00 | Washer, Plate | 1 шт. | — | |
|
| 39 | 90480-10289-00 | Grommet | 2 шт. | — | |
|
| 40 | 90387-06150-00 | Collar | 2 шт. | — | |
|
| 41 | 90201-06571-00 | Washer, Plate | 3 шт. | — | |
|
| 42 | 90105-06112-00 | Bolt, Flange | 3 шт. | — | |
|
| 43 | 90480-14433-00 | Grommet | 1 шт. | — | |
|
| 44 | 90387-06161-00 | Collar | 1 шт. | — | |
|
