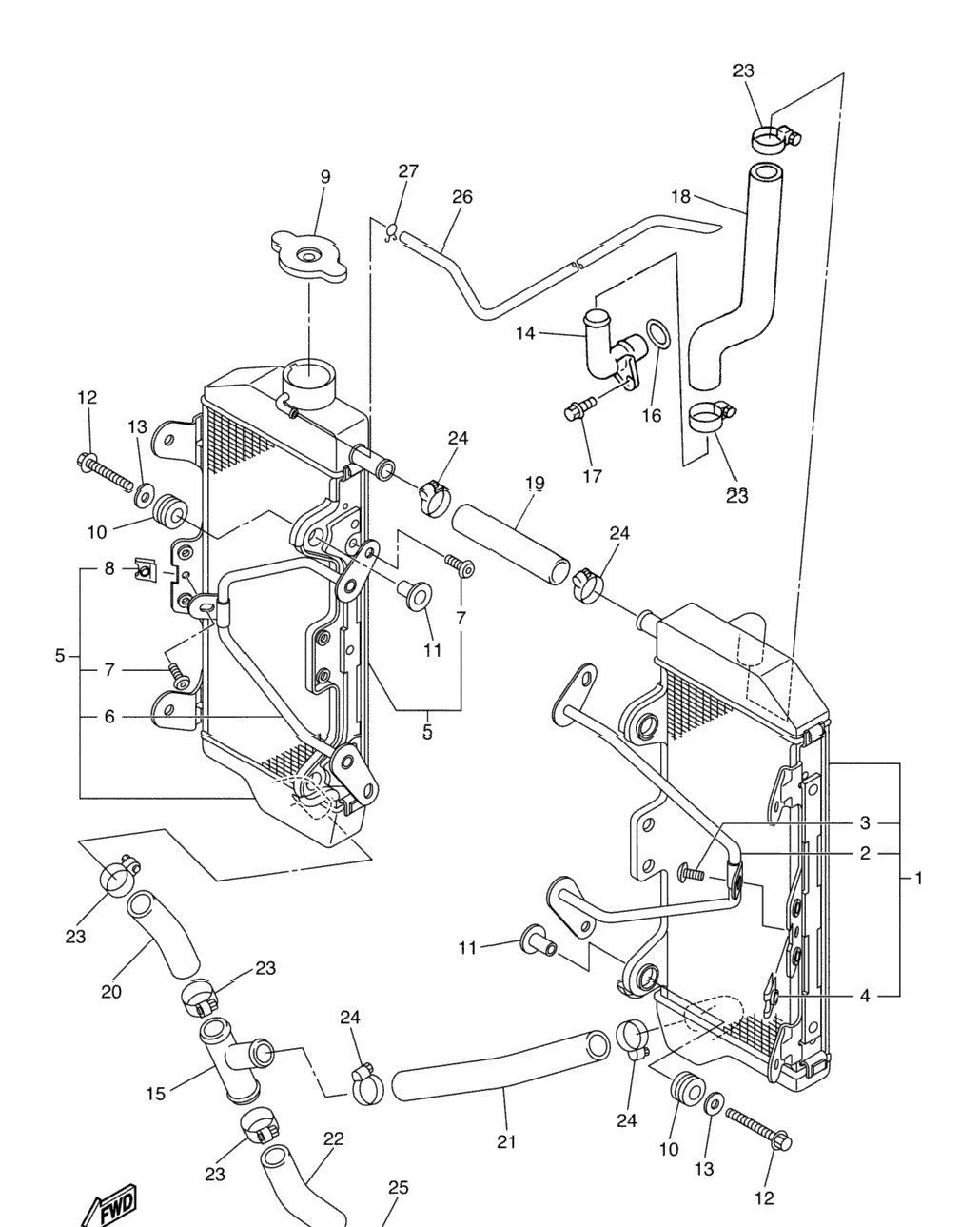

| 1 | 5UM-1240A-E0-00 | Radiator Assy | 1 шт. | — | |
|
| 2 | 2S2-12464-70-00 | . .Stay, Radiator | 1 шт. | — | |
|
| 3 | 92012-06010-00 | . Bolt, Button Head | 3 шт. | — | |
|
| 4 | 90183-060A6-00 | . Nut, Spring | 1 шт. | — | |
|
| 5 | 5UM-12461-E0-00 | Radiator Comp | 1 шт. | — | |
|
| 6 | 2S2-12464-70-00 | . .Stay, Radiator | 1 шт. | — | |
|
| 7 | 92012-06010-00 | . Bolt, Button Head | 3 шт. | — | |
|
| 8 | 90183-060A6-00 | . Nut, Spring | 1 шт. | — | |
|
| 9 | 22W-12462-00-00 | Cap, Radiator | 1 шт. | — | |
|
| 10 | 90480-15528-00 | Grommet | 4 шт. | — | |
|
| 11 | 90387-06065-00 | Collar | 4 шт. | — | |
|
| 12 | 90105-06111-00 | Bolt, Flange | 4 шт. | — | |
|
| 13 | 90201-06571-00 | Washer, Plate | 4 шт. | — | |
|
| 14 | 5XC-12481-90-00 | Pipe 1 | 1 шт. | — | |
|
| 15 | 5XC-12482-90-00 | Pipe 2 | 1 шт. | — | |
|
| 16 | 93210-15414-00 | O-Ring | 1 шт. | — | |
|
| 17 | 91312-06012-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 18 | 5XC-12576-90-00 | Hose 1 | 1 шт. | — | |
|
| 19 | 1C3-12482-00-00 | Pipe 2 | 1 шт. | — | |
|
| 20 | 5XC-12578-90-00 | Hose 3 | 1 шт. | — | |
|
| 21 | 5XC-12579-91-00 | Hose 4 | 1 шт. | — | |
|
| 22 | 5XC-1244H-90-00 | Hose 5 | 1 шт. | — | |
|
| 23 | 90450-25001-00 | Hose Clamp Assy | 5 шт. | — | |
|
| 24 | 90450-22001-00 | Hose Clamp Assy | 4 шт. | — | |
|
| 25 | 90450-32003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 26 | 91A20-05140-00 | Tube, Flexible Vinyl | 1 шт. | — | |
|
| 27 | 90467-090A2-00 | Clip | 1 шт. | — | |
|
