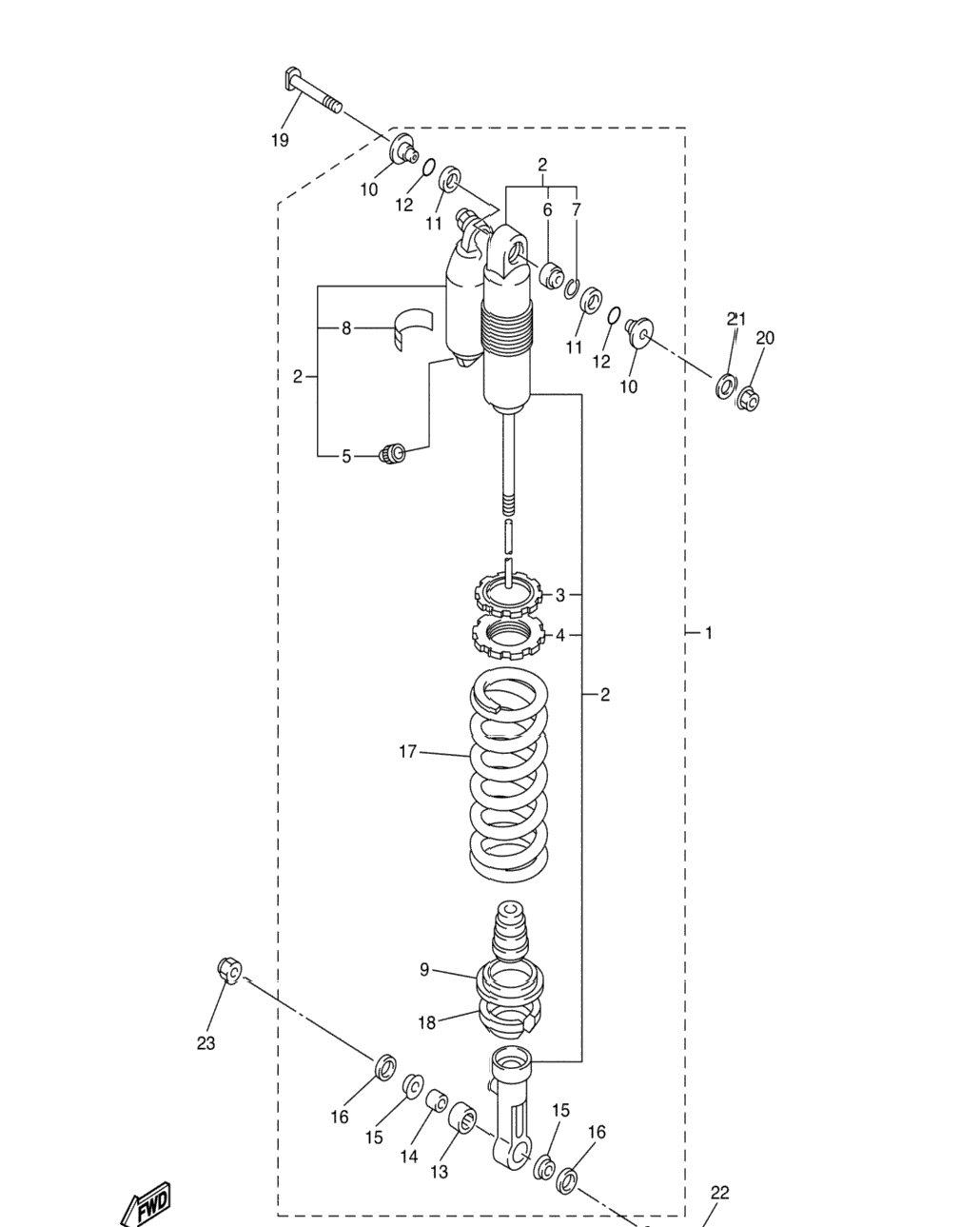

| 1 | 5UM-22210-E1-00 | Shock Absorber Assy, Rear | 1 шт. | — | |
|
| 2 | 5UM-22201-E0-00 | . .Damper Sub Assy | 1 шт. | — | |
|
| 3 | 3SP-22234-00-00 | . . ..Guide, Spring 3 | 1 шт. | — | |
|
| 4 | 3SP-22213-00-00 | . . ..Seat, Spring Upper | 1 шт. | — | |
|
| 5 | 509-23184-L0-00 | . . ..Cap, Air Valve | 1 шт. | — | |
|
| 6 | 4JX-22226-00-00 | . . Bush, Shock Absorber Lower | 1 шт. | — | |
|
| 7 | 5DH-23183-00-00 | . . Circlip | 1 шт. | — | |
|
| 8 | 4AA-22259-80-00 | . . .Label, Warning | 1 шт. | — | |
|
| 9 | 5MV-22224-00-00 | . .Guide, Spring 2 | 1 шт. | — | |
|
| 10 | 1C3-22253-50-00 | . Collar, Distance | 2 шт. | — | |
|
| 11 | 3JE-22475-00-00 | . Seal, Dust | 2 шт. | — | |
|
| 12 | 4EW-22474-00-00 | . Seal, Ring | 2 шт. | — | |
|
| 13 | 5UN-22176-00-00 | . Bearing | 1 шт. | — | |
|
| 14 | 5MV-22184-00-00 | . Bush | 1 шт. | — | |
|
| 15 | 5MV-22253-00-00 | . Collar, Distance | 2 шт. | — | |
|
| 16 | 5NY-22475-00-00 | . Seal, Dust | 2 шт. | — | |
|
| 17 | 5UN-22212-50-00 | . Spring (K=52N/Mm) | 1 шт. | — | |
|
| 18 | 5XE-22214-00-00 | . .Guide, Spring 1 | 1 шт. | — | |
|
| 19 | 5XE-22242-00-00 | Bolt 2 | 1 шт. | — | |
|
| 20 | 95602-10200-00 | Nut, S/L Flange | 1 шт. | — | |
|
| 21 | 92902-10200-00 | Washer | 1 шт. | — | |
|
| 22 | 5NY-22241-00-00 | Bolt 1 | 1 шт. | — | |
|
| 23 | 90185-10012-00 | Nut, Self-Locking | 1 шт. | — | |
|
