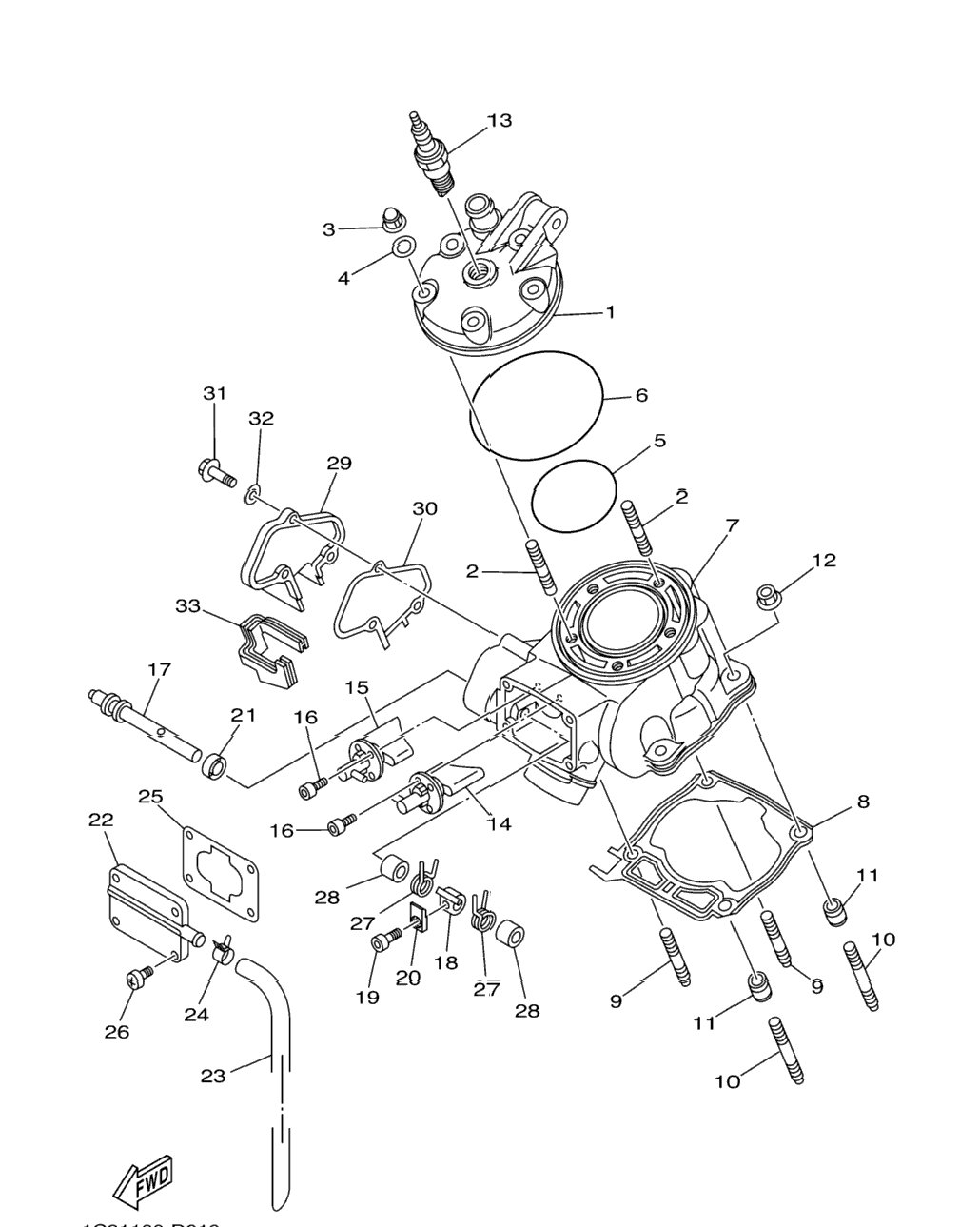

| 1 | 1C3-11111-10-00 | Head, Cylinder 1 | 1 шт. | — | |
|
| 2 | 90116-08027-00 | Bolt, Stud | 5 шт. | — | |
|
| 3 | 90176-08005-00 | Nut, Crown | 5 шт. | — | |
|
| 4 | 90201-080L8-00 | Washer, Plate INCL. IN TOP END GASKET KIT | 5 шт. | — | |
|
| 5 | 93210-63442-00 | O-Ring INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 6 | 93210-90785-00 | O-Ring INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 7 | 1C3-11311-20-00 | Cylinder 1 | 1 шт. | — | |
|
| 8 | 1C3-11351-00-00 | Gasket, Cylinder INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 9 | 90116-08031-00 | Bolt, Stud | 2 шт. | — | |
|
| 10 | 90116-08028-00 | Bolt, Stud | 2 шт. | — | |
|
| 11 | 99590-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 12 | 90179-08019-00 | Nut | 4 шт. | — | |
|
| 13 | 94702-00193-00 | Plug, Spark (Ngk Br9evx) | 1 шт. | — | |
|
| 14 | 1C3-1131D-00-00 | Valve Assy | 1 шт. | — | |
|
| 15 | 1C3-1132D-00-00 | Valve Assy 2 | 1 шт. | — | |
|
| 16 | 91312-05012-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 17 | 5HD-1131V-00-00 | Shaft 1 | 1 шт. | — | |
|
| 18 | 4SS-11832-00-00 | Lever, Link | 1 шт. | — | |
|
| 19 | 91312-04010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 20 | 5UN-11395-00-00 | Holder | 1 шт. | — | |
|
| 21 | 93104-08040-00 | Oil Seal | 1 шт. | — | |
|
| 22 | 4SS-1131M-01-00 | Cover | 1 шт. | — | |
|
| 23 | 4JY-11166-00-00 | Pipe, Breather 1 | 1 шт. | — | |
|
| 24 | 90467-13062-00 | .Clip | 1 шт. | — | |
|
| 25 | 1C3-11354-00-00 | Gasket INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 26 | 98902-05016-00 | Screw, Bind | 4 шт. | — | |
|
| 27 | 90508-16134-00 | Spring, Torsion | 2 шт. | — | |
|
| 28 | 90387-08785-00 | Collar | 2 шт. | — | |
|
| 29 | 1C3-11992-00-00 | Housing 2 | 1 шт. | — | |
|
| 30 | 1C3-11993-00-00 | Gasket INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 31 | 97002-05016-00 | Bolt | 3 шт. | — | |
|
| 32 | 92902-05600-00 | Washer, Plate | 3 шт. | — | |
|
| 33 | 1C3-11995-00-00 | Seal, Housing | 1 шт. | — | |
|
| 34 | 1C3-W0001-00-00 | Top End Gasket Kit NOT SHOWN | 1 шт. | — | |
|
