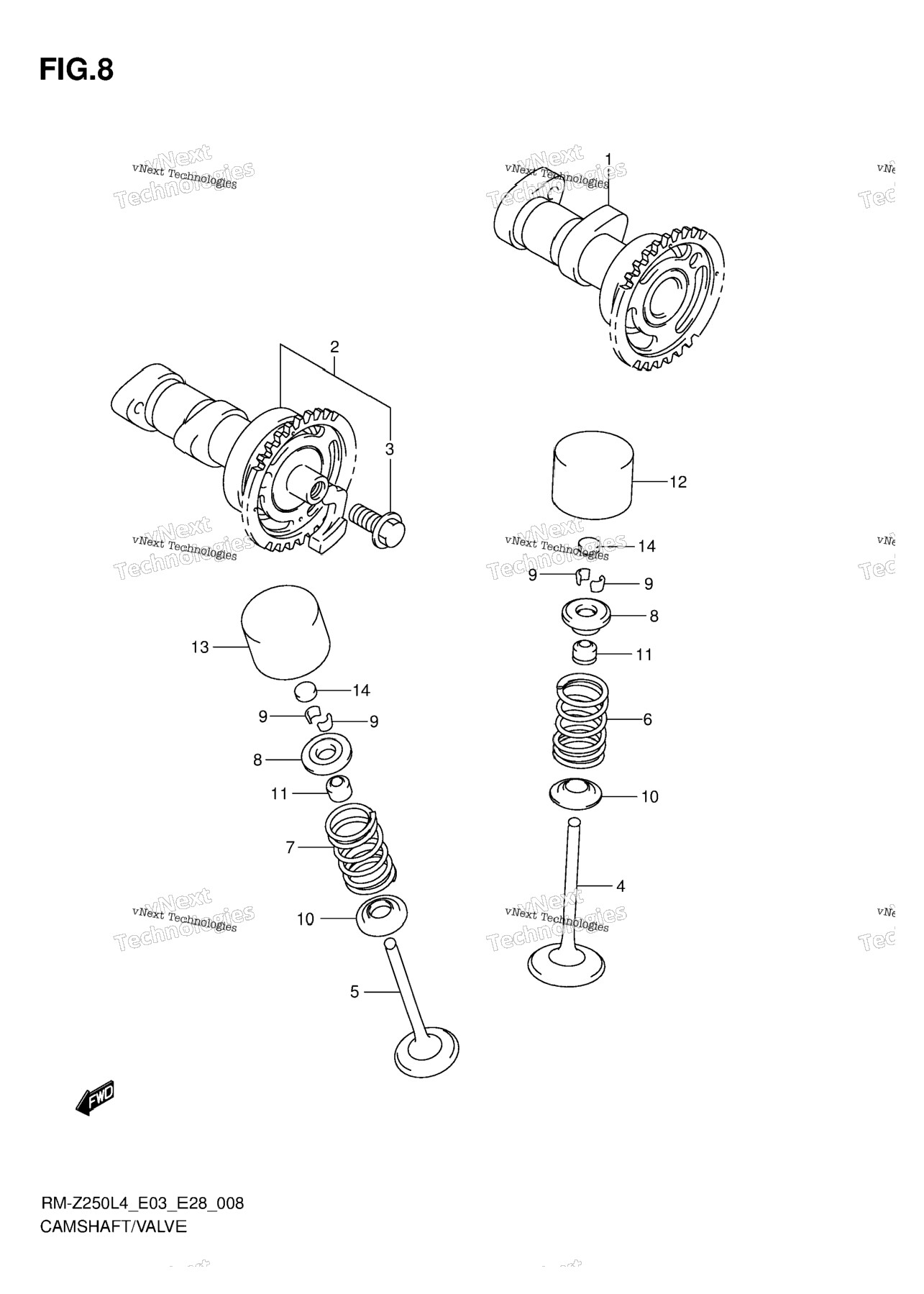

| 1 | 12710-49H30 | CAM SHAFT, INTAKE | 1 шт. | — | |
|
| 2 | 12720-49H20 | CAM SHAFT, EXHAUST (NT:32) | 1 шт. | — | |
|
| 3 | 09116-06001 | BOLT (6X12) | 0 шт. | — | |
|
| 4 | 12911-49H00 | VALVE, INTAKE | 2 шт. | — | |
|
| 5 | 12912-10H00 | VALVE, EXHAUST | 2 шт. | — | |
|
| 6 | 12921-02H01 | SPRING, INTAKE | 2 шт. | — | |
|
| 7 | 12921-41G00 | SPRING, EXHAUST | 2 шт. | — | |
|
| 8 | 12931-29G00 | RETAINER, VALVE SPRING | 4 шт. | — | |
|
| 9 | 12932-32C00 | COTTER,VALVE | 8 шт. | — | |
|
| 10 | 12933-29G00 | SEAT, VALVE SPRING | 4 шт. | — | |
|
| 11 | 09289-04002 | OIL SEAL (4.5X10X8) | 4 шт. | — | |
|
| 12 | 12891-17E00 | TAPPET INTAKE | 2 шт. | — | |
|
| 13 | 12891-35F00 | TAPPET, EXHAUST | 2 шт. | — | |
|
| 14 | 12892-05C00-120 | SHIM,TAPPET (T:1.20) | 4 шт. | — | |
|
| 14 | 12892-05C00-122 | SHIM, TAPPET (T:1.225) | 4 шт. | — | |
|
| 14 | 12892-05C00-125 | SHIM,TAPPET (T:1.25) | 4 шт. | — | |
|
| 14 | 12892-05C00-128 | SHIM, TAPPET (T:1.275) | 4 шт. | — | |
|
| 14 | 12892-05C00-130 | SHIM,TAPPET (T:1.30) | 4 шт. | — | |
|
| 14 | 12892-05C00-132 | SHIM, TAPPET (T:1.325) | 0 шт. | — | |
|
| 14 | 12892-05C00-135 | SHIM,TAPPET (T:1.35) | 4 шт. | — | |
|
| 14 | 12892-05C00-138 | SHIM, TAPPET (T:1.375) | 0 шт. | — | |
|
| 14 | 12892-05C00-140 | SHIM,TAPPET (T:1.40) | 4 шт. | — | |
|
| 14 | 12892-05C00-142 | SHIM, TAPPET (T:1.425) | 4 шт. | — | |
|
| 14 | 12892-05C00-145 | SHIM,TAPPET (T:1.45) | 4 шт. | — | |
|
| 14 | 12892-05C00-148 | SHIM, TAPPET (T:1.475) | 4 шт. | — | |
|
| 14 | 12892-05C00-150 | SHIM,TAPPET (T:1.50) | 4 шт. | — | |
|
| 14 | 12892-05C00-152 | SHIM, TAPPET (T:1.525) | 4 шт. | — | |
|
| 14 | 12892-05C00-155 | SHIM,TAPPET (T:1.55) | 4 шт. | — | |
|
| 14 | 12892-05C00-158 | SHIM, TAPPET (T:1.575) | 4 шт. | — | |
|
| 14 | 12892-05C00-160 | SHIM,TAPPET (T:1.60) | 4 шт. | — | |
|
| 14 | 12892-05C00-162 | SHIM, TAPPET (T:1.625) | 4 шт. | — | |
|
| 14 | 12892-05C00-165 | SHIM,TAPPET (T:1.65) | 4 шт. | — | |
|
| 14 | 12892-05C00-168 | SHIM, TAPPET (T:1.675) | 4 шт. | — | |
|
| 14 | 12892-05C00-170 | SHIM,TAPPET (T:1.70) | 4 шт. | — | |
|
| 14 | 12892-05C00-172 | SHIM, TAPPET (T:1.725) | 4 шт. | — | |
|
| 14 | 12892-05C00-175 | SHIM,TAPPET (T:1.75) | 4 шт. | — | |
|
| 14 | 12892-05C00-178 | SHIM, TAPPET (T:1.775) | 4 шт. | — | |
|
| 14 | 12892-05C00-180 | SHIM,TAPPET (T:1.80) | 4 шт. | — | |
|
| 14 | 12892-05C00-182 | SHIM, TAPPET (T:1.825) | 4 шт. | — | |
|
| 14 | 12892-05C00-185 | SHIM,TAPPET (T:1.85) | 4 шт. | — | |
|
| 14 | 12892-05C00-188 | SHIM, TAPPET (T:1.875) | 4 шт. | — | |
|
| 14 | 12892-05C00-190 | SHIM,TAPPET (T:1.90) | 4 шт. | — | |
|
| 14 | 12892-05C00-192 | SHIM, TAPPET (T:1.925) | 4 шт. | — | |
|
| 14 | 12892-05C00-195 | SHIM,TAPPET (T:1.95) | 4 шт. | — | |
|
| 14 | 12892-05C00-198 | SHIM, TAPPET (T:1.975) | 4 шт. | — | |
|
| 14 | 12892-05C00-200 | SHIM,TAPPET (T:2.00) | 4 шт. | — | |
|
| 14 | 12892-05C00-202 | SHIM, TAPPET (T:2.025) | 4 шт. | — | |
|
| 14 | 12892-05C00-205 | SHIM,TAPPET (T:2.05) | 4 шт. | — | |
|
| 14 | 12892-05C00-208 | SHIM, TAPPET (T:2.075) | 4 шт. | — | |
|
| 14 | 12892-05C00-210 | SHIM,TAPPET (T:2.10) | 4 шт. | — | |
|
| 14 | 12892-05C00-212 | SHIM, TAPPET (T:2.125) | 0 шт. | — | |
|
| 14 | 12892-05C00-215 | SHIM,TAPPET (T:2.15) | 4 шт. | — | |
|
| 14 | 12892-05C00-218 | SHIM, TAPPET (T:2.175) | 4 шт. | — | |
|
| 14 | 12892-05C00-220 | SHIM,TAPPET (T:2.20) | 4 шт. | — | |
|
| 15 | 12800-05850 | SHIM SET, TAPPET T1.20, 1.55...2.20, 2.20 (5PCS.EACH) & CASE OPT NOT ILLUSTRATED | 0 шт. | — | |
|
| 16 | 99000-69491 | .CASE,TAPPET SHIM OPT NOT ILLUSTRATED | 1 шт. | — | |
|
