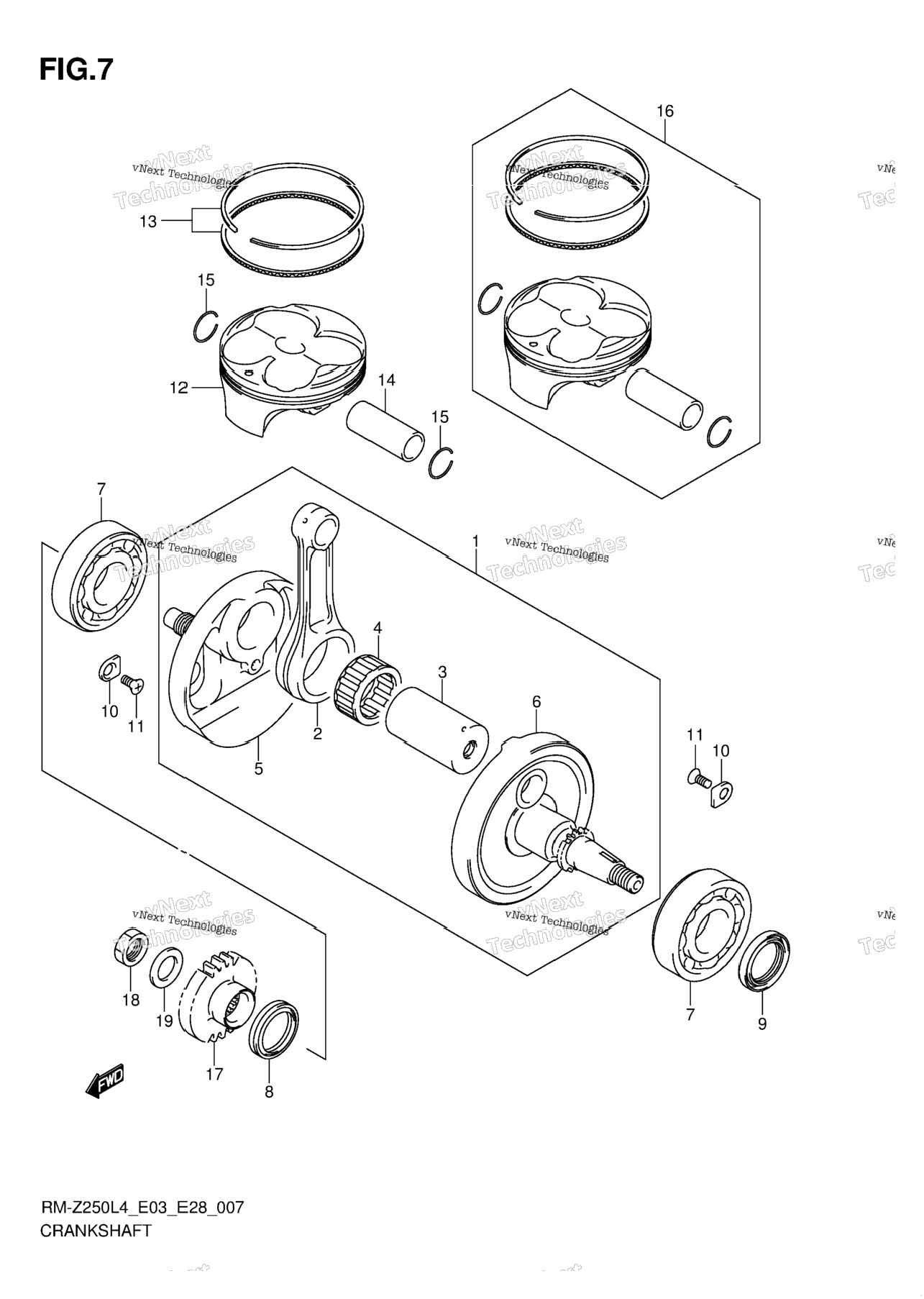

| 1 | 12200-49H10 | CRANKSHAFT ASSY | 1 шт. | — | |
|
| 2 | 12161-49H00-0B0 | ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12210-49H00 | PIN | 1 шт. | — | |
|
| 4 | 09263-30060-0B0 | BEARING (30X38X18) | 1 шт. | — | |
|
| 5 | 12220-49H00 | CRANKSHAFT, RH | 1 шт. | — | |
|
| 6 | 12261-49H00 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 7 | 09262-30122 | BEARING (30X63X16) | 2 шт. | — | |
|
| 8 | 09283-30061 | OIL SEAL (30X40X7) RH | 1 шт. | — | |
|
| 9 | 09283-30069 | OIL SEAL (30X40X6) LH | 1 шт. | — | |
|
| 10 | 24741-37F00 | RETAINER | 4 шт. | — | |
|
| 11 | 09126-06011 | SCREW (6X12) | 4 шт. | — | |
|
| 12 | 12111-49H10-0F0 | PISTON | 1 шт. | — | |
|
| 13 | 12140-10810 | RING SET, PISTON | 1 шт. | — | |
|
| 14 | 12151-49H00 | PIN, PISTON | 1 шт. | — | |
|
| 15 | 09381-16001 | CIRCLIP | 2 шт. | — | |
|
| 16 | 12110-49820 | PISTON KIT OPT | 1 шт. | — | |
|
| 17 | 21111-49H00 | GEAR, PRIMARY DRIVE (NT:19) | 1 шт. | — | |
|
| 18 | 09140-16037 | NUT | 1 шт. | — | |
|
| 19 | 09164-16002 | WASHER | 1 шт. | — | |
|
