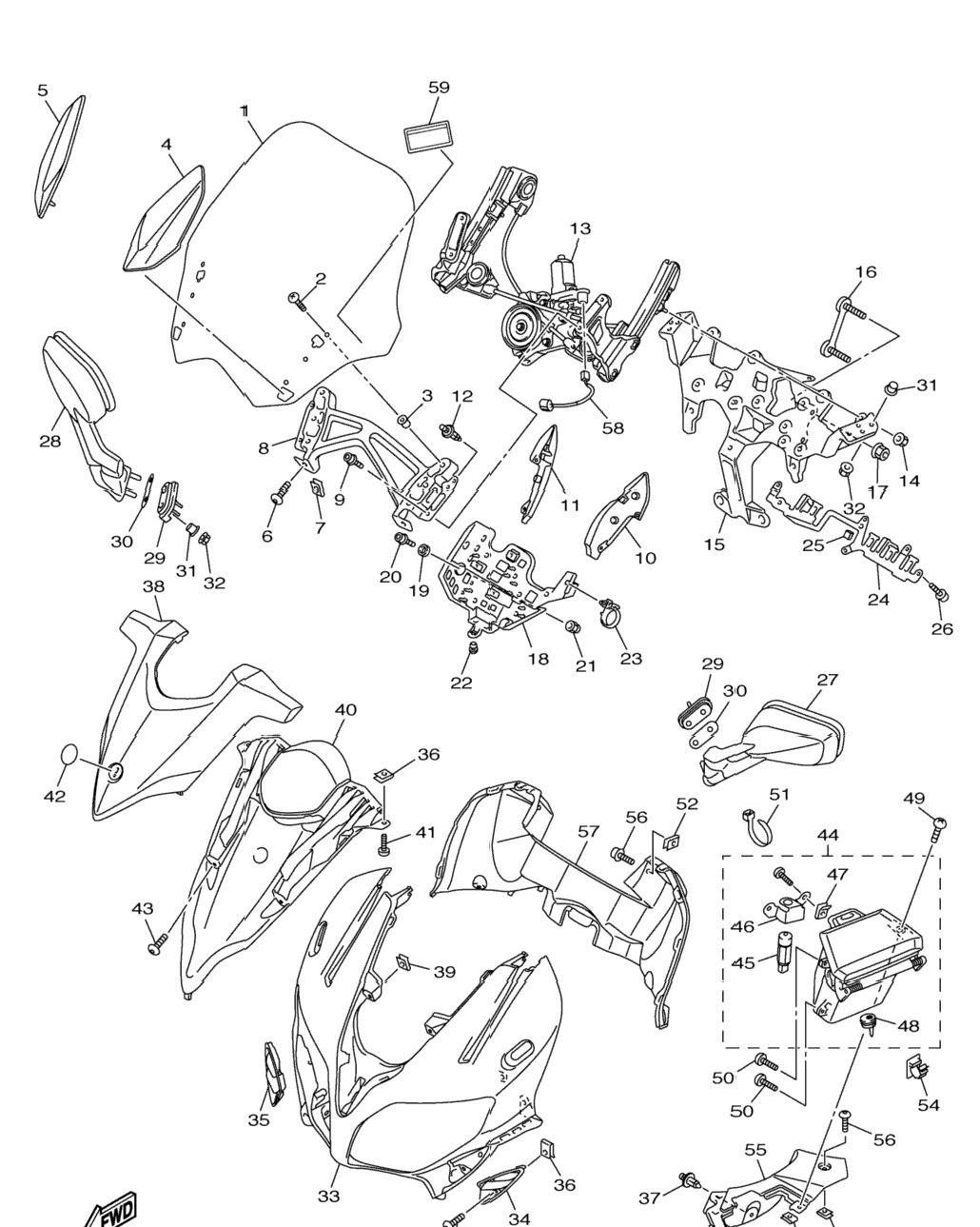

| 1 | 1MC-28381-00-00 | Windshield | 1 шт. | — | |
|
| 2 | 90150-05024-00 | Screw, Round Head | 6 шт. | — | |
|
| 3 | 90179-05523-00 | Nut | 6 шт. | — | |
|
| 4 | 1MC-2842A-00-P5 | Cover 5 DRMK | 1 шт. | — | |
|
| 5 | 1MC-2843C-00-P5 | Cover 6 DRMK | 1 шт. | — | |
|
| 6 | 92012-05012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 7 | 90183-050A7-00 | Nut, Spring | 2 шт. | — | |
|
| 8 | 1MC-28322-00-00 | Stay 2 | 1 шт. | — | |
|
| 9 | 90109-060E9-00 | .Bolt | 4 шт. | — | |
|
| 10 | 1MC-2843J-00-00 | Cover 3 | 1 шт. | — | |
|
| 11 | 1MC-2844J-00-00 | Cover 4 | 1 шт. | — | |
|
| 12 | 90269-05005-00 | .Rivet | 4 шт. | — | |
|
| 13 | 1MC-83306-00-00 | Drive Unit Assy | 1 шт. | — | |
|
| 15 | 1MC-28356-01-00 | Stay 1 | 1 шт. | — | |
|
| 16 | 5JW-28336-00-00 | Plate | 1 шт. | — | |
|
| 17 | 95707-10500-00 | Nut, Flange | 2 шт. | — | |
|
| 18 | 1MC-2838K-00-00 | Box 1 | 1 шт. | — | |
|
| 19 | 90387-06106-00 | Collar | 2 шт. | — | |
|
| 20 | 90110-06245-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 21 | 95304-06800-00 | Nut, Crown | 2 шт. | — | |
|
| 22 | 90338-06018-00 | Plug | 1 шт. | — | |
|
| 23 | 90464-36006-00 | Clamp | 1 шт. | — | |
|
| 24 | 1MC-28366-00-00 | Bracket | 1 шт. | — | |
|
| 25 | 1MC-2834E-00-00 | Damper 3 | 1 шт. | — | |
|
| 26 | 91312-06014-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 27 | 3P6-26280-10-P4 | Rear View Mirror Assy (Left) DRMK | 1 шт. | — | |
|
| 28 | 3P6-26290-10-P4 | Rear View Mirror Assy (Right) DRMK | 1 шт. | — | |
|
| 29 | 5JW-26298-00-00 | Plate, Mirror Fitting 1 | 2 шт. | — | |
|
| 30 | 3P6-26299-00-00 | Plate, Mirror Fitting 2 | 2 шт. | — | |
|
| 31 | 90387-0602X-00 | Collar | 4 шт. | — | |
|
| 32 | 95702-06500-00 | Nut, Flange | 4 шт. | — | |
|
| 32 | 95702-06500-00 | Nut, Flange | 9 шт. | — | |
|
| 33 | 1MC-2835G-00-P3 | Body, Front Upper 1 DRMK | 1 шт. | — | |
|
| 34 | 1MC-2837N-00-00 | Grill, Air Intake 1 | 1 шт. | — | |
|
| 35 | 1MC-2837R-00-00 | Grill, Air Intake 2 | 1 шт. | — | |
|
| 37 | 90269-06008-00 | Rivet | 3 шт. | — | |
|
| 38 | 1MC-28351-00-P4 | Body, Cowling MBL2 | 1 шт. | — | |
|
| 39 | 90183-05042-00 | Nut, Spring | 2 шт. | — | |
|
| 39 | 90183-05042-00 | Nut, Spring | 4 шт. | — | |
|
| 40 | 1MC-2838N-00-00 | Duct 1 | 1 шт. | — | |
|
| 42 | 8GC-2836B-02-00 | Tuning Fork Mark | 1 шт. | — | |
|
| 44 | 3P6-2830N-00-PC | Box Sub Assy MBL2 | 1 шт. | — | |
|
| 45 | 5VS-28470-00-00 | . .Lock Assy | 1 шт. | — | |
|
| 46 | 5VS-28367-00-00 | . .Bracket | 1 шт. | — | |
|
| 47 | 90183-051A0-00 | . .Nut, Spring | 2 шт. | — | |
|
| 48 | 3P6-28187-00-00 | . .Grommet | 1 шт. | — | |
|
| 49 | 90154-05007-00 | Screw, Binding | 1 шт. | — | |
|
| 50 | 97702-50016-00 | Screw,Tapping | 2 шт. | — | |
|
| 50 | 97702-50016-00 | Screw,Tapping | 2 шт. | — | |
|
| 51 | 90464-16019-00 | Clamp | 1 шт. | — | |
|
| 52 | 90183-05076-00 | Nut, Spring | 5 шт. | — | |
|
| 53 | 90167-05080-00 | Screw, Tapping | 2 шт. | — | |
|
| 53 | 90167-05080-00 | Screw, Tapping | 2 шт. | — | |
|
| 54 | 90464-54086-00 | Clamp | 1 шт. | — | |
|
| 55 | 1MC-28365-00-00 | Cover | 1 шт. | — | |
|
| 56 | 90111-05021-00 | Bolt,Hex. Socket Button | 3 шт. | — | |
|
| 57 | 1MC-2837L-00-00 | Panel, Console 1 | 1 шт. | — | |
|
| 58 | 1MC-82507-00-00 | Wire, Lead | 1 шт. | — | |
|
| 59 | 4B5-2815K-00-00 | Label, Notice Windshield 1 | 1 шт. | — | |
|
