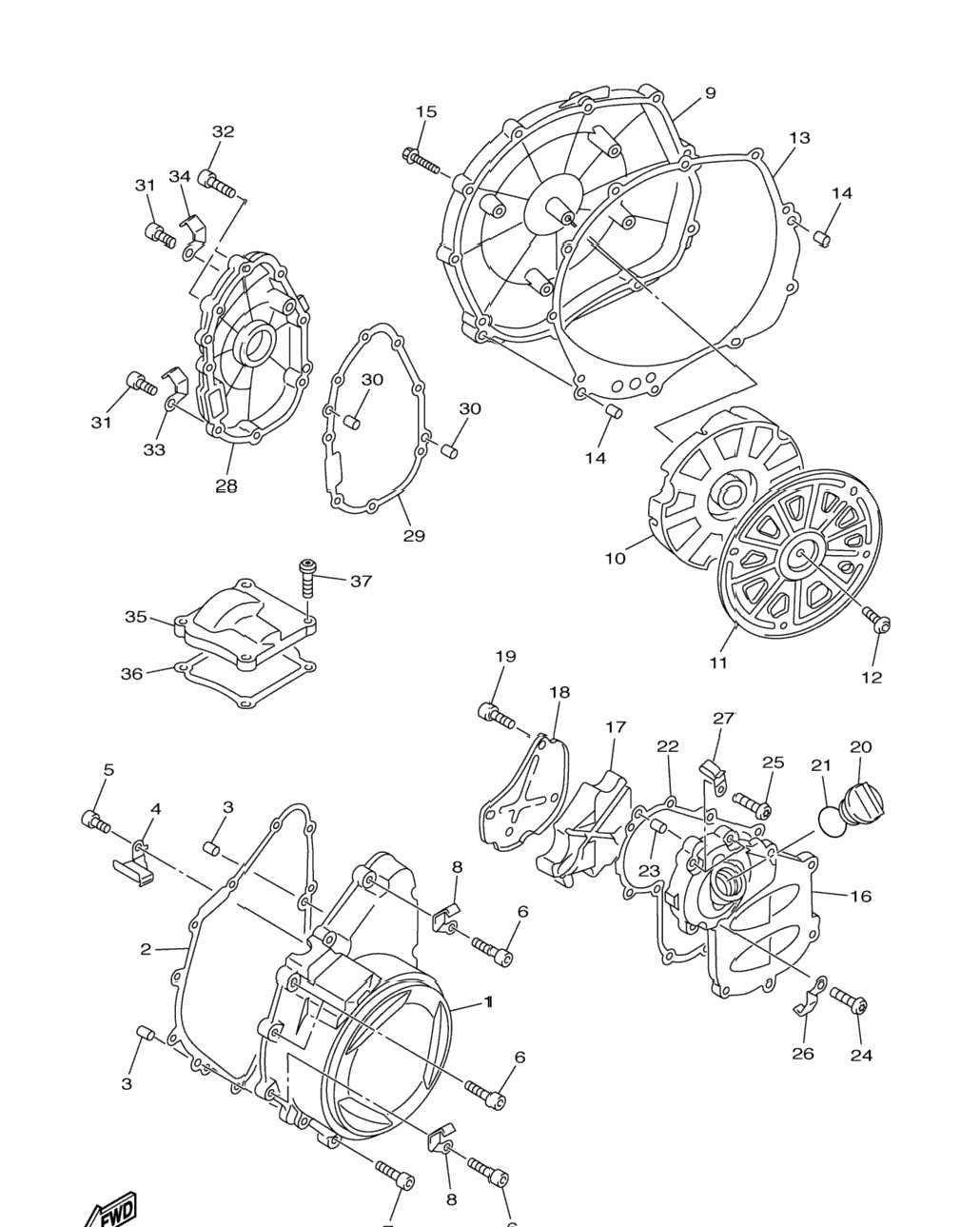

| 1 | 1MC-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 5JW-15451-11-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 4 | 5JW-15484-01-00 | Clamp 2 | 1 шт. | — | |
|
| 5 | 90110-06227-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 9 | 1MC-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 10 | 5JW-15326-00-00 | Damper 2 | 1 шт. | — | |
|
| 11 | 5JW-15492-00-00 | Cover | 1 шт. | — | |
|
| 12 | 90111-06064-00 | Bolt,Hex. Socket Button | 5 шт. | — | |
|
| 13 | 5JW-15461-11-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 14 | 93608-21002-00 | Pin, Dowel | 2 шт. | — | |
|
| 15 | 90110-06388-00 | Bolt, Hexagon Socket Head | 10 шт. | — | |
|
| 16 | 1MC-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 17 | 5JW-15316-00-00 | Damper 1 | 1 шт. | — | |
|
| 18 | 5JW-15414-00-00 | Cover 1 | 1 шт. | — | |
|
| 19 | 90110-06182-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 20 | 3F9-15362-10-00 | Plug, Oil Level | 1 шт. | — | |
|
| 21 | 93210-27194-00 | O-Ring | 1 шт. | — | |
|
| 22 | 5JW-15462-11-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 25 | 90149-06147-00 | Screw | 2 шт. | — | |
|
| 27 | 90465-08122-00 | Clamp | 1 шт. | — | |
|
| 28 | 1MC-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 29 | 5JW-15456-11-00 | Gasket, Oil Pump Cover 1 | 1 шт. | — | |
|
| 30 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 30 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 30 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 31 | 91314-06020-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 31 | 91314-06020-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 32 | 91314-06025-00 | Bolt, Hexagon Socket Head | 10 шт. | — | |
|
| 32 | 91314-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 33 | 90462-08045-00 | Clamp | 2 шт. | — | |
|
| 33 | 90462-08045-00 | Clamp | 2 шт. | — | |
|
| 33 | 90462-08045-00 | Clamp | 1 шт. | — | |
|
| 34 | 90465-08050-00 | Clamp | 1 шт. | — | |
|
| 35 | 1MC-15425-00-00 | Cover, Generator 2 | 1 шт. | — | |
|
| 36 | 5JW-15463-01-00 | Gasket, 2 | 1 шт. | — | |
|
| 37 | 90149-06149-00 | Screw | 7 шт. | — | |
|
| 37 | 90149-06149-00 | Screw | 4 шт. | — | |
|
