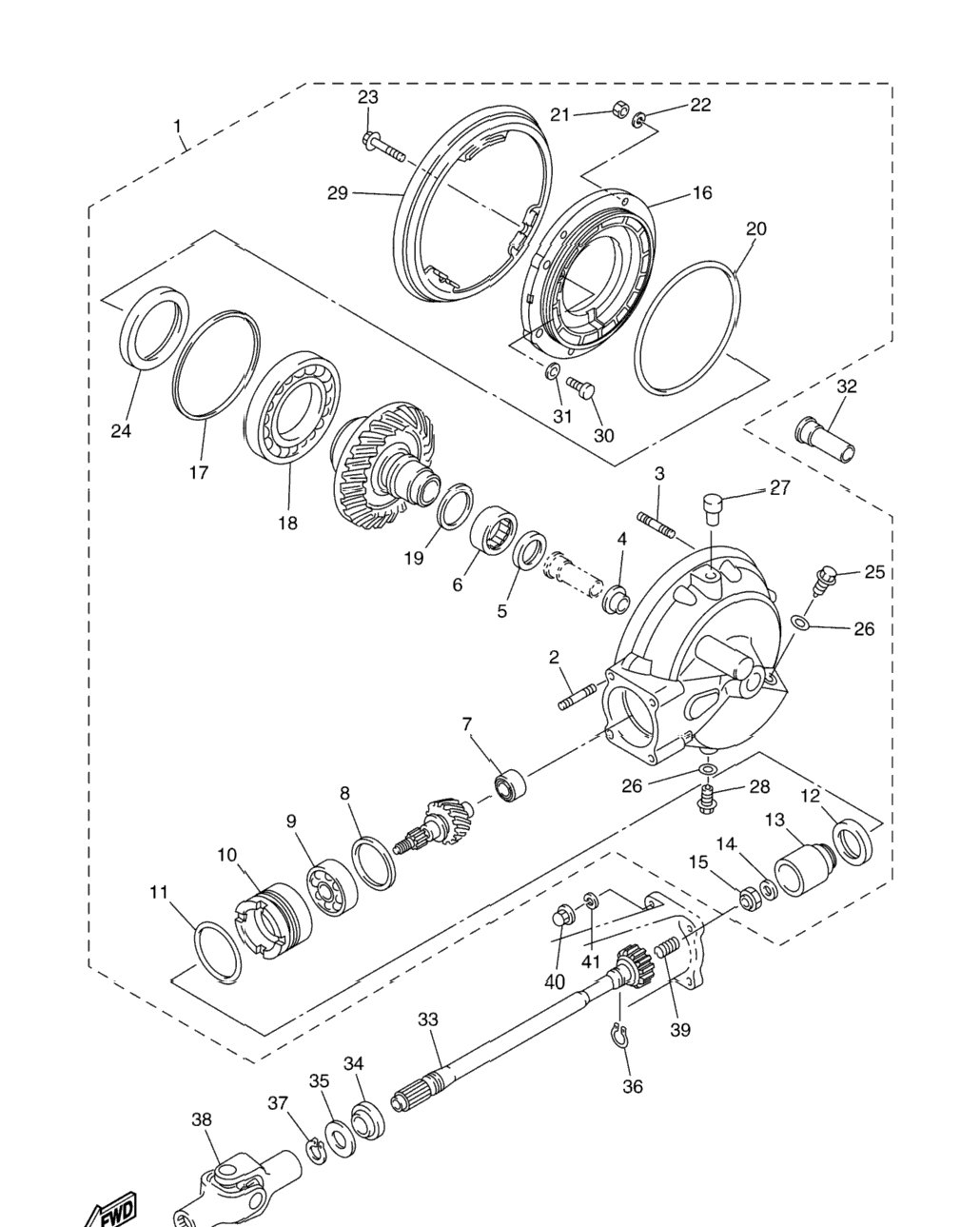

| 1 | 3P6-W4612-30-00 | Rear Axle Gear Case Assy | 1 шт. | — | |
|
| 2 | 90116-10010-00 | . .Bolt, Stud | 4 шт. | — | |
|
| 3 | 90116-08025-00 | . .Bolt, Stud | 0 шт. | — | |
|
| 4 | 5JW-46153-00-00 | . .Collar, Guide | 1 шт. | — | |
|
| 5 | 93101-30084-00 | . .Oil Seal | 1 шт. | — | |
|
| 6 | 93311-43729-00 | . .Bearing | 1 шт. | — | |
|
| 7 | 2H7-46102-00-00 | . .Bearing Assy | 1 шт. | — | |
|
| 8 | 1J7-17537-Y0-30 | . .Shim, Thrust (0.30T) UR | 1 шт. | — | |
|
| 9 | 1J7-17537-Y0-50 | . .Shim, Thrust (0.50T) UR | 1 шт. | — | |
|
| 10 | 1J7-17537-Y0-60 | . . Shim, Thrust (0.60T) UR | 1 шт. | — | |
|
| 11 | 1J7-17537-Y0-15 | . . Shim, Thrust (0.15T) UR | 1 шт. | — | |
|
| 12 | 1J7-17537-Y0-45 | . . Shim, Thrust (0.45T) UR | 1 шт. | — | |
|
| 13 | 1J7-17537-Y0-40 | . .Shim, Thrust (0.40T) UR | 1 шт. | — | |
|
| 14 | 93306-30533-00 | . .Bearing | 1 шт. | — | |
|
| 15 | 4H7-46125-00-00 | . .Retainer, Bearing | 1 шт. | — | |
|
| 16 | 93210-60426-00 | . .O-Ring | 1 шт. | — | |
|
| 17 | 93101-38001-00 | . .Oil Seal | 1 шт. | — | |
|
| 18 | 3P6-46123-01-00 | . .Coupling, Gear | 1 шт. | — | |
|
| 19 | 90201-166R5-00 | . .Washer, Plate | 1 шт. | — | |
|
| 20 | 90179-16010-00 | . .Nut | 1 шт. | — | |
|
| 21 | 3P6-46152-00-00 | . .Housing, Bearing | 1 шт. | — | |
|
| 22 | 1J7-46117-Y0-30 | . .Shim, Ring Gear (0.30T) UR | 1 шт. | — | |
|
| 23 | 1J7-46117-Y0-35 | . . Shim, Ring Gear (0.35T) UR | 0 шт. | — | |
|
| 24 | 1J7-46117-Y0-40 | . .Shim, Ring Gear (0.40T) UR | 1 шт. | — | |
|
| 25 | 1J7-46117-Y0-45 | . . Shim, Ring Gear (0.45T) UR | 1 шт. | — | |
|
| 26 | 1J7-46117-Y0-50 | . .Shim, Ring Gear (0.50T) UR | 1 шт. | — | |
|
| 27 | 1J7-46117-Y0-25 | . .Shim, Ring Gear (0.25T) UR | 1 шт. | — | |
|
| 28 | 93316-01403-00 | . .Bearing | 1 шт. | — | |
|
| 29 | 22U-46118-00-21 | . . Shim, Thrust (2.1T) UR | 1 шт. | — | |
|
| 30 | 22U-46118-00-19 | . . Shim, Thrust (1.9T) UR | 1 шт. | — | |
|
| 31 | 22U-46118-00-17 | . . Shim, Thrust (1.7T) UR | 1 шт. | — | |
|
| 32 | 22U-46118-00-15 | . . Shim, Thrust (1.5T) UR | 1 шт. | — | |
|
| 33 | 22U-46118-00-13 | . . Shim, Thrust (1.3T) UR | 1 шт. | — | |
|
| 34 | 22U-46118-00-20 | . .Shim, Thrust (2.0T) UR | 1 шт. | — | |
|
| 35 | 22U-46118-00-18 | . .Shim, Thrust (1.8T) UR | 1 шт. | — | |
|
| 36 | 22U-46118-00-16 | . .Shim, Thrust (1.6T) UR | 1 шт. | — | |
|
| 37 | 22U-46118-00-12 | . .Shim, Thrust (1.2T) UR | 1 шт. | — | |
|
| 38 | 22U-46118-00-14 | . .Shim, Thrust (1.4T) UR | 1 шт. | — | |
|
| 39 | 93211-54698-00 | . .O-Ring | 1 шт. | — | |
|
| 40 | 95312-08600-00 | . .Nut | 6 шт. | — | |
|
| 41 | 90204-08001-00 | . .Washer, Spring | 6 шт. | — | |
|
| 42 | 95812-10050-00 | . .Bolt, Flange | 2 шт. | — | |
|
| 43 | 93102-70167-00 | . .Oil Seal | 1 шт. | — | |
|
| 44 | 90340-14132-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 45 | 214-11198-01-00 | . .Gasket | 2 шт. | — | |
|
| 46 | 2H7-17590-00-00 | . .Breather Comp | 1 шт. | — | |
|
| 47 | 90340-14004-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 48 | 1FK-46154-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 49 | 1FK-46156-00-00 | . .Stopper, Ring Gear | 1 шт. | — | |
|
| 50 | 1FK-46157-00-15 | . .Shim, Stopper (T=0.15) UR | 1 шт. | — | |
|
| 51 | 1FK-46157-00-20 | . .Shim, Stopper (T=0.20) UR | 1 шт. | — | |
|
| 52 | 5VS-4615A-00-00 | Collar, Guide 1 | 1 шт. | — | |
|
| 53 | 3P6-46172-10-00 | Shaft, Drive | 1 шт. | — | |
|
| 54 | 93108-43001-00 | Oil Seal | 1 шт. | — | |
|
| 55 | 90201-23008-00 | Washer, Plate | 1 шт. | — | |
|
| 56 | 93410-23056-00 | Circlip | 1 шт. | — | |
|
| 57 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 58 | 5JW-46180-00-00 | Cross Joint Comp | 1 шт. | — | |
|
| 59 | 90501-16491-00 | Spring, Compression | 1 шт. | — | |
|
| 60 | 90176-10075-00 | Nut, Crown | 4 шт. | — | |
|
| 61 | 92990-10600-00 | Washer, Plate | 4 шт. | — | |
|
