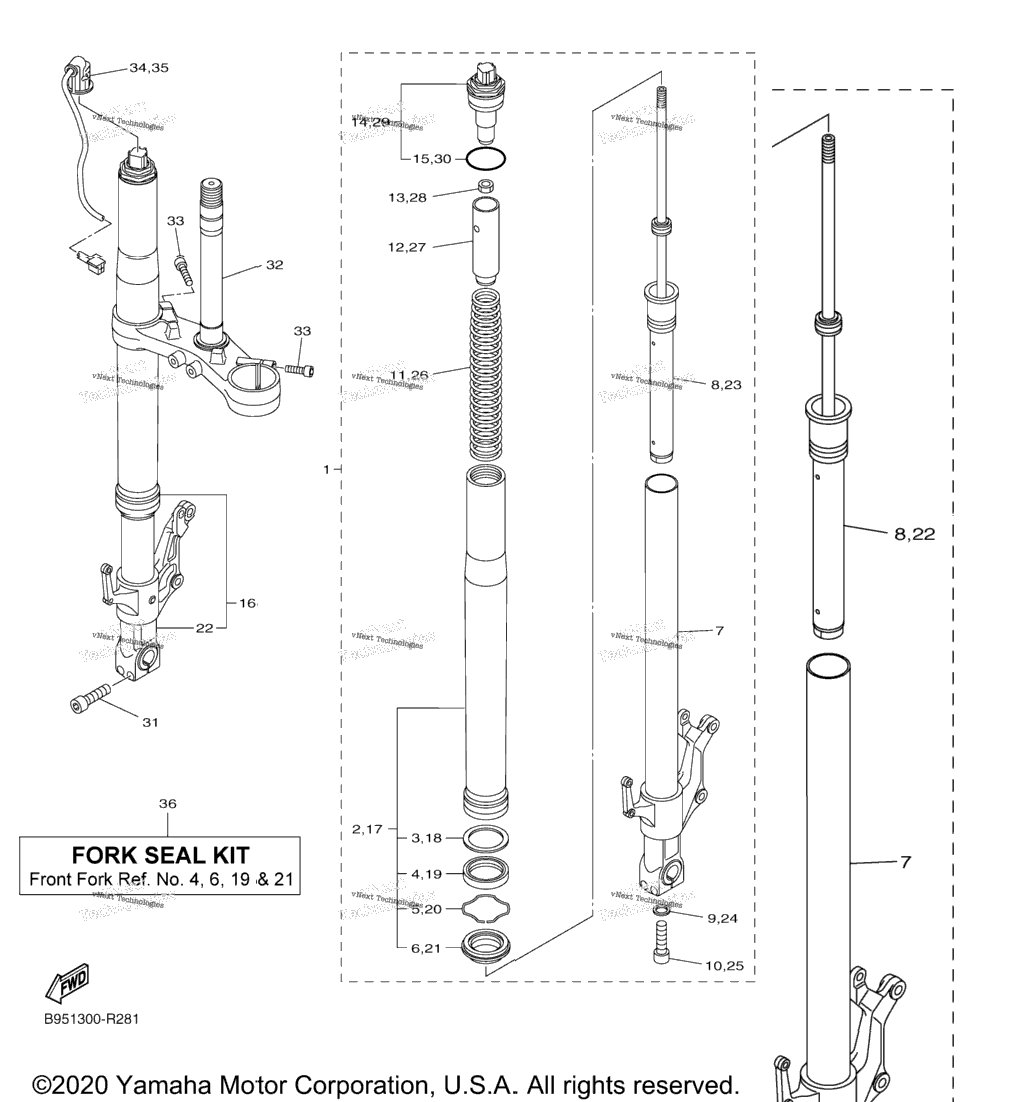

| 1 | 1MD-23102-00-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 1MD-23136-00-00 | . .Tube, Outer | 1 шт. | — | |
|
| 3 | 4V4-23146-L0-00 | . . ..Washer, Oil Seal | 1 шт. | — | |
|
| 4 | 4PU-23145-01-00 | . . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 5 | 4V4-23153-L0-00 | . . ..Ring, Snap | 1 шт. | — | |
|
| 6 | 4PU-23144-00-00 | . . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 7 | 1MD-23110-00-00 | . . .Inner Tube Comp.1 | 1 шт. | — | |
|
| 8 | 1MD-23170-10-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 9 | 509-23158-L0-00 | . .Gasket | 1 шт. | — | |
|
| 10 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 11 | 1MD-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 12 | 1MD-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 13 | 3LC-23357-00-00 | . .Nut | 1 шт. | — | |
|
| 14 | 1MD-23111-00-00 | . . .Bolt, Cap | 1 шт. | — | |
|
| 15 | 39P-23147-00-00 | . . ..O-Ring | 1 шт. | — | |
|
| 16 | 1MD-23103-00-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 17 | 1MD-23136-00-00 | . . .Tube, Outer | 1 шт. | — | |
|
| 18 | 4V4-23146-L0-00 | . . . . ..Washer, Oil Seal | 1 шт. | — | |
|
| 19 | 4PU-23145-01-00 | . . . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 20 | 4V4-23153-L0-00 | . . . ..Ring, Snap | 1 шт. | — | |
|
| 21 | 4PU-23144-00-00 | . . . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 22 | 1MD-23120-00-00 | . . .Inner Tube Comp.2 | 1 шт. | — | |
|
| 23 | 1MD-23170-00-00 | . . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 24 | 509-23158-L0-00 | . . .Gasket | 1 шт. | — | |
|
| 25 | 278-23181-50-00 | . . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 26 | 1MD-23141-00-00 | . . .Spring, Front Fork | 1 шт. | — | |
|
| 27 | 1MD-23118-00-00 | . . .Spacer | 1 шт. | — | |
|
| 28 | 3LC-23357-00-00 | . . .Nut | 1 шт. | — | |
|
| 29 | 1MD-23111-00-00 | . . .Bolt, Cap | 1 шт. | — | |
|
| 30 | 39P-23147-00-00 | . . ..O-Ring | 1 шт. | — | |
|
| 31 | 91314-08040-00 | . .Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 32 | 1MD-23340-00-00 | Under Bracket Comp | 1 шт. | — | |
|
| 33 | 91312-08025-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 34 | 1MD-82509-00-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 35 | 1MD-82509-10-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 36 | 4PU-W003B-00-00 | Fork Seal Kit | 1 шт. | — | |
|
