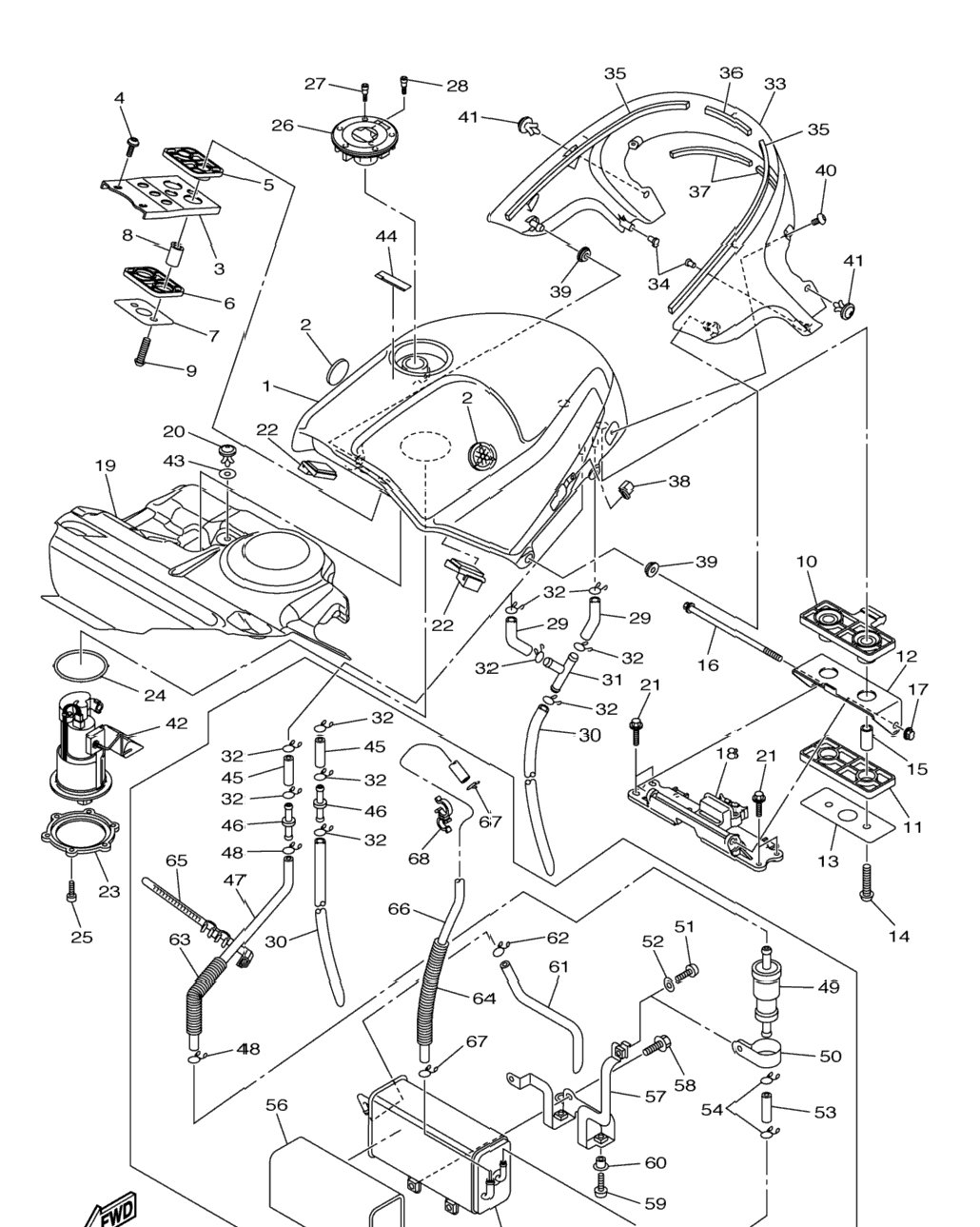

| 1 | 3P6-YK241-00-PC | Fuel Tank Comp DRMK | 1 шт. | — | |
|
| 2 | 1MC-2414B-00-00 | Emblem | 2 шт. | — | |
|
| 3 | 5JW-24191-00-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 4 | 90149-06302-00 | Screw | 2 шт. | — | |
|
| 5 | 5JW-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 6 | 5JW-24182-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 7 | 5JW-24187-00-00 | Washer, Special | 1 шт. | — | |
|
| 8 | 90387-0813V-00 | Collar | 2 шт. | — | |
|
| 9 | 92012-08035-00 | Bolt, Button Head | 2 шт. | — | |
|
| 10 | 3P6-24183-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 11 | 5JW-24184-00-00 | Damper, Locating 4 | 1 шт. | — | |
|
| 12 | 5JW-24192-01-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 13 | 5JW-24186-00-00 | Washer, Special | 1 шт. | — | |
|
| 14 | 92012-08035-00 | Bolt, Button Head | 2 шт. | — | |
|
| 15 | 90387-0813V-00 | Collar | 2 шт. | — | |
|
| 16 | 95812-08160-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 95702-08500-00 | Nut, Flange | 1 шт. | — | |
|
| 18 | 3P6-21348-00-00 | Brackt, Tank Fitting | 1 шт. | — | |
|
| 19 | 1MC-2416F-00-00 | Insulator, Fuel Tank 1 | 1 шт. | — | |
|
| 20 | 90269-06081-00 | Rivet | 1 шт. | — | |
|
| 21 | 95822-06020-00 | Bolt, Flange | 4 шт. | — | |
|
| 22 | 3P6-24184-00-00 | Damper, Locating 4 | 2 шт. | — | |
|
| 23 | 1MC-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 24 | 19B-24486-01-00 | O-Ring | 1 шт. | — | |
|
| 25 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 26 | 39P-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 27 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 28 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 29 | 90445-11763-00 | Hose (L45) | 2 шт. | — | |
|
| 30 | 90445-11036-00 | Hose | 1 шт. | — | |
|
| 31 | 90413-07007-00 | Way 3 | 1 шт. | — | |
|
| 32 | 90467-100A1-00 | Clip | 5 шт. | — | |
|
| 33 | 3P6-24129-00-P0 | Cover, Side 1 S3 | 1 шт. | — | |
|
| 34 | 90338-06018-00 | Plug | 2 шт. | — | |
|
| 35 | 3P6-2414H-00-00 | Damper, Plate 1 | 2 шт. | — | |
|
| 36 | 3P6-2414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 37 | 2D1-2414R-00-00 | Damper, Plate 6 | 2 шт. | — | |
|
| 38 | 5PW-2411J-01-00 | Damper, Side Cover | 2 шт. | — | |
|
| 39 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 40 | 90111-05023-00 | Bolt,Hex. Socket Button | 2 шт. | — | |
|
| 41 | 90269-06081-00 | Rivet | 2 шт. | — | |
|
| 42 | 5JW-13907-22-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 43 | 90202-06008-00 | Washer, Plate | 1 шт. | — | |
|
| 44 | 5GK-2118K-00-00 | Label, Caution | 1 шт. | — | |
|
| 45 | 90445-11066-00 | Hose FOR CALIFORNIA | 0 шт. | — | |
|
| 46 | 4XY-14568-00-00 | Joint FOR CALIFORNIA | 0 шт. | — | |
|
| 47 | 1MC-24312-00-00 | Pipe 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 48 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 49 | 5PX-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 50 | 90461-15139-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 51 | 98504-05012-00 | Screw, Pan Head FOR CALIFORNIA | 0 шт. | — | |
|
| 52 | 92903-05600-00 | Washer, Plate FOR CALIFORNIA | 0 шт. | — | |
|
| 53 | 90445-11065-00 | Hose (L30) FOR CALIFORNIA | 0 шт. | — | |
|
| 54 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 55 | 3P6-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 56 | 3P6-2414E-00-00 | Seal 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 57 | 3P6-2419F-01-00 | Bracket, Canistor FOR CALIFORNIA | 0 шт. | — | |
|
| 58 | 95804-06012-00 | Bolt, Flange FOR CALIFORNIA | 0 шт. | — | |
|
| 59 | 92014-06012-00 | Bolt, Button Head FOR CALIFORNIA | 0 шт. | — | |
|
| 60 | 90387-0603J-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 61 | 3P6-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 62 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 63 | 3P6-24327-00-00 | Protector, Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 64 | 3P6-2432A-00-00 | Protector, Pipe 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 65 | 90464-10009-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 66 | 1MC-1443J-00-00 | Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 67 | 90467-100A1-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 68 | 90464-28153-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
