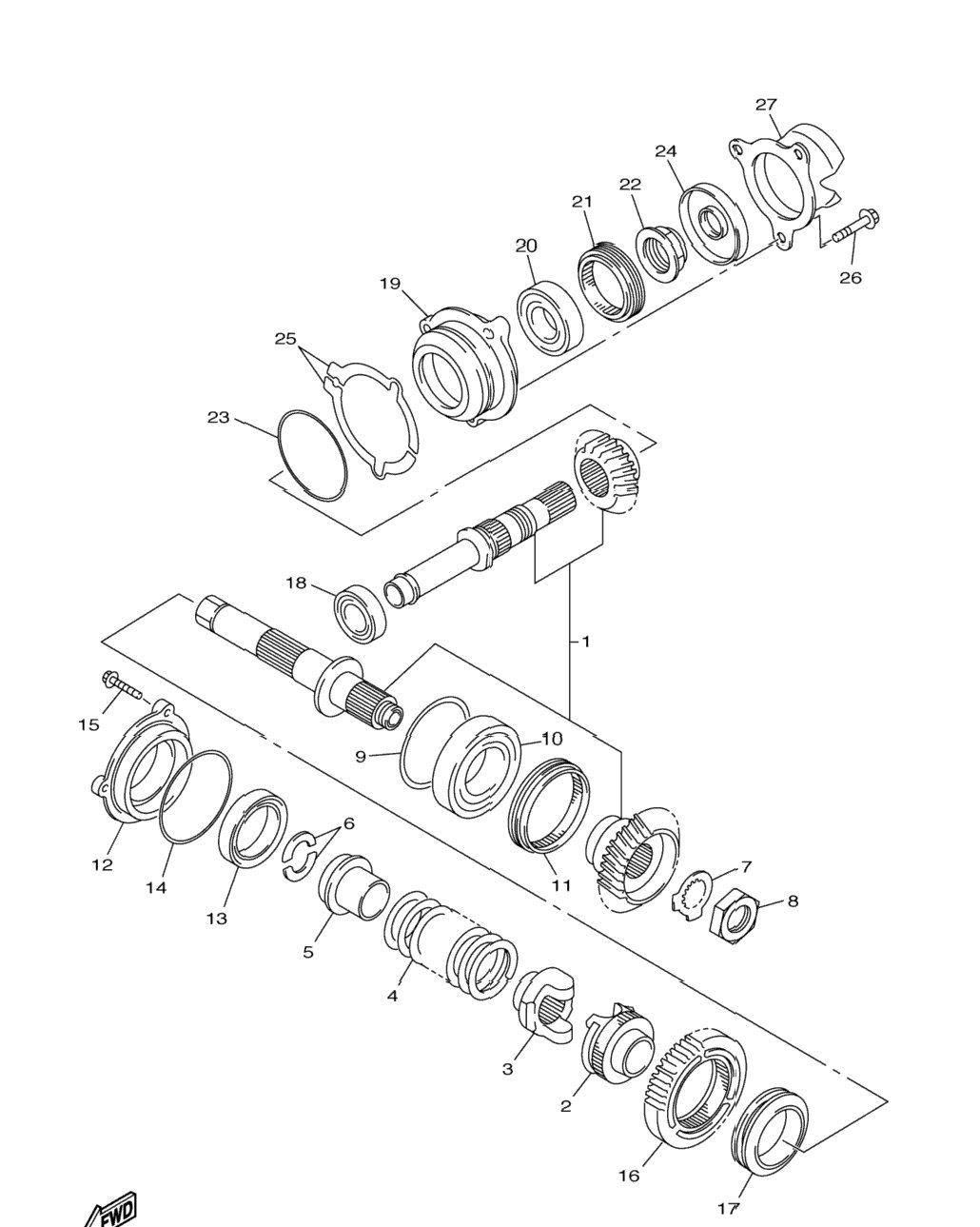

| 1 | 5JW-W1751-00-00 | Middle Gear Comp | 1 шт. | — | |
|
| 2 | 5JW-17526-00-00 | Cam, Drive | 1 шт. | — | |
|
| 3 | 5JW-17527-00-00 | Cam, Driven | 1 шт. | — | |
|
| 4 | 3P6-17493-00-00 | Spring, Transmission Shift | 1 шт. | — | |
|
| 5 | 5JW-17524-00-00 | Holder | 1 шт. | — | |
|
| 6 | 90209-21281-00 | Washer | 2 шт. | — | |
|
| 7 | 90215-27003-00 | Washer, Lock | 1 шт. | — | |
|
| 8 | 90179-22030-00 | Nut | 1 шт. | — | |
|
| 9 | 4X7-17531-00-30 | Shim, Pinion (0.30T) UR | 1 шт. | — | |
|
| 10 | 4X7-17531-00-50 | Shim, Pinion (0.50T) UR | 1 шт. | — | |
|
| 11 | 4X7-17531-00-40 | Shim, Pinion (0.40T) UR | 1 шт. | — | |
|
| 12 | 4X7-17531-00-15 | Shim, Pinion (0.15T) UR | 1 шт. | — | |
|
| 13 | 93306-20901-00 | Bearing | 1 шт. | — | |
|
| 14 | 90179-88336-00 | Nut | 1 шт. | — | |
|
| 15 | 1MC-17521-00-00 | Housing, Bearing | 1 шт. | — | |
|
| 16 | 93306-90901-00 | Bearing | 1 шт. | — | |
|
| 17 | 93210-84724-00 | O-Ring | 1 шт. | — | |
|
| 18 | 90110-06387-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 19 | 3P6-17583-00-00 | Gear, Middle Driven (35T) | 1 шт. | — | |
|
| 20 | 90387-53001-00 | Collar | 1 шт. | — | |
|
| 21 | 93306-00518-00 | Bearing | 1 шт. | — | |
|
| 22 | 5JW-17551-00-00 | Housing, Bearing | 1 шт. | — | |
|
| 23 | 93306-20636-00 | Bearing | 1 шт. | — | |
|
| 24 | 90179-68001-00 | Nut | 1 шт. | — | |
|
| 25 | 90179-28005-00 | Nut | 1 шт. | — | |
|
| 26 | 93210-76546-00 | O-Ring | 1 шт. | — | |
|
| 27 | 93102-25004-00 | Oil Seal | 1 шт. | — | |
|
| 28 | 5JW-17531-30-00 | Shim, Pinion (0.30T) UR | 2 шт. | — | |
|
| 29 | 5JW-17531-10-00 | Shim, Pinion (0.15T) UR | 2 шт. | — | |
|
| 30 | 5JW-17531-00-00 | Shim, Pinion (0.10T) UR | 2 шт. | — | |
|
| 31 | 5JW-17531-40-00 | Shim, Pinion (0.40T) UR | 2 шт. | — | |
|
| 32 | 5JW-17531-50-00 | Shim, Pinion (0.50T) UR | 2 шт. | — | |
|
| 33 | 5JW-17531-20-00 | Shim, Pinion (0.20T) UR | 2 шт. | — | |
|
| 34 | 90105-08108-00 | Bolt, Flange | 3 шт. | — | |
|
| 35 | 1MC-17538-00-00 | Cap, Housing | 1 шт. | — | |
|
