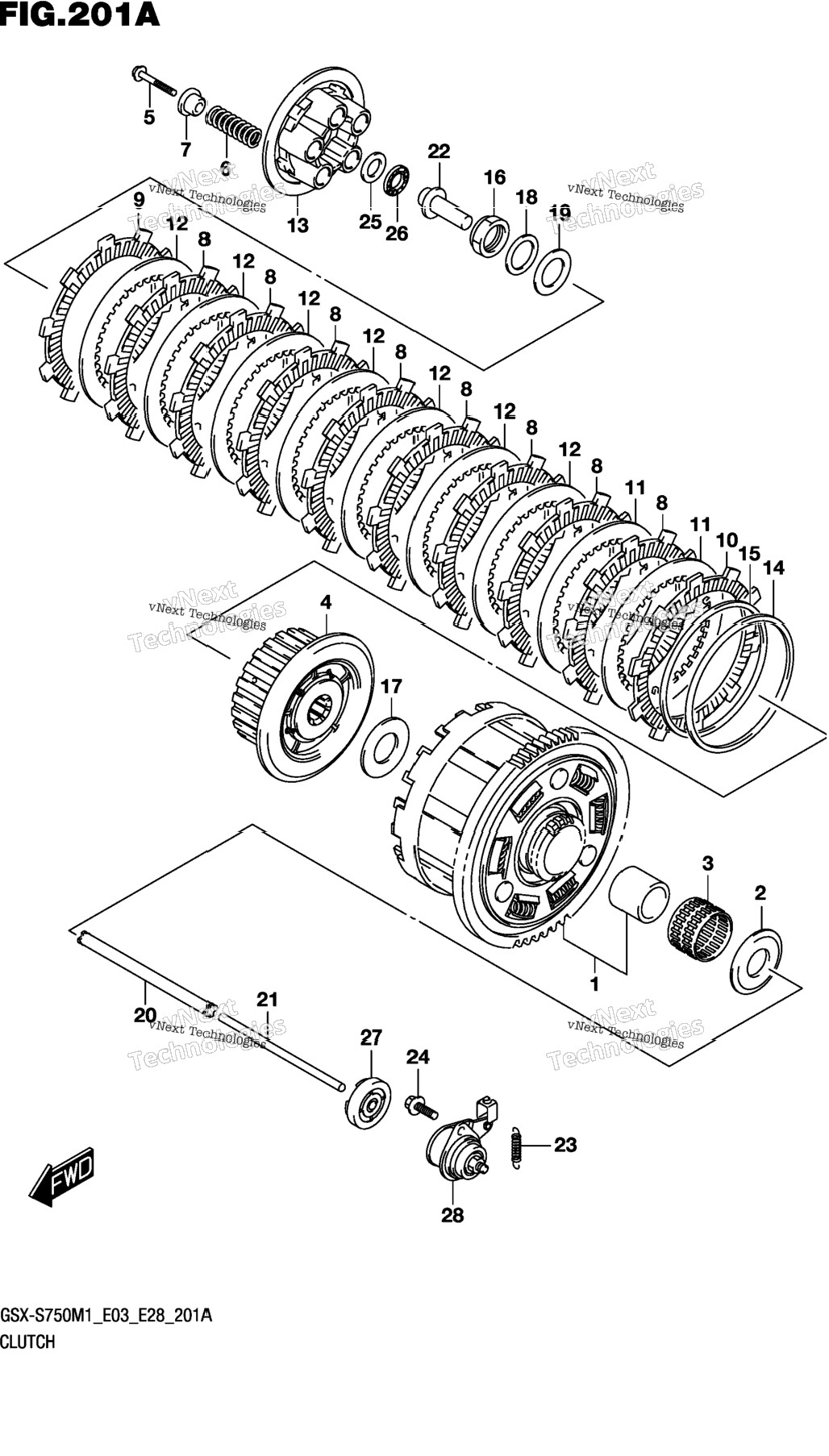

| 1 | 21200-35830 | GEAR ASSY,PRIMARY DRIVEN (NT: 8) | 1 шт. | — | |
|
| 2 | 09160-25073 | WASHER (25X54X2.4) | 1 шт. | — | |
|
| 3 | 09263-35036 | BEARING (35X40X29.8) | 1 шт. | — | |
|
| 4 | 21410-35F20 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21482-40F00 | BOLT,CLUTCH SPRING | 5 шт. | — | |
|
| 6 | 21413-08J00 | SPRING,CLUTCH | 5 шт. | — | |
|
| 7 | 21414-29F00 | WASHER | 5 шт. | — | |
|
| 8 | 21441-31EA0 | PLATE,CLUTCH DRIVE NO.1 (T:3. ) | 8 шт. | — | |
|
| 9 | 21441-31E60 | PLATE,CLUTCH DRIVE (T:3.0) | 1 шт. | — | |
|
| 10 | 21442-31E21 | PLATE,CLUTCH DRIVE (T:3.0) | 1 шт. | — | |
|
| 11 | 21451-31E00 | PLATE,CLUTCH DRIVEN,NO.1 (T:1 6) | 2 шт. | — | |
|
| 12 | 21451-31E10 | PLATE,CLUTCH DRIVEN NO.2 (T:2 0) | 7 шт. | — | |
|
| 13 | 21462-35F00 | DISK,CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21471-31E20 | SEAT,CLUTCH PLATE WAVE WASHER | 1 шт. | — | |
|
| 15 | 21472-39F00 | WASHER,CLUTCH PLATE | 1 шт. | — | |
|
| 16 | 09159-24010 | NUT | 1 шт. | — | |
|
| 17 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 18 | 09164-24008 | WASHER (24.2X35X2.7) | 1 шт. | — | |
|
| 19 | 09181-25223 | SHIM (25X38X1) | 1 шт. | — | |
|
| 20 | 23110-27A00 | ROD,CLUTCH (L:161) | 1 шт. | — | |
|
| 21 | 23111-35F00 | ROD,CLUTCH PUSH,L | 1 шт. | — | |
|
| 22 | 23121-31E00 | PIECE,CLUTCH PUSH | 1 шт. | — | |
|
| 23 | 09443-09051 | SPRING | 1 шт. | — | |
|
| 24 | 01550-0616A | BOLT | 2 шт. | — | |
|
| 25 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 26 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 27 | 09283-06010 | SEAL,OIL (6X34X10.5) | 1 шт. | — | |
|
| 28 | 23200-35F01 | SCREW ASSY,CLUTCH RELEASE | 1 шт. | — | |
|
