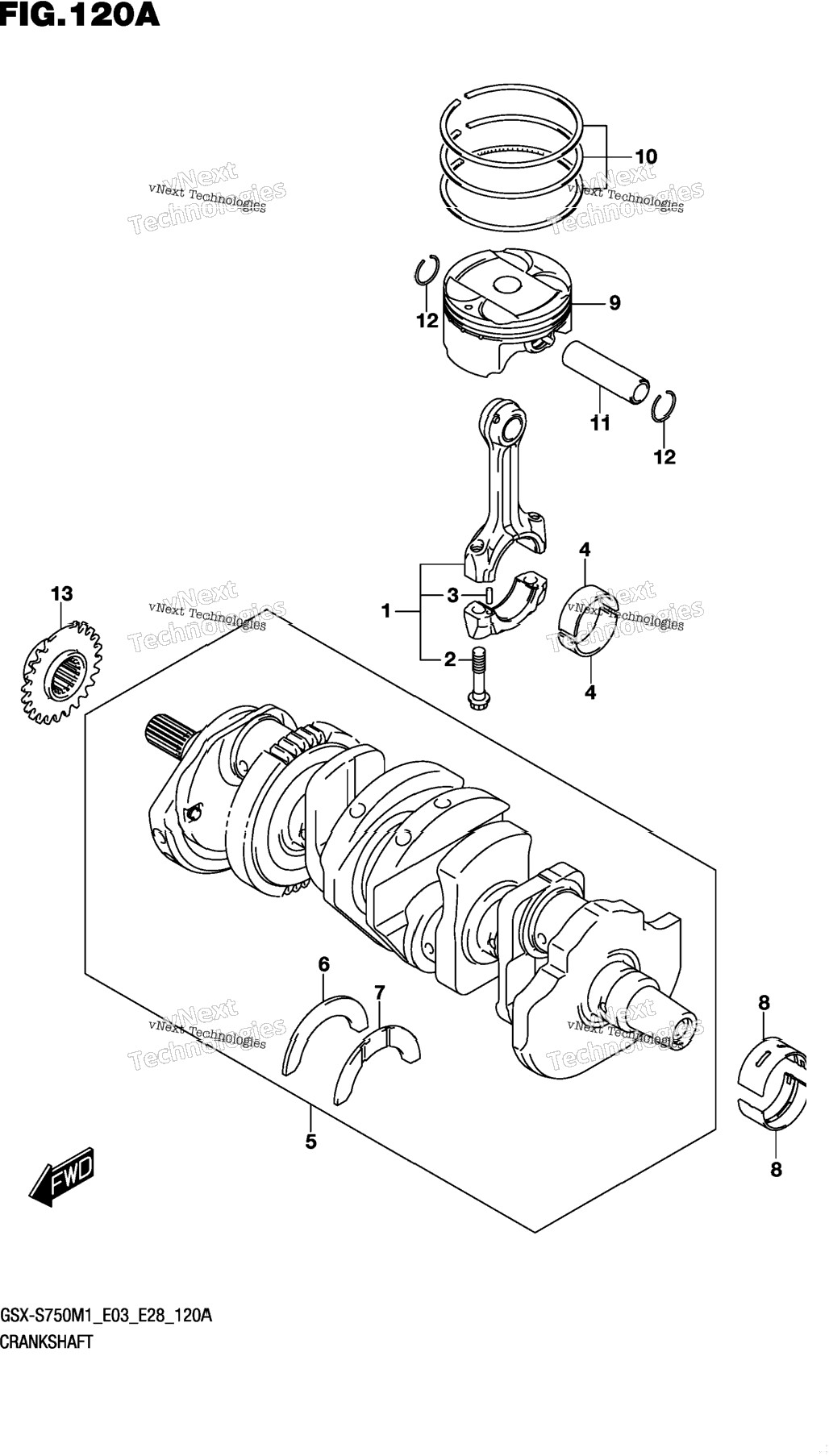

| 1 | 12160-08J10 | ROD ASSY, CONNECTING | 4 шт. | — | |
|
| 2 | 12163-13K00 | .BOLT | 0 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4-1 | 12164-35F10-0A0 | BEARING, CRANK PIN (GREEN) | 0 шт. | — | |
|
| 4-2 | 12164-35F10-0B0 | BEARING, CRANK PIN (BLACK) | 0 шт. | — | |
|
| 4-3 | 12164-35F10-0C0 | BEARING, CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4-4 | 12164-35F10-0D0 | BEARING, CRANK PIN (YELLOW) | 0 шт. | — | |
|
| 5 | 12000-30820 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7-1 | 12228-17E00-0A0 | .BEARING,CRANK THRUST (RED) | 1 шт. | — | |
|
| 7-2 | 12228-17E00-0B0 | .BEARING,CRANK THRUST (BLACK) | 1 шт. | — | |
|
| 7-3 | 12228-17E00-0C0 | .BEARING,CRANK THRUST (BLUE) | 1 шт. | — | |
|
| 7-4 | 12228-17E00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7-4 | 12228-17E00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7-5 | 12228-17E00-0E0 | .BEARING,CRANK THRUST (YELLOW | 1 шт. | — | |
|
| 7-6 | 12228-17E00-0F0 | .BEARING,CRANK THRUST (WHITE) | 1 шт. | — | |
|
| 8-1 | 12229-35F10-0A0 | BEARING, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 8-2 | 12229-35F10-0B0 | BEARING, CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 8-3 | 12229-35F10-0C0 | BEARING, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 8-4 | 12229-35F10-0D0 | BEARING, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 9 | 12111-08J01-0F0 | PISTON (YELLOW) | 4 шт. | — | |
|
| 10 | 12140-08J10 | RING SET, PISTON | 4 шт. | — | |
|
| 11 | 12151-10G00 | PIN,PISTON | 4 шт. | — | |
|
| 12 | 09381-16001 | CIRCLIP (OD:18) | 8 шт. | — | |
|
| 13 | 12731-08J00 | SPROCKET,CAM CHAIN DRIVE (NT: 7) | 0 шт. | — | |
|
