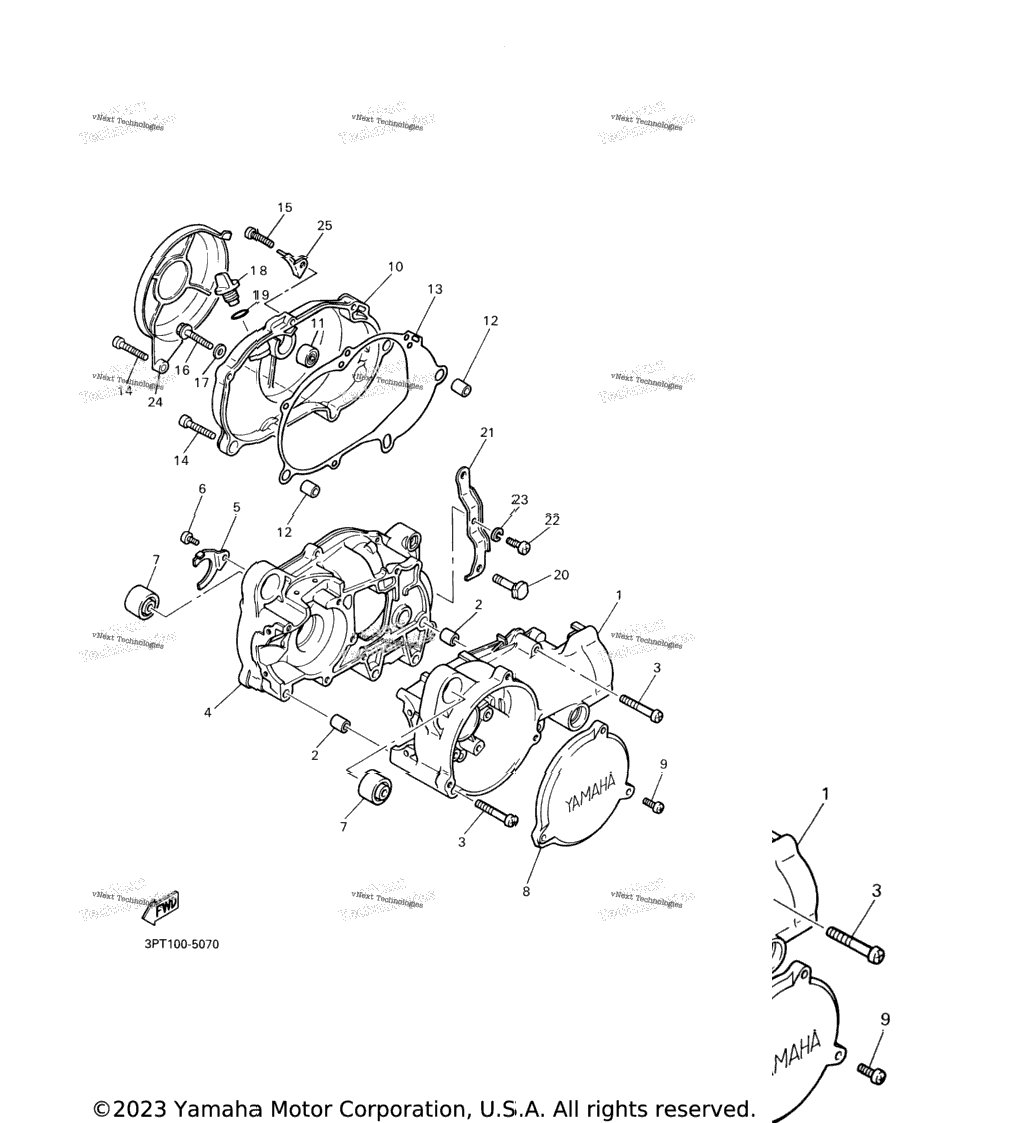

| 1 | 4X4-15111-00-00 | Crankcase 1 | 1 шт. | — | |
|
| 3 | 98507-06045-00 | Screw, Pan Head | 8 шт. | — | |
|
| 4 | 4J2-15121-01-00 | Crankcase 2 | 1 шт. | — | |
|
| 5 | 3L5-15128-00-00 | Holder | 1 шт. | — | |
|
| 7 | 2E9-15316-00-00 | Damper 1 | 2 шт. | — | |
|
| 8 | 4J2-15415-00-00 | Cover, Generator | 1 шт. | — | |
|
| 9 | 98507-05014-00 | Screw, Pan Head | 3 шт. | — | |
|
| 10 | 4X4-15421-02-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 11 | 3L5-17112-01-00 | Bush 1 | 1 шт. | — | |
|
| 12 | 99530-12016-00 | Pin, Dowel | 2 шт. | — | |
|
| 12 | 99530-12016-00 | Pin, Dowel | 2 шт. | — | |
|
| 13 | 3L5-15451-12-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 14 | 98507-06035-00 | Screw, Pan Head | 3 шт. | — | |
|
| 15 | 98507-06025-00 | Screw, Pan Head | 3 шт. | — | |
|
| 16 | 90105-08103-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 18 | 4J2-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 19 | 93210-14104-00 | O-Ring | 1 шт. | — | |
|
| 20 | 90109-08582-00 | Bolt | 2 шт. | — | |
|
| 21 | 4J2-15113-00-00 | Plate | 0 шт. | — | |
|
| 22 | 98507-06012-00 | .Screw, Pan Head | 1 шт. | — | |
|
| 22 | 98507-06012-00 | .Screw, Pan Head | 1 шт. | — | |
|
| 23 | 92907-06100-00 | .Washer, Spring | 1 шт. | — | |
|
| 24 | 4X4-15491-00-00 | Protector | 1 шт. | — | |
|
| 25 | 4X4-15484-00-00 | Clamp 2 | 1 шт. | — | |
|
