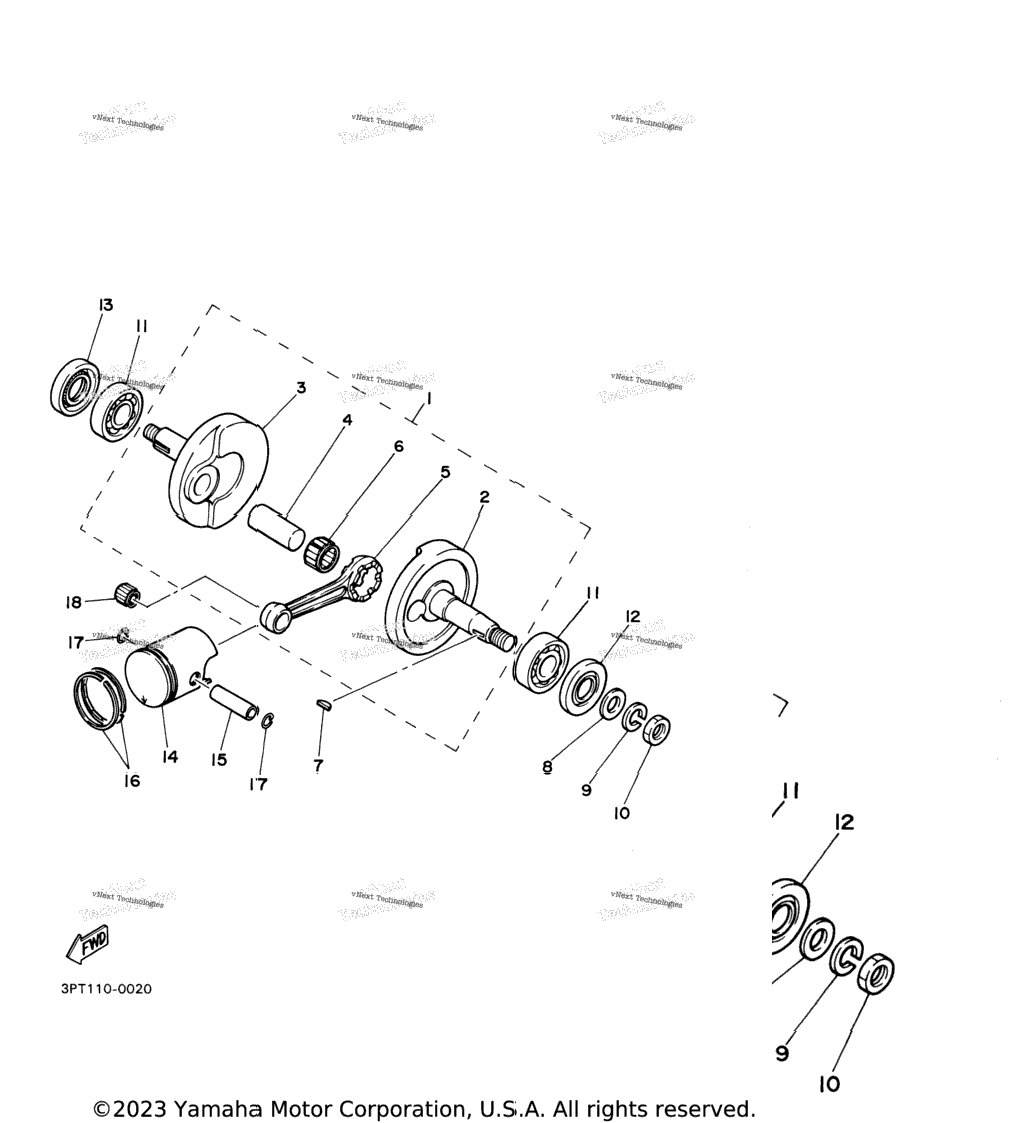

| 1 | 3L5-11400-02-00 | Crankshaft Assy | 1 шт. | — | |
|
| 2 | 3L5-11412-00-00 | . .Crank 1 | 1 шт. | — | |
|
| 3 | 3L5-11422-01-00 | . .Crank 2 | 1 шт. | — | |
|
| 4 | 1YU-11681-00-00 | . .Pin, Crank 1 | 1 шт. | — | |
|
| 5 | 2E9-11651-00-00 | . .Rod, Connecting | 1 шт. | — | |
|
| 6 | 93310-416N7-00 | . .Bearing | 1 шт. | — | |
|
| 7 | 90280-03045-00 | Key, Woodruff | 1 шт. | — | |
|
| 8 | 92907-12600-00 | Washer, Plate | 1 шт. | — | |
|
| 9 | 92907-12100-00 | Washer, Spring | 1 шт. | — | |
|
| 10 | 95307-12700-00 | Nut | 1 шт. | — | |
|
| 11 | 93306-20326-00 | Bearing | 2 шт. | — | |
|
| 12 | 93102-17067-00 | Oil Seal | 1 шт. | — | |
|
| 13 | 93102-23174-00 | Oil Seal | 1 шт. | — | |
|
| 14 | 18U-11635-00-00 | Piston (0.25Mm O/S) AP | 1 шт. | — | |
|
| 14 | 18U-11636-00-00 | Piston (0.50Mm O/S) AP | 1 шт. | — | |
|
| 14 | 18U-11631-00-A0 | Piston (Std) | 1 шт. | — | |
|
| 15 | 3L5-11633-00-00 | Pin, Piston | 1 шт. | — | |
|
| 16 | 260-11610-14-00 | Piston Ring Set (0.25Mm O/S) AP | 1 шт. | — | |
|
| 16 | 260-11610-24-00 | Piston Ring Set (0.50Mm O/S) AP | 1 шт. | — | |
|
| 16 | 260-11610-04-00 | Piston Ring Set (Std) | 1 шт. | — | |
|
| 17 | 93450-11021-00 | Circlip | 2 шт. | — | |
|
| 18 | 93310-21038-00 | Bearing | 1 шт. | — | |
|
