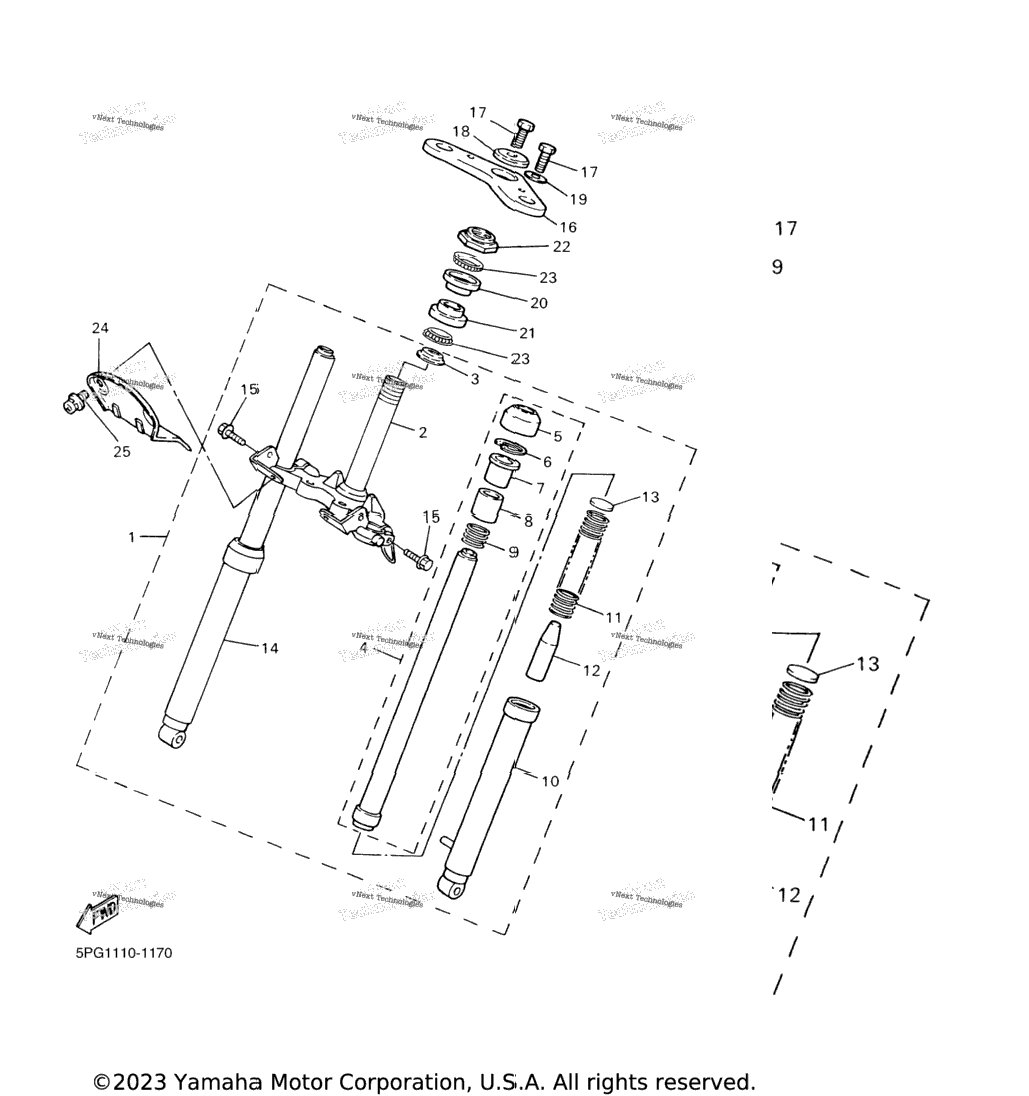

| 1 | 3PT-23100-01-35 | Front Fork Assy SL | 1 шт. | — | |
|
| 2 | 3PT-23340-00-00 | . .Under Bracket Comp | 1 шт. | — | |
|
| 3 | 3YJ-23414-00-00 | . .Race, Ball 4 | 1 шт. | — | |
|
| 4 | 3PT-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 5 | 2E9-23144-01-00 | . . ..Seal, Dust | 1 шт. | — | |
|
| 6 | 93450-30057-00 | . . ..Circlip | 1 шт. | — | |
|
| 7 | 54V-23125-02-00 | . . ..Metal, Slide 1 | 1 шт. | — | |
|
| 8 | 2E9-23113-01-00 | . . ..Collar | 1 шт. | — | |
|
| 9 | 36R-23151-00-00 | . . ..Spring, Rebound | 1 шт. | — | |
|
| 10 | 4X4-23106-00-35 | . .Outer Tube Comp SL | 1 шт. | — | |
|
| 11 | 4X4-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 12 | 3L6-23195-00-00 | . .Rubber | 1 шт. | — | |
|
| 13 | 2E9-23143-00-00 | . .Seat, Spring Lower | 1 шт. | — | |
|
| 14 | 3PT-23103-00-35 | . .Front Fork Assy (R.H) SL | 1 шт. | — | |
|
| 15 | 95027-08030-00 | . .Bolt, Flange | 2 шт. | — | |
|
| 16 | 4X4-23435-00-00 | Crown, Handle | 1 шт. | — | |
|
| 17 | 90105-10006-00 | Bolt, Flange | 3 шт. | — | |
|
| 18 | 90209-10160-00 | Washer | 1 шт. | — | |
|
| 19 | 90201-105H3-00 | Washer, Plate | 2 шт. | — | |
|
| 20 | 2E9-23412-00-00 | Race, Ball 2 | 1 шт. | — | |
|
| 21 | 2E9-23413-01-00 | Race, Ball 3 | 1 шт. | — | |
|
| 22 | 3PT-23411-00-00 | Race, Ball 1 | 1 шт. | — | |
|
| 23 | 93505-32042-00 | Ball | 2 шт. | — | |
|
| 24 | 4X4-21543-00-00 | Plate 1 | 1 шт. | — | |
|
| 25 | 90159-06060-00 | Screw, With Washer | 2 шт. | — | |
|
