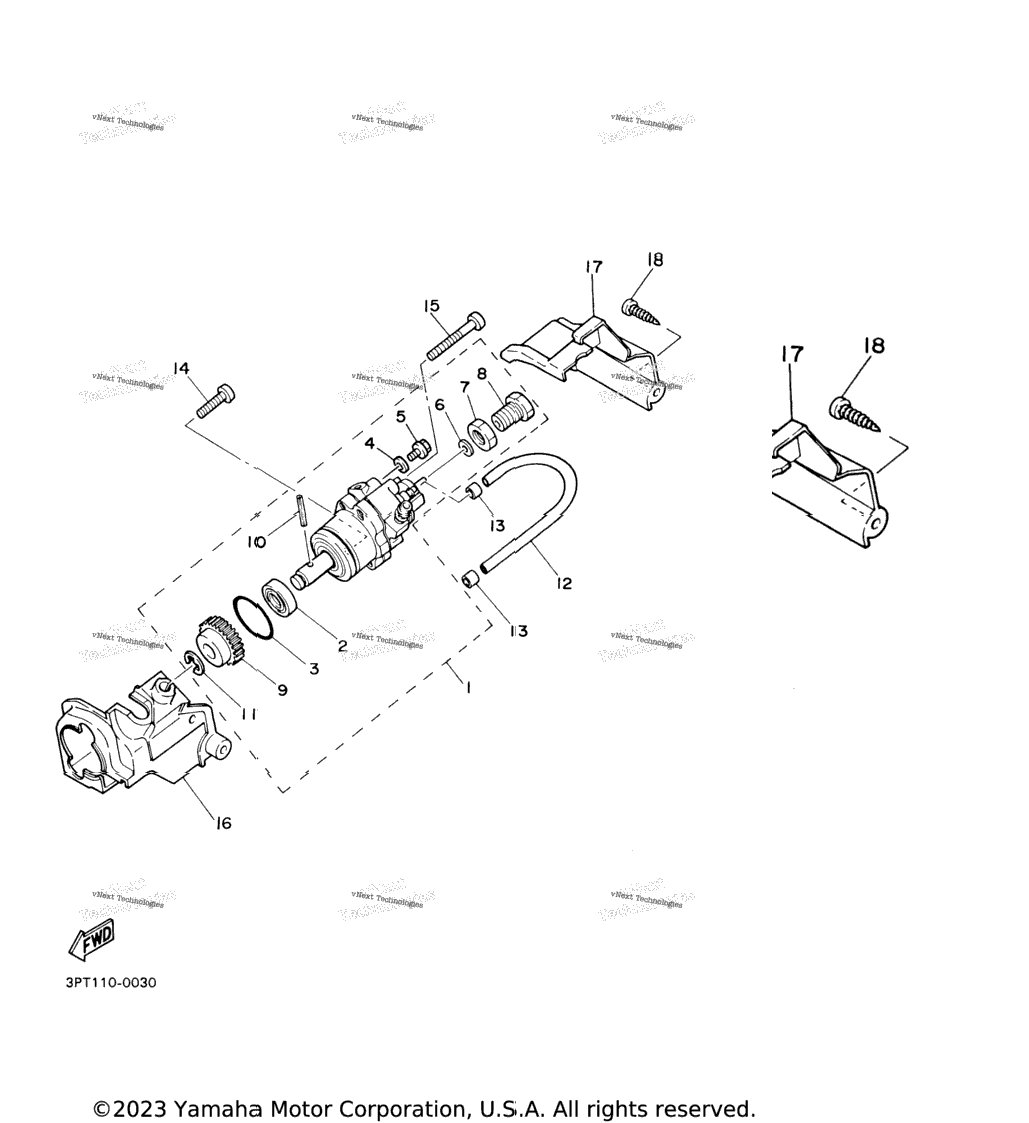

| 1 | 3L5-13101-01-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 93101-10001-00 | . .Oil Seal | 1 шт. | — | |
|
| 3 | 93210-26240-00 | . .O-Ring | 1 шт. | — | |
|
| 4 | 90430-04004-00 | . .Gasket | 1 шт. | — | |
|
| 5 | 90149-04135-00 | . .Screw | 1 шт. | — | |
|
| 6 | 384-13138-00-00 | . .Plate, Adjusting | 1 шт. | — | |
|
| 7 | 90170-10105-00 | . .Nut | 1 шт. | — | |
|
| 8 | 90401-10029-00 | . .Bolt, Union | 1 шт. | — | |
|
| 9 | 3L5-13124-00-00 | . .Gear, Worm Wheel (56T) | 1 шт. | — | |
|
| 10 | 91609-30014-00 | . .Pin, Spring | 1 шт. | — | |
|
| 11 | 93430-07012-00 | . .Circlip | 1 шт. | — | |
|
| 12 | 3L5-13161-00-00 | Pipe, Delivery 1 | 1 шт. | — | |
|
| 13 | 90468-02033-00 | Clip | 2 шт. | — | |
|
| 14 | 98507-05020-00 | Screw, Pan Head | 1 шт. | — | |
|
| 15 | 98507-05035-00 | .Screw, Pan Head | 1 шт. | — | |
|
| 16 | 3L5-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 17 | 3L5-15426-00-00 | Cover, Oil Pump 2 | 1 шт. | — | |
|
| 18 | 97707-50115-00 | Screw, Tapping | 1 шт. | — | |
|
