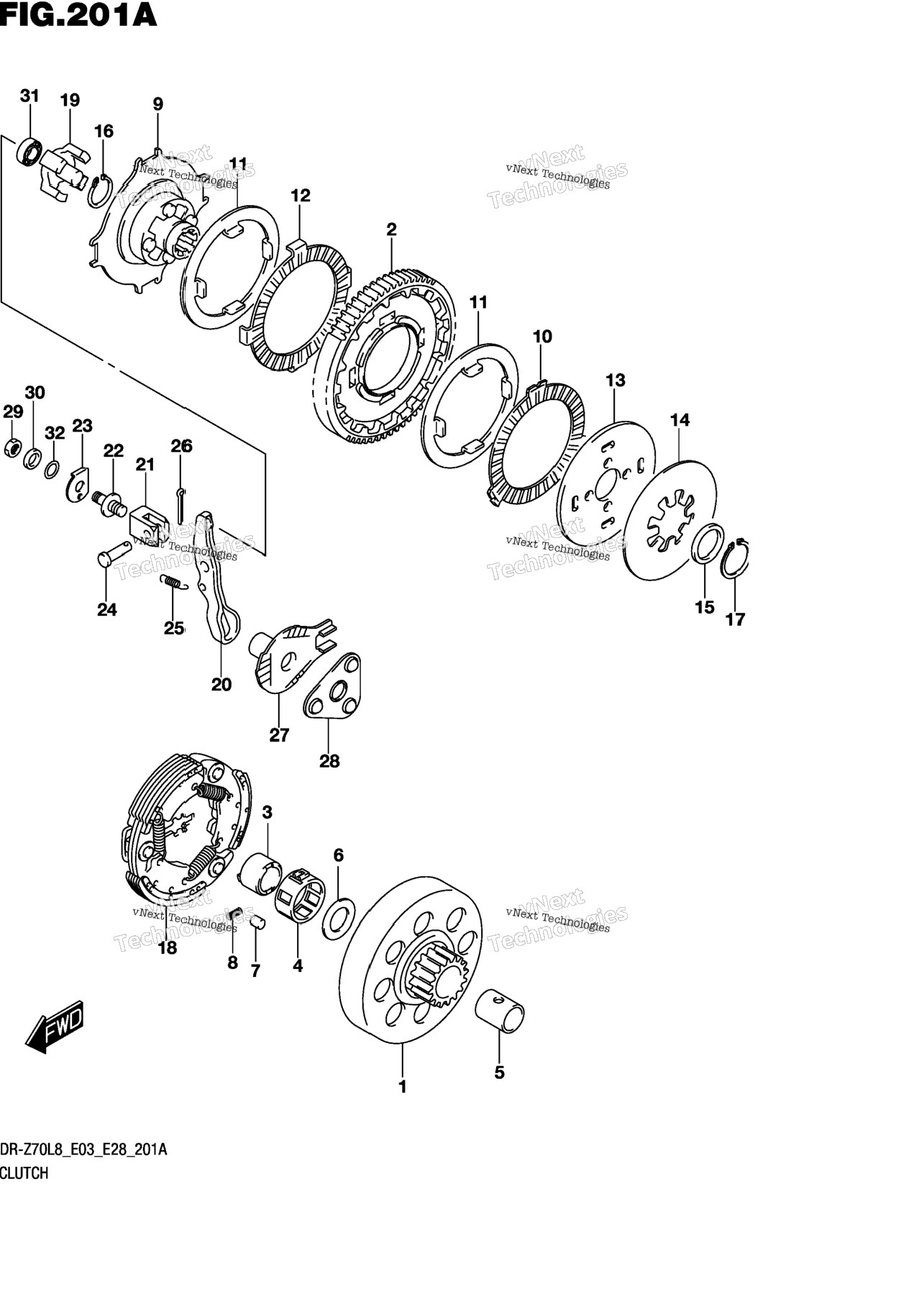

| 1 | 21110-02A03 | GEAR ASSY | 0 шт. | — | |
|
| 1 | 21110-02A03 | GEAR ASSY | 0 шт. | — | |
|
| 2 | 21210-36G00 | GEAR,PRIMARY DRIVEN (NT:65) | 0 шт. | — | |
|
| 3 | 21631-02A04 | RACE | 0 шт. | — | |
|
| 4 | 21652-30D01 | RETAINER | 0 шт. | — | |
|
| 5 | 09180-16031 | SPACER,16X21X23.5 (16X21X23.5 | 0 шт. | — | |
|
| 6 | 09181-16214 | SHIM (16X28X0.5) | 1 шт. | — | |
|
| 7 | 09261-07006 | ROLLER (7X10) | 0 шт. | — | |
|
| 8 | 09440-02003 | SPRING | 1 шт. | — | |
|
| 9 | 21410-09403 | HUB,SLEEVE | 0 шт. | — | |
|
| 10 | 21441-09D02 | PLATE,CLUTCH DRIVE (T:2.6) | 1 шт. | — | |
|
| 11 | 21451-14H00 | PLATE,CLUTCH DRIVEN (T:2.1) | 2 шт. | — | |
|
| 12 | 21452-35401 | PLATE,CLUTCH DRIVEN,NO.2 | 1 шт. | — | |
|
| 12 | 21452-35401 | PLATE,CLUTCH DRIVEN,NO.2 | 0 шт. | — | |
|
| 13 | 21461-30A00 | PLATE,CLUTCH PRESSURE (T:2.4) | 0 шт. | — | |
|
| 14 | 09164-22013 | WASHER | 0 шт. | — | |
|
| 15 | 09180-22033 | SPACER,22X28X4 (22X28X4) | 0 шт. | — | |
|
| 16 | 08331-31179 | CIRCLIP | 1 шт. | — | |
|
| 17 | 08331-31219 | CIRCLIP | 1 шт. | — | |
|
| 18 | 21501-02A02 | CLUTCH ASSY | 0 шт. | — | |
|
| 19 | 23121-30A01 | PIECE,CLUTCH PUSH | 0 шт. | — | |
|
| 20 | 23221-09405 | ARM | 0 шт. | — | |
|
| 21 | 23222-09401 | BOSS,CLUTCH RELEASE ARM | 0 шт. | — | |
|
| 22 | 23223-09404 | BOLT,CLUTCH RELEASE ADJUST | 1 шт. | — | |
|
| 23 | 09169-06046 | WASHER (6.5X22X1.2) | 1 шт. | — | |
|
| 24 | 09200-07005 | PIN | 0 шт. | — | |
|
| 25 | 09443-06053 | SPRING | 1 шт. | — | |
|
| 26 | 04111-1615A | PIN | 0 шт. | — | |
|
| 27 | 23230-30A01 | GUIDE,RELEASE BALL OUTER | 0 шт. | — | |
|
| 28 | 23250-35402 | BALL,CLUTCH RELEASE | 0 шт. | — | |
|
| 29 | 09140-06023 | NUT (6X3.6) | 1 шт. | — | |
|
| 30 | 09160-06123 | WASHER,6.5X13X3.2 (6.5X13X3.2 | 1 шт. | — | |
|
| 31 | 09266-16002 | BEARING (16X6) | 1 шт. | — | |
|
| 32 | 09280-06005 | .O RING (D:1.9,ID:5.7) | 1 шт. | — | |
|
