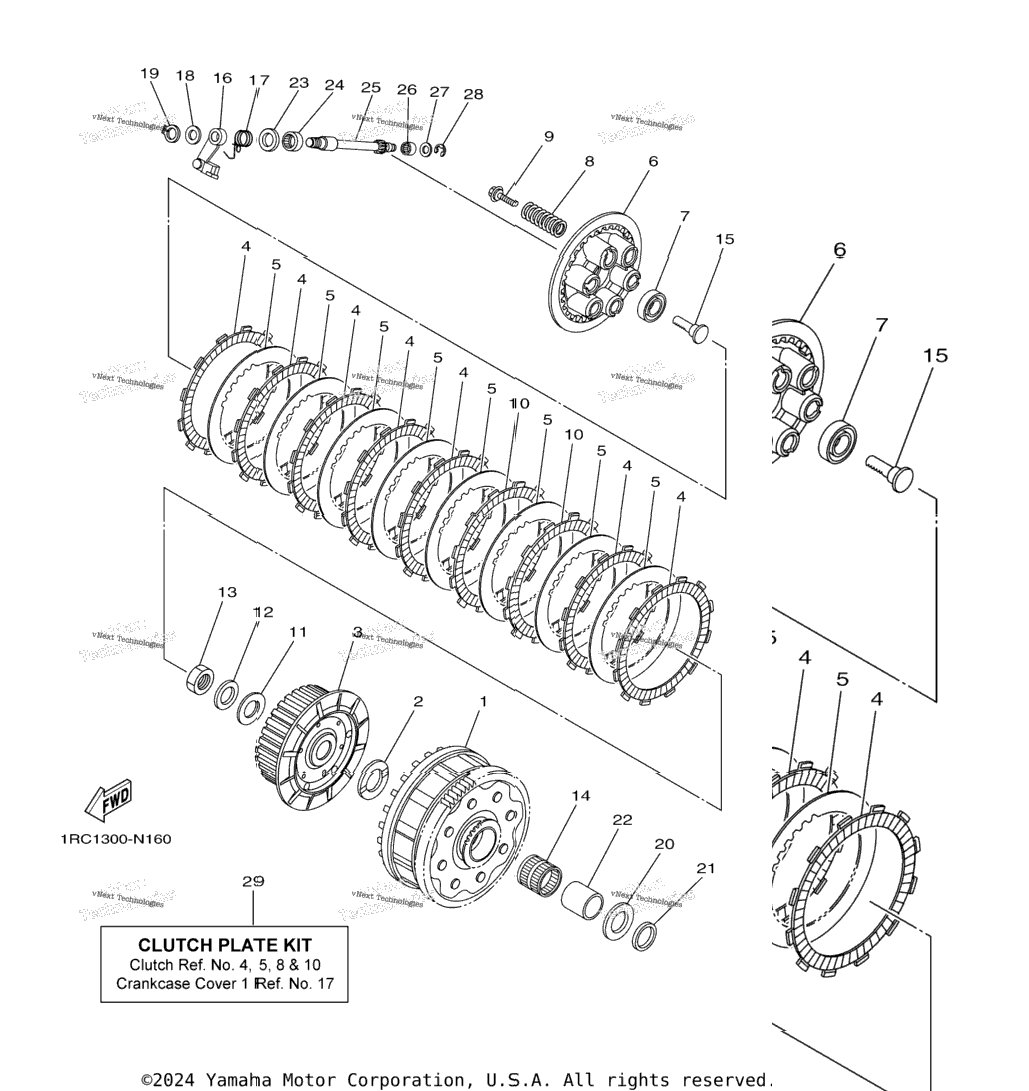

| 1 | 1RC-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 2 | 5VY-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 3 | 1RC-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 4 | 5TA-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 5 | 5VY-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH PLATE KIT | 8 шт. | — | |
|
| 6 | 5VY-16351-10-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 7 | 93306-00304-00 | Bearing | 1 шт. | — | |
|
| 8 | 90501-230A0-00 | Spring, Compression INCL. IN CLUTCH PLATE KIT | 6 шт. | — | |
|
| 9 | 90119-06257-00 | Bolt, With Washer | 6 шт. | — | |
|
| 10 | 1RC-16330-00-00 | Plate, Friction 2 INCL. IN CLUTCH PLATE KIT | 2 шт. | — | |
|
| 11 | 90201-20030-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 90208-20001-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 13 | 90179-20011-00 | Nut | 1 шт. | — | |
|
| 14 | 93310-33277-00 | Bearing | 1 шт. | — | |
|
| 15 | 4XV-16356-01-00 | Rod, Push 1 | 1 шт. | — | |
|
| 16 | 1RC-16340-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 17 | 90508-18051-00 | Spring, Torsion | 1 шт. | — | |
|
| 18 | 90201-10029-00 | Washer, Plate | 1 шт. | — | |
|
| 19 | 99009-10400-00 | Circlip | 1 шт. | — | |
|
| 20 | 5VY-16164-00-00 | Plate, Thrust 2 | 1 шт. | — | |
|
| 21 | 2C0-16164-00-00 | Plate, Thrust 2 | 1 шт. | — | |
|
| 22 | 1RC-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 23 | 93102-15212-00 | Oil Seal | 1 шт. | — | |
|
| 24 | 93315-21570-00 | Bearing | 1 шт. | — | |
|
| 25 | 5VY-16382-10-00 | Axle, Push Lever | 1 шт. | — | |
|
| 26 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 27 | 92907-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 28 | 99001-07600-00 | Circlip | 1 шт. | — | |
|
| 29 | 1RC-W001G-00 | Clutch Plate Kit NOT SHOWN | 0 шт. | — | |
|
