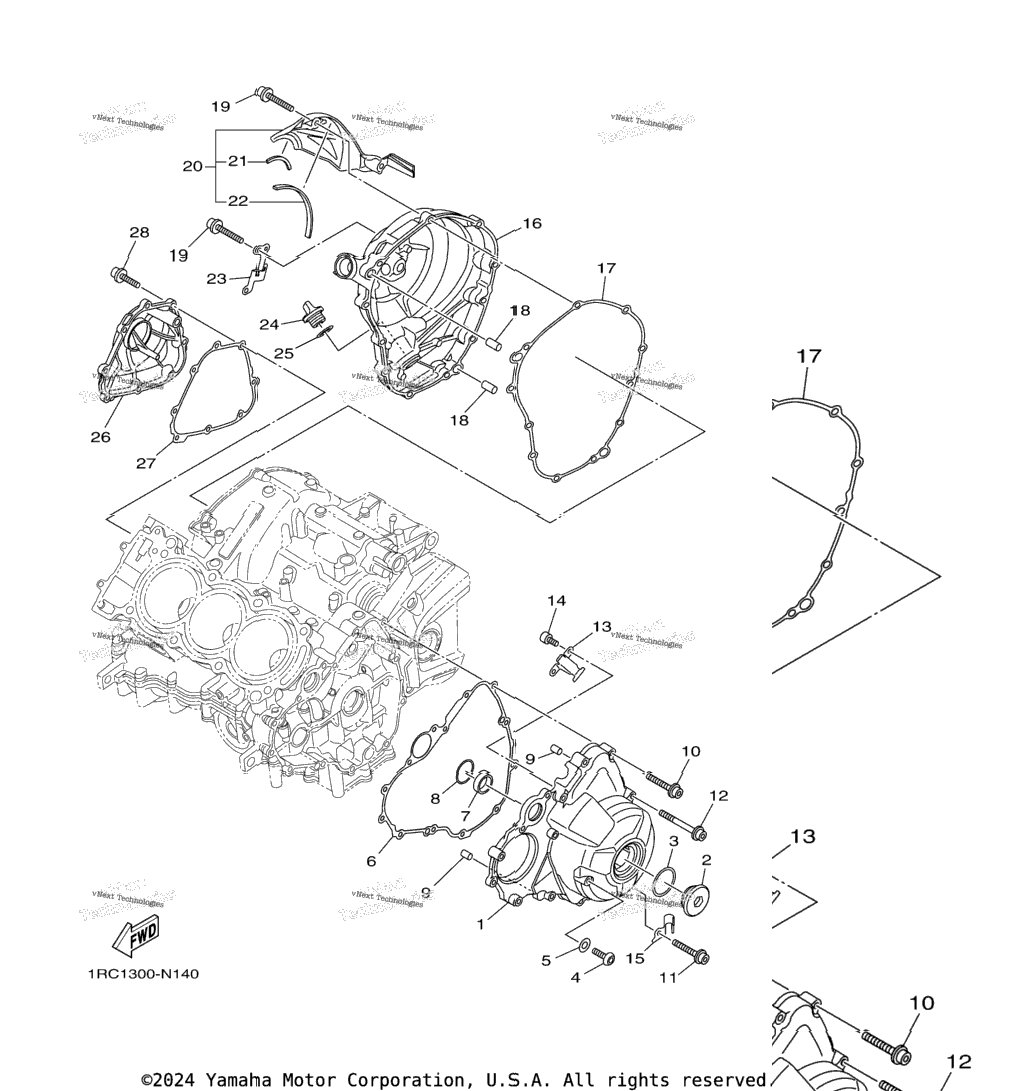

| 1 | 1RC-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-36005-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-357A3-00 | .O-Ring | 1 шт. | — | |
|
| 4 | 92017-08012-00 | Bolt, Button Head | 1 шт. | — | |
|
| 5 | 90430-08143-00 | .Gasket | 1 шт. | — | |
|
| 6 | 1RC-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 7 | 1RC-12564-00-00 | Pipe, Water | 1 шт. | — | |
|
| 8 | 93210-28543-00 | O-Ring | 1 шт. | — | |
|
| 9 | 99530-08012-00 | .Pin, Dowel | 2 шт. | — | |
|
| 11 | 90110-06389-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 90110-06394-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 13 | 1RC-15484-00-00 | Clamp 2 | 1 шт. | — | |
|
| 14 | 90110-06168-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 15 | 1RC-15199-00-00 | Bracket | 1 шт. | — | |
|
| 16 | 1RC-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 17 | 1RC-15461-00-00 | Gasket, Crankcase Cover 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 18 | 93610-20189-00 | Pin, Dowel | 2 шт. | — | |
|
| 19 | 90110-06388-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 19 | 90110-06388-00 | Bolt, Hexagon Socket Head | 11 шт. | — | |
|
| 20 | 1RC-15490-00-00 | Cover Assy | 1 шт. | — | |
|
| 21 | 1RC-15789-00-00 | . .Damper | 1 шт. | — | |
|
| 22 | 90520-03014-00 | . .Damper, Plate | 1 шт. | — | |
|
| 23 | 1RC-15191-00-00 | Plate | 1 шт. | — | |
|
| 24 | 5GJ-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 25 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 26 | 1RC-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 27 | 1RC-15456-00-00 | Gasket, Oil Pump Cover 1 | 1 шт. | — | |
|
| 28 | 90110-06396-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
