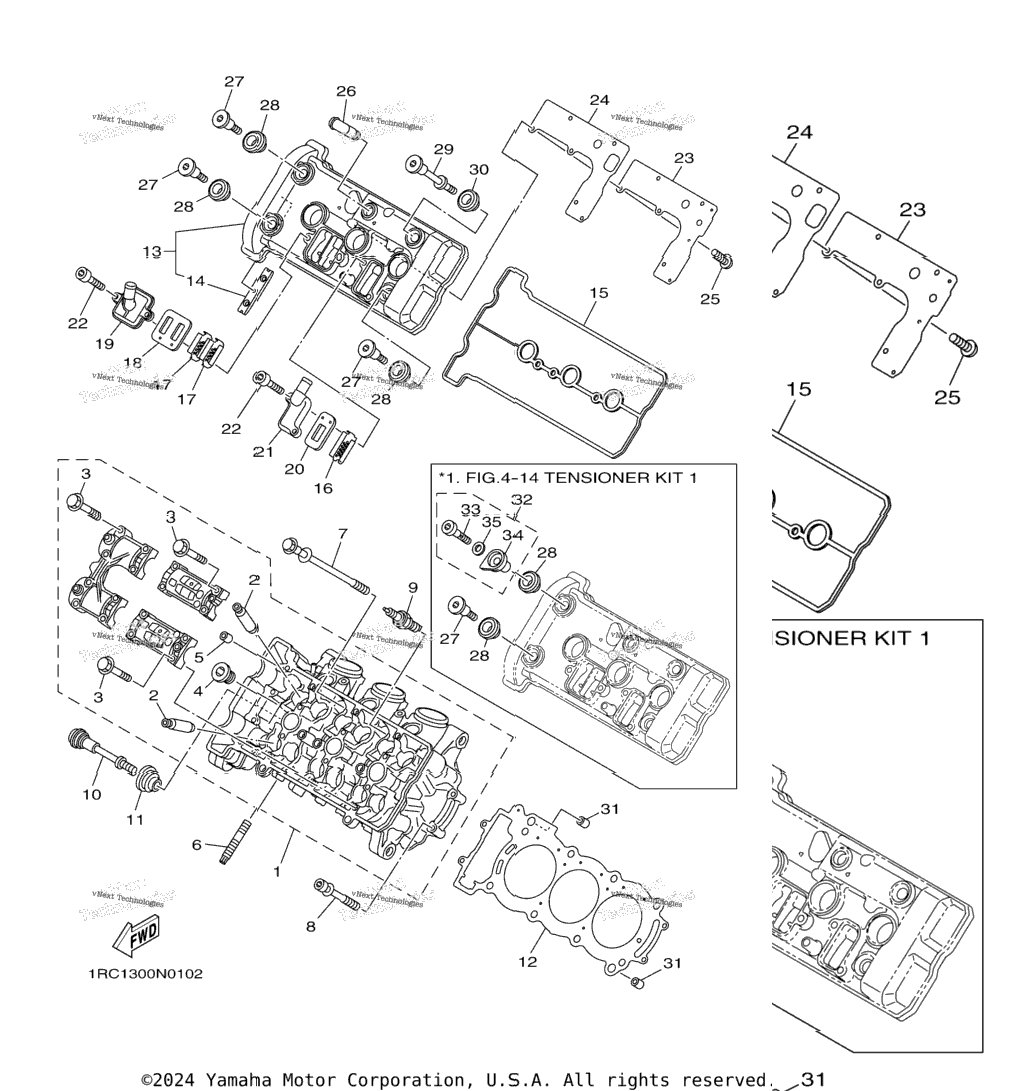

| 1 | 1RC-11101-09-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 2C0-11133-11-00 | . .Guide, Valve 1 | 12 шт. | — | |
|
| 3 | 90105-06027-00 | . .Bolt, Flange | 16 шт. | — | |
|
| 4 | 90340-18002-00 | . .Plug, Straight Screw | 2 шт. | — | |
|
| 5 | 91808-16023-00 | . .Pin, Dowel | 6 шт. | — | |
|
| 6 | 90116-08087-00 | Bolt, Stud | 6 шт. | — | |
|
| 7 | 90119-09015-00 | Bolt, With Washer | 8 шт. | — | |
|
| 8 | 90109-061F7-00 | Bolt | 4 шт. | — | |
|
| 9 | 94701-00431-00 | Plug, Spark (Ngk R Cpr9ea-9) | 3 шт. | — | |
|
| 10 | 90109-06293-00 | Bolt | 1 шт. | — | |
|
| 12 | 1RC-11181-00-00 | Gasket, Cylinder Head 1 | 1 шт. | — | |
|
| 13 | 1RC-11191-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 14 | 5BE-12241-00-00 | . Guide, Stopper 2 | 1 шт. | — | |
|
| 15 | 1RC-11193-00-00 | Gasket, Head Cover 1 | 1 шт. | — | |
|
| 16 | 5JW-1482K-01-00 | Plate | 1 шт. | — | |
|
| 17 | 5VY-1482K-00-00 | Plate | 2 шт. | — | |
|
| 18 | 5SL-14890-00-00 | Reed Valve Assy | 1 шт. | — | |
|
| 19 | 5SL-14899-00-00 | Cap, Case | 1 шт. | — | |
|
| 20 | 5PS-14890-00-00 | Reed Valve Assy | 1 шт. | — | |
|
| 21 | 5JW-14889-00-00 | Cap, Case | 1 шт. | — | |
|
| 22 | 90110-06175-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 23 | 1RC-11165-00-00 | Plate, Breather | 1 шт. | — | |
|
| 24 | 1RC-11169-00-00 | Gasket, Breather Cover | 1 шт. | — | |
|
| 25 | 90149-05037-00 | Screw | 5 шт. | — | |
|
| 26 | 4TR-11167-00-00 | Pipe, Breather 2 | 1 шт. | — | |
|
| 27 | 90109-066F0-00 | Bolt | 3 шт. | — | |
|
| 27 | 90109-066F0-00 | Bolt *NOTE-1 | 2 шт. | — | |
|
| 29 | 90109-06271-00 | Bolt | 1 шт. | — | |
|
| 29 | 5VY-111G-00-00 | Rubber, Mount 1 *NOTE-1 | 0 шт. | — | |
|
| 30 | 5VY-1111G-00-00 | Rubber, Mount 1 | 1 шт. | — | |
|
| 30 | 5VY-1111G-00-00 | Rubber, Mount 1 | 3 шт. | — | |
|
| 30 | 5VY-1111G-00-00 | Rubber, Mount 1 | 1 шт. | — | |
|
| 31 | 99530-12016-00 | Pin, Dowel | 2 шт. | — | |
|
| 34 | 99999-04254-00 | Tensioner Kit 1 *NOTE-1, SEE TECH BULLETIN M2016-004A | 0 шт. | — | |
|
| 35 | 99999-04254-00 | Tensioner Kit 1 *NOTE-1, SEE TECH BULLETIN M2016-004A | 0 шт. | — | |
|
| 36 | 1RC-12157-09-00 | . Bolt *NOTE-1 | 1 шт. | — | |
|
| 37 | 1RC-11478-09-00 | . Collar *NOTE-1 | 0 шт. | — | |
|
| 38 | 90430-06166-00 | . Gasket *NOTE-1 | 1 шт. | — | |
|
