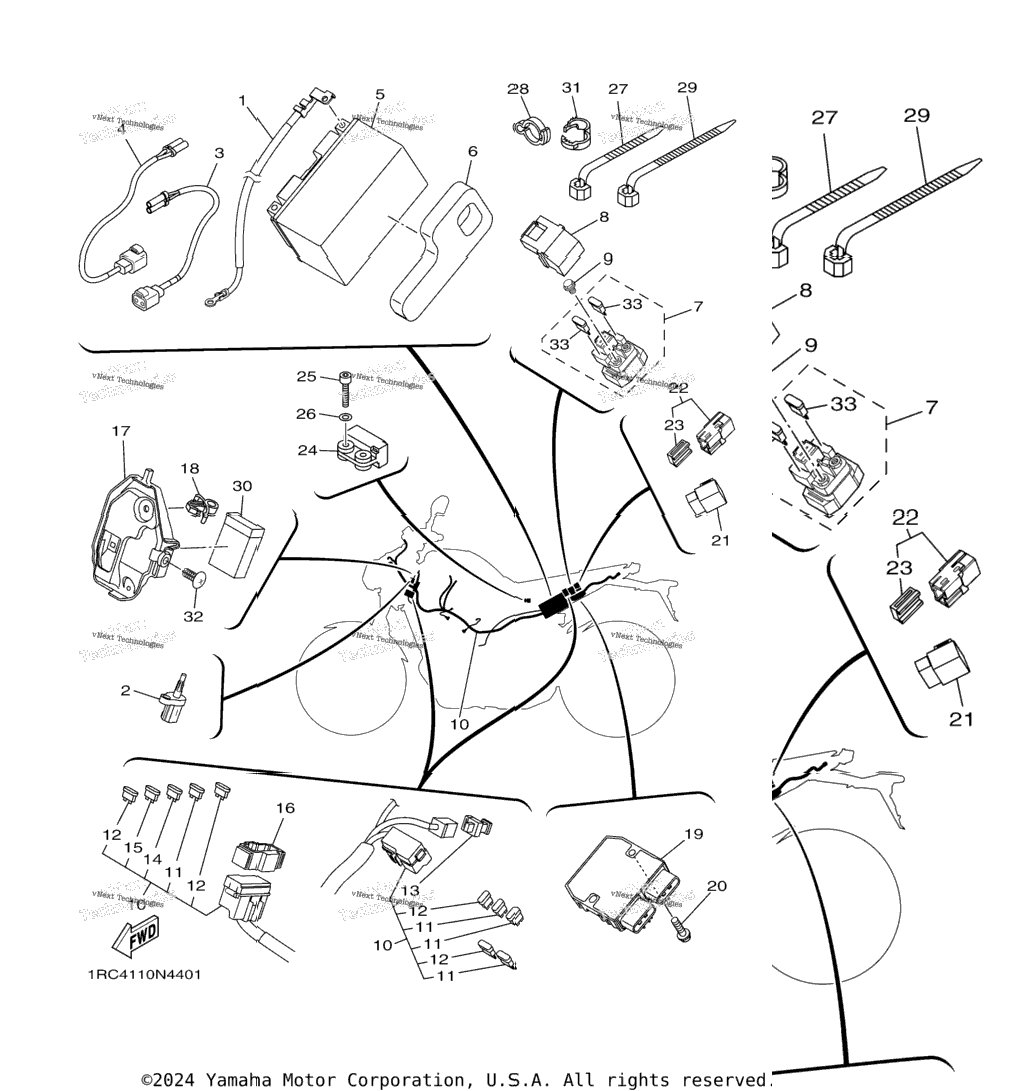

| 1 | 1RC-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 2 | 5YU-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 3 | 1RC-82309-00-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 4 | 1RC-82509-00-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 5 | 5VY-82100-00-00 | Battery Assy (Yuasa Ytz10s) | 1 шт. | — | |
|
| 6 | 1RC-8246K-00-00 | Spacer | 1 шт. | — | |
|
| 7 | 1RC-81940-00-00 | Starter Relay Assy | 1 шт. | — | |
|
| 8 | 5SL-82119-30-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 9 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 10 | 1RC-82590-10-00 | Wire Harness Assy | 1 шт. | — | |
|
| 11 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 4 шт. | — | |
|
| 12 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 4 шт. | — | |
|
| 13 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 14 | 5JJ-82151-80-00 | . .Fuse (2A-Bl) | 2 шт. | — | |
|
| 15 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 16 | 1RC-82544-00-00 | Clamp | 1 шт. | — | |
|
| 17 | 1RC-82599-00-00 | Cover, Connector | 1 шт. | — | |
|
| 18 | 90464-15157-00 | Clamp | 1 шт. | — | |
|
| 19 | 1D7-81960-01-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 20 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 21 | 5VK-81950-40-00 | Relay Assy (5Vk-40) | 1 шт. | — | |
|
| 22 | 1ST-81950-00-00 | Relay Assy (1St-00) | 1 шт. | — | |
|
| 23 | 5JJ-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 24 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 25 | 91312-04020-00 | .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 26 | 90201-04030-00 | Washer, Plate | 2 шт. | — | |
|
| 27 | 90464-13073-00 | Clamp | 1 шт. | — | |
|
| 28 | 90464-14010-00 | Clamp | 1 шт. | — | |
|
| 29 | 3MA-82591-00-00 | Band | 1 шт. | — | |
|
| 30 | 1RC-82589-00-00 | Protecter, Wire Harness | 1 шт. | — | |
|
| 31 | 90464-16001-00 | Clamp | 1 шт. | — | |
|
| 32 | 90269-07015-00 | Rivet | 1 шт. | — | |
|
| 33 | 42X-82151-00-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
