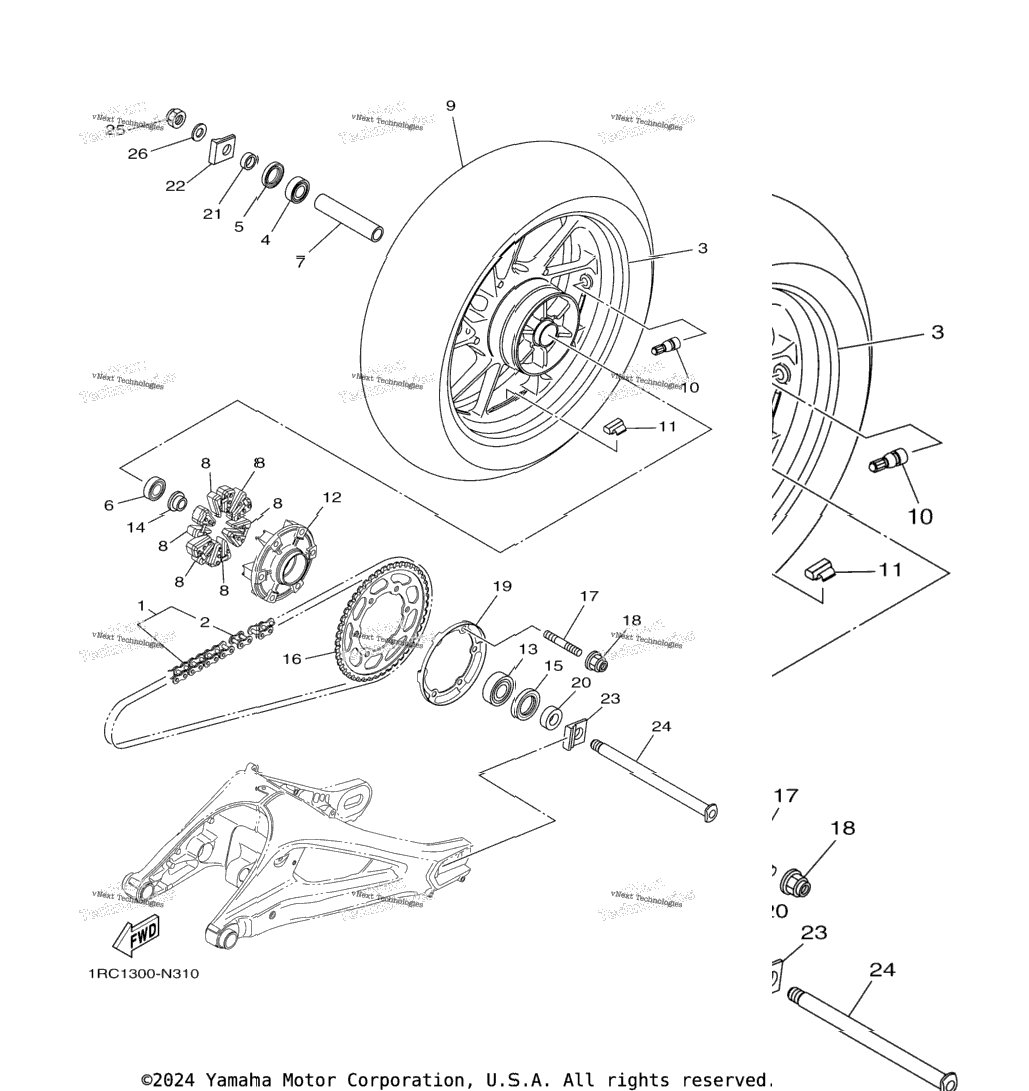

| 1 | 94582-31110-00 | Chain (Did 525V10-110Ll) | 1 шт. | — | |
|
| 2 | 94682-31031-00 | . .Joint, Chain (Did 525V10-Zj) | 1 шт. | — | |
|
| 3 | 1RC-25338-00-3X | Cast Wheel, Rear LGB/OS3 FOR DOM8 | 0 шт. | — | |
|
| 4 | 1RC-25338-00-P0 | Cast Wheel, Rear DPBM15 FOR DNMN | 1 шт. | — | |
|
| 5 | 1RC-25338-00-4X | Cast Wheel, Rear LGB/HTR FOR VRC1 | 0 шт. | — | |
|
| 6 | 93306-20480-00 | Bearing | 1 шт. | — | |
|
| 7 | 93102-28022-00 | Oil Seal | 1 шт. | — | |
|
| 8 | 93306-00416-00 | Bearing | 1 шт. | — | |
|
| 9 | 1D7-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 10 | 1RC-25364-00-00 | Damper | 6 шт. | — | |
|
| 11 | 94118-17077-00 | Tire (180/55Zr17m/C 73W D214) UR DUNLOP | 1 шт. | — | |
|
| 12 | 94118-17078-00 | Tire (180/55Zr17m/C 73W S20r) UR BRIDGESTONE | 1 шт. | — | |
|
| 13 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 14 | 5MT-25398-00-00 | Balancer, Wheel (10G) UR | 1 шт. | — | |
|
| 15 | 5MT-25398-10-00 | Balancer, Wheel (20G) UR | 1 шт. | — | |
|
| 16 | 5MT-25398-20-00 | Balancer, Wheel (30G) UR | 1 шт. | — | |
|
| 17 | 5JJ-25366-00-00 | Clutch, Hub | 1 шт. | — | |
|
| 18 | 93306-205B5-00 | Bearing | 1 шт. | — | |
|
| 19 | 1RC-25383-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 20 | 93106-40013-00 | Oil Seal | 1 шт. | — | |
|
| 21 | 1RC-25445-00-00 | Sprocket, Driven (45T) | 1 шт. | — | |
|
| 22 | 90116-10048-00 | Bolt, Stud | 6 шт. | — | |
|
| 23 | 95602-10200-00 | Nut, Self-Locking | 6 шт. | — | |
|
| 24 | 1RC-2537W-00-00 | Bracket 1 | 1 шт. | — | |
|
| 25 | 90387-20036-00 | Collar | 1 шт. | — | |
|
| 26 | 90387-20035-00 | Collar | 1 шт. | — | |
|
| 27 | 3SP-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 28 | 4NX-25389-00-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 29 | 1RC-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 30 | 90185-18009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 31 | 90201-18021-00 | Washer, Plate | 1 шт. | — | |
|
