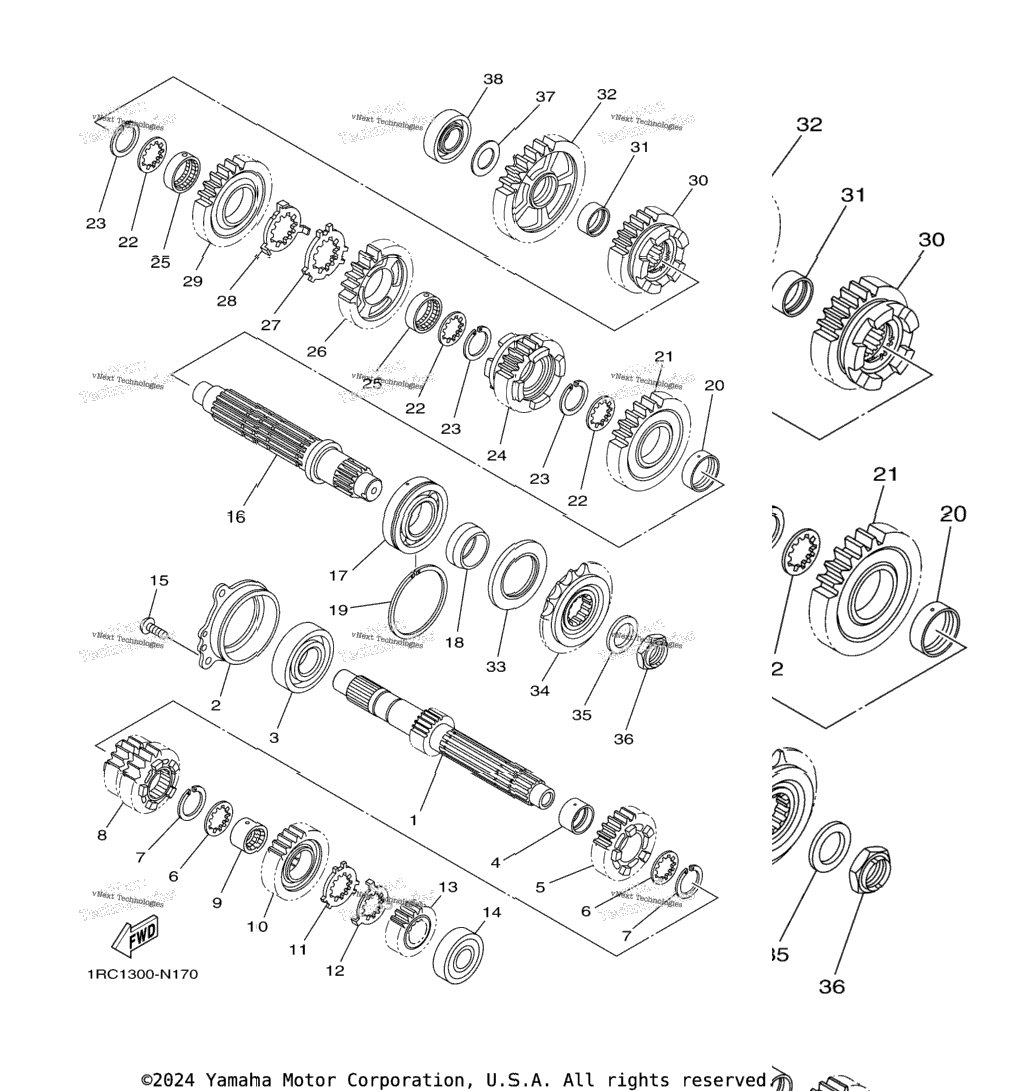

| 1 | 1RC-17411-00-00 | Axle, Main (15T) | 1 шт. | — | |
|
| 2 | 1RC-15163-00-00 | Housing, Bearing 1 | 1 шт. | — | |
|
| 3 | 93306-30534-00 | Bearing | 1 шт. | — | |
|
| 4 | 90387-25030-00 | Collar | 1 шт. | — | |
|
| 5 | 1RC-17151-00-00 | Gear, 5Th Pinion (21T) | 1 шт. | — | |
|
| 6 | 90209-21332-00 | Washer | 2 шт. | — | |
|
| 7 | 93440-25186-00 | Circlip | 2 шт. | — | |
|
| 8 | 1RC-17131-00-00 | Gear, 3Rd Pinion (21T/21T) | 1 шт. | — | |
|
| 9 | 90387-21003-00 | Collar | 1 шт. | — | |
|
| 10 | 1RC-17161-00-00 | Gear, 6Th Pinion (27T) | 1 шт. | — | |
|
| 11 | 90209-22352-00 | Washer | 1 шт. | — | |
|
| 12 | 90209-21351-00 | Washer | 1 шт. | — | |
|
| 13 | 1RC-17121-00-00 | Gear, 2Nd Pinion (19T) | 1 шт. | — | |
|
| 14 | 93306-20464-00 | Bearing | 1 шт. | — | |
|
| 15 | 90149-06082-00 | Screw | 3 шт. | — | |
|
| 16 | 1RC-17421-00-00 | Axle, Drive | 1 шт. | — | |
|
| 17 | 93306-20663-00 | Bearing | 1 шт. | — | |
|
| 18 | 90387-30012-00 | Collar | 1 шт. | — | |
|
| 19 | 93440-64199-00 | Circlip | 1 шт. | — | |
|
| 20 | 90387-31003-00 | Collar | 1 шт. | — | |
|
| 21 | 1RC-17221-00-00 | Gear, 2Nd Wheel (38T) | 0 шт. | — | |
|
| 22 | 90209-28008-00 | Washer | 3 шт. | — | |
|
| 23 | 93440-31187-00 | Circlip | 3 шт. | — | |
|
| 24 | 1RC-17261-00-00 | Gear, 6Th Wheel (28T) | 1 шт. | — | |
|
| 25 | 90387-28004-00 | Collar | 2 шт. | — | |
|
| 26 | 1RC-17241-00-00 | Gear, 4Th Wheel (29T) | 1 шт. | — | |
|
| 27 | 90214-29002-00 | Washer, Claw | 1 шт. | — | |
|
| 28 | 90214-28002-00 | Washer, Claw | 1 шт. | — | |
|
| 29 | 1RC-17231-00-00 | Gear, 3Rd Wheel (34T) | 1 шт. | — | |
|
| 30 | 1RC-17251-00-00 | Gear, 5Th Wheel (25T) | 1 шт. | — | |
|
| 31 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 32 | 1RC-17211-00-00 | Gear, 1St Wheel (40T) | 1 шт. | — | |
|
| 33 | 93102-40030-00 | Oil Seal | 1 шт. | — | |
|
| 34 | 5PS-17460-00-00 | Sprocket, Drive (16T) | 1 шт. | — | |
|
| 35 | 90208-22002-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 36 | 90179-22018-00 | Nut | 1 шт. | — | |
|
| 37 | 90201-20008-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 93306-20464-00 | Bearing | 1 шт. | — | |
|
