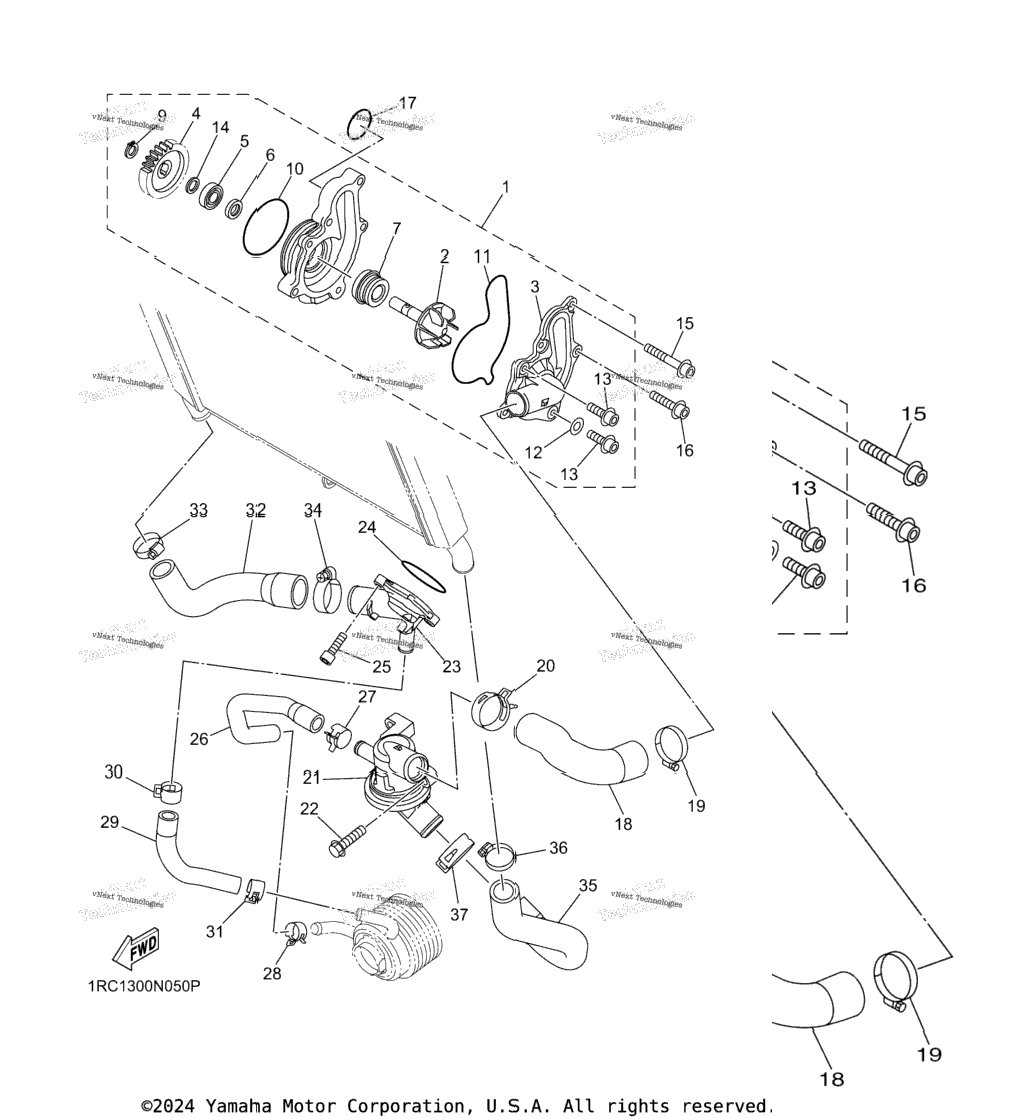

| 1 | 1RC-12420-00-00 | Water Pump Assy | 1 шт. | — | |
|
| 2 | 1RC-12450-00-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 3 | 1RC-12422-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 4 | 1RC-12459-00-00 | . .Gear, Impeller Shaft | 1 шт. | — | |
|
| 5 | 93306-00106-00 | . .Bearing | 1 шт. | — | |
|
| 6 | 93101-12173-00 | . Oil Seal | 1 шт. | — | |
|
| 7 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 8 | 99009-12400-00 | . Circlip | 1 шт. | — | |
|
| 9 | 93210-61750-00 | . .O-Ring | 1 шт. | — | |
|
| 10 | 1RC-12439-00-00 | . .O-Ring | 1 шт. | — | |
|
| 11 | 90430-06014-00 | . Gasket | 1 шт. | — | |
|
| 12 | 90110-06396-00 | . Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 13 | 90201-12541-00 | . .Washer, Plate | 1 шт. | — | |
|
| 14 | 90110-06394-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 15 | 90110-06388-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 16 | 93210-30694-00 | O-Ring | 1 шт. | — | |
|
| 17 | 1RC-12577-00-00 | Hose 2 | 1 шт. | — | |
|
| 18 | 90450-38040-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 19 | 90467-310A0-00 | Clip | 1 шт. | — | |
|
| 20 | 1RC-12410-00-00 | Thermostat Assy | 1 шт. | — | |
|
| 21 | 95822-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 22 | 1RC-12469-00-00 | Joint 1 | 1 шт. | — | |
|
| 23 | 93210-46044-00 | O-Ring | 1 шт. | — | |
|
| 24 | 90110-06274-00 | .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 25 | 1RC-12578-00-00 | Hose 3 | 1 шт. | — | |
|
| 26 | 90467-200A0-00 | Clip | 1 шт. | — | |
|
| 27 | 90467-17128-00 | Clip | 1 шт. | — | |
|
| 28 | 1RC-12579-00-00 | Hose 4 | 1 шт. | — | |
|
| 29 | 90467-200A0-00 | Clip | 1 шт. | — | |
|
| 30 | 90467-17128-00 | Clip | 1 шт. | — | |
|
| 31 | 1RC-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 32 | 90450-32003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 33 | 90450-38040-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 34 | 1RC-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 35 | 90450-32003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 36 | 90467-310A0-00 | Clip | 1 шт. | — | |
|
