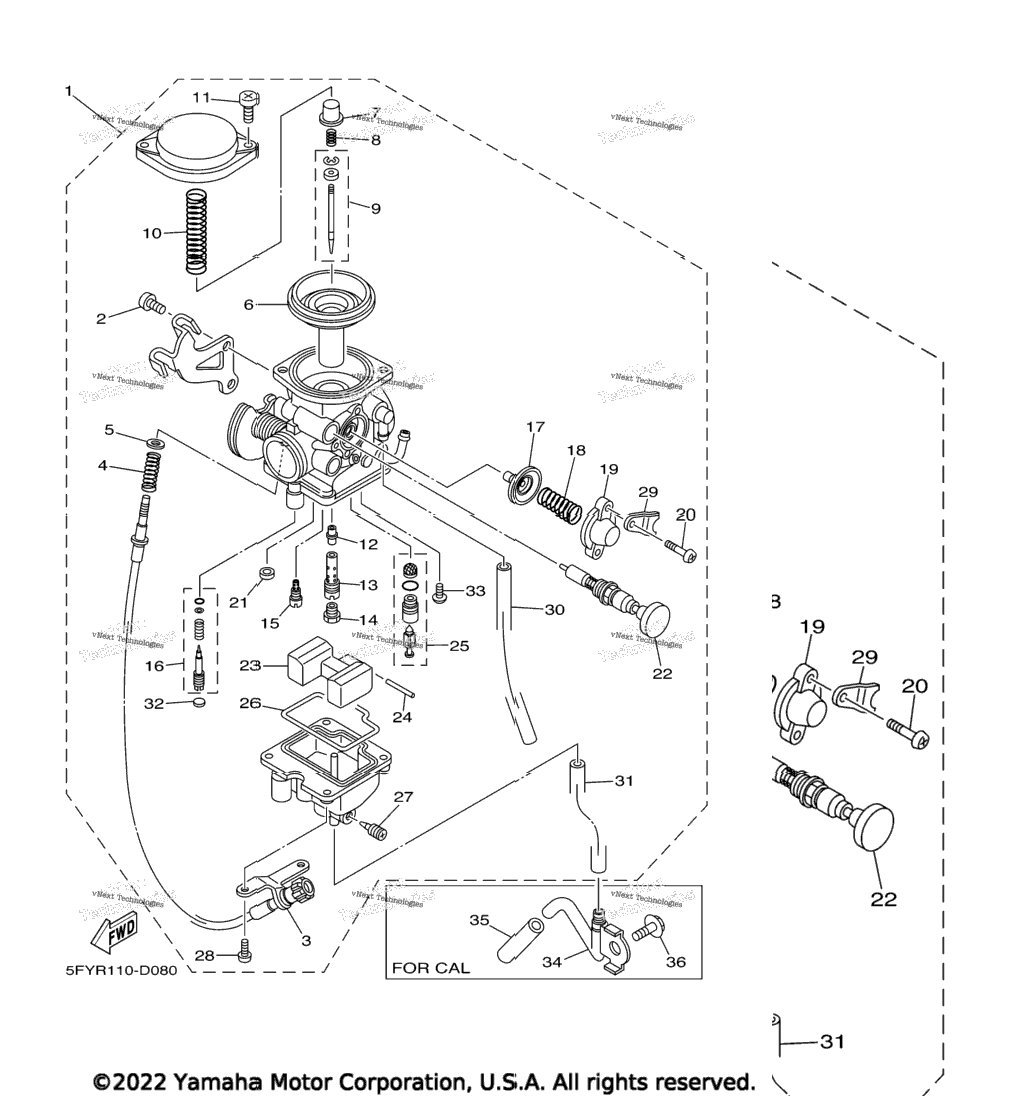

| 1 | 5FY-14301-00-00 | Carburetor Assy 1 FOR CAL | 0 шт. | — | |
|
| 1 | 5FY-14301-10-00 | Carburetor Assy 1 FOR U49 | 1 шт. | — | |
|
| 2 | 97801-05010-00 | . .Throttle Screw | 2 шт. | — | |
|
| 3 | 5LB-14321-00-00 | . .Screw, Throttle | 1 шт. | — | |
|
| 4 | 2JX-14333-00-00 | . .Spring, Throttle Stop | 1 шт. | — | |
|
| 5 | 5LB-14357-00-00 | . .Washer, Plain | 1 шт. | — | |
|
| 6 | 5LB-1434A-00-00 | . .Suction Piston Assy | 1 шт. | — | |
|
| 7 | 5LB-14936-00-00 | . .Seat, Spring | 1 шт. | — | |
|
| 8 | 5LB-14275-00-00 | . .Spring | 1 шт. | — | |
|
| 9 | 5FY-14336-00-00 | . .Needle | 1 шт. | — | |
|
| 10 | 5LB-14286-00-00 | . .Spring | 1 шт. | — | |
|
| 11 | 5LB-14216-00-00 | . .Screw | 2 шт. | — | |
|
| 12 | 5LB-14341-00-00 | . .Nozzle, Main | 1 шт. | — | |
|
| 13 | 5LB-14341-10-00 | . .Bleed, Main Nozzle | 1 шт. | — | |
|
| 14 | 5FY-14343-63-00 | . .Jet, Main (#126) | 1 шт. | — | |
|
| 15 | 5LB-14342-65-00 | . .Jet, Pilot (#31) | 1 шт. | — | |
|
| 16 | 5LB-14105-00-00 | . .Pilot Screw Set | 1 шт. | — | |
|
| 17 | 5LB-14368-00-00 | . .Diaphragm Assy 1 | 1 шт. | — | |
|
| 18 | 5LB-14589-00-00 | . .Spring | 1 шт. | — | |
|
| 19 | 5LB-14293-00-00 | . .Cover 1 | 1 шт. | — | |
|
| 20 | 214-24535-00-00 | . .Screw, Lever Fitting | 2 шт. | — | |
|
| 21 | 50M-14355-00-00 | . .Plug | 1 шт. | — | |
|
| 22 | 5FY-14371-00-00 | . .Plunger, Starter | 1 шт. | — | |
|
| 23 | 5LB-14385-00-00 | . .Float | 1 шт. | — | |
|
| 24 | 5LB-14386-00-00 | . .Pin, Float | 1 шт. | — | |
|
| 25 | 5LB-14390-00-00 | . .Needle Valve Assy | 1 шт. | — | |
|
| 26 | 5LB-14384-00-00 | . .Gasket, Float Chamber | 1 шт. | — | |
|
| 27 | 4JP-14323-00-00 | . .Drain, Scre | 1 шт. | — | |
|
| 28 | 5LB-14592-00-00 | . .Screw | 4 шт. | — | |
|
| 29 | 5LB-14292-00-00 | . .Bracket 2 | 1 шт. | — | |
|
| 30 | 5FY-14197-00-00 | . .Pipe | 1 шт. | — | |
|
| 31 | 5FY-14196-00-00 | . .Pipe, Over Flow 1 | 1 шт. | — | |
|
| 32 | 4KN-1432A-00-00 | . .Plug | 1 шт. | — | |
|
| 33 | 98901-04006-00 | . .Screw, Bind | 1 шт. | — | |
|
| 34 | 2JX-14193-00-00 | Pipe FOR CAL | 0 шт. | — | |
|
| 35 | 2JX-14148-01-00 | Pipe FOR CAL | 0 шт. | — | |
|
| 36 | 95807-08012-00 | Bolt, Flange FOR CAL | 0 шт. | — | |
|
