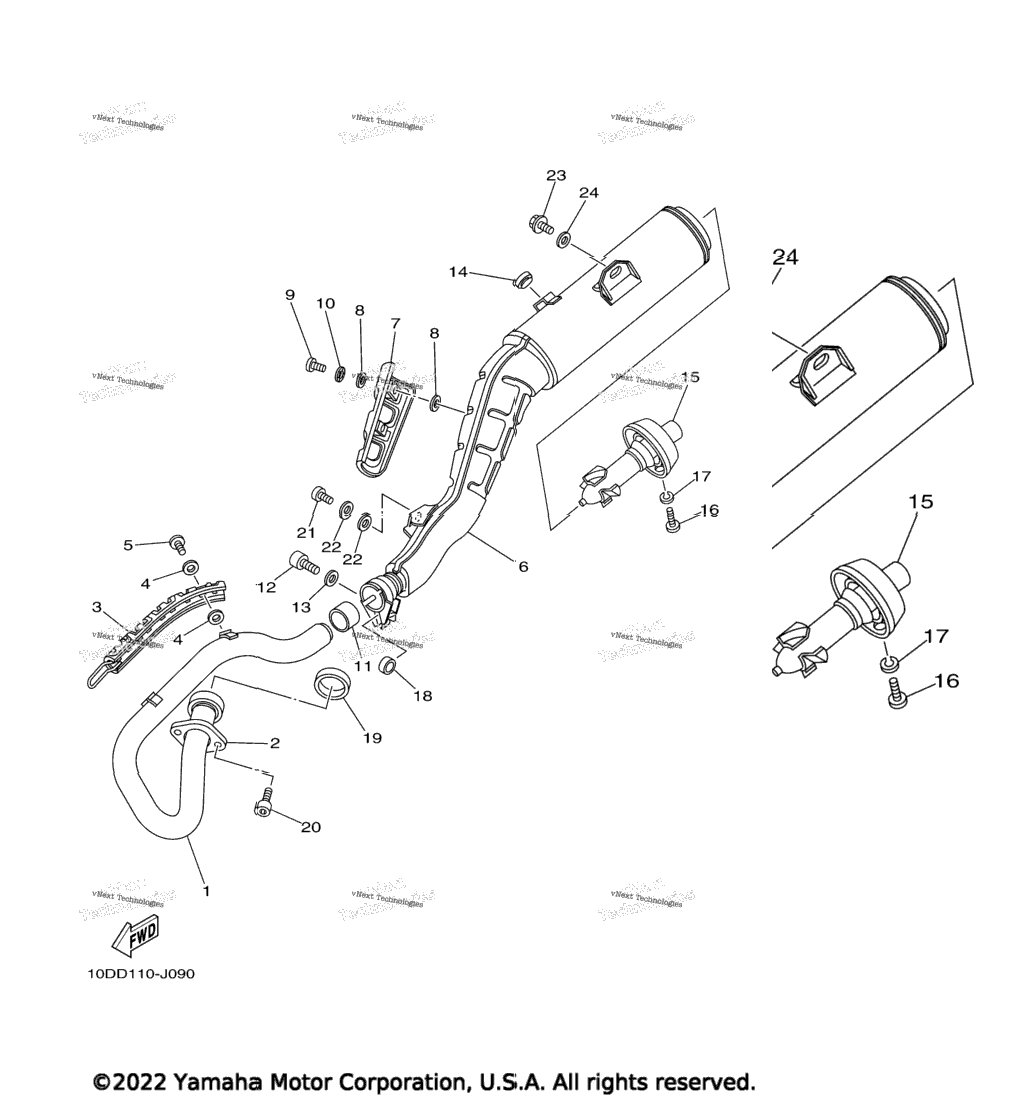

| 1 | 2JX-14611-02-00 | Pipe, Exhaust 1 | 1 шт. | — | |
|
| 2 | 5H0-14612-01-00 | Nut, Ring | 1 шт. | — | |
|
| 3 | 5LB-14628-00-00 | Protector, Exhaust Pipe | 1 шт. | — | |
|
| 4 | 90201-05015-00 | Washer, Plate | 4 шт. | — | |
|
| 5 | 98907-06010-00 | Screw, Bind | 2 шт. | — | |
|
| 6 | 2JX-14711-10-00 | Muffler 1 | 1 шт. | — | |
|
| 7 | 2JX-14728-00-00 | Protector, Muffler 2 | 1 шт. | — | |
|
| 8 | 90202-05191-00 | Washer, Plate | 4 шт. | — | |
|
| 9 | 98907-06010-00 | Screw, Bind | 2 шт. | — | |
|
| 10 | 90206-06090-00 | Washer, Wave | 2 шт. | — | |
|
| 11 | 3YF-14714-00-00 | Gasket, Muffler | 1 шт. | — | |
|
| 12 | 91317-08025-00 | Bolt,Hex.Socket Head | 1 шт. | — | |
|
| 13 | 92907-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 14 | 22W-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 15 | 1RH-14752-01-00 | Pipe, Outlet | 1 шт. | — | |
|
| 16 | 98507-06010-00 | Screw, Pan Head | 1 шт. | — | |
|
| 17 | 92907-06600-00 | Washer, Plate | 1 шт. | — | |
|
| 18 | 90387-080K1-00 | Collar | 1 шт. | — | |
|
| 19 | 4BE-14613-00-00 | Gasket, Exhaust Pipe | 1 шт. | — | |
|
| 20 | 91312-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 21 | 91317-08020-00 | Bolt,Hex.Socket Head | 1 шт. | — | |
|
| 22 | 90201-08326-00 | Washer, Plate | 2 шт. | — | |
|
| 23 | 95817-08016-00 | Bolt, Flange | 1 шт. | — | |
|
| 24 | 90201-08326-00 | Washer, Plate | 1 шт. | — | |
|
