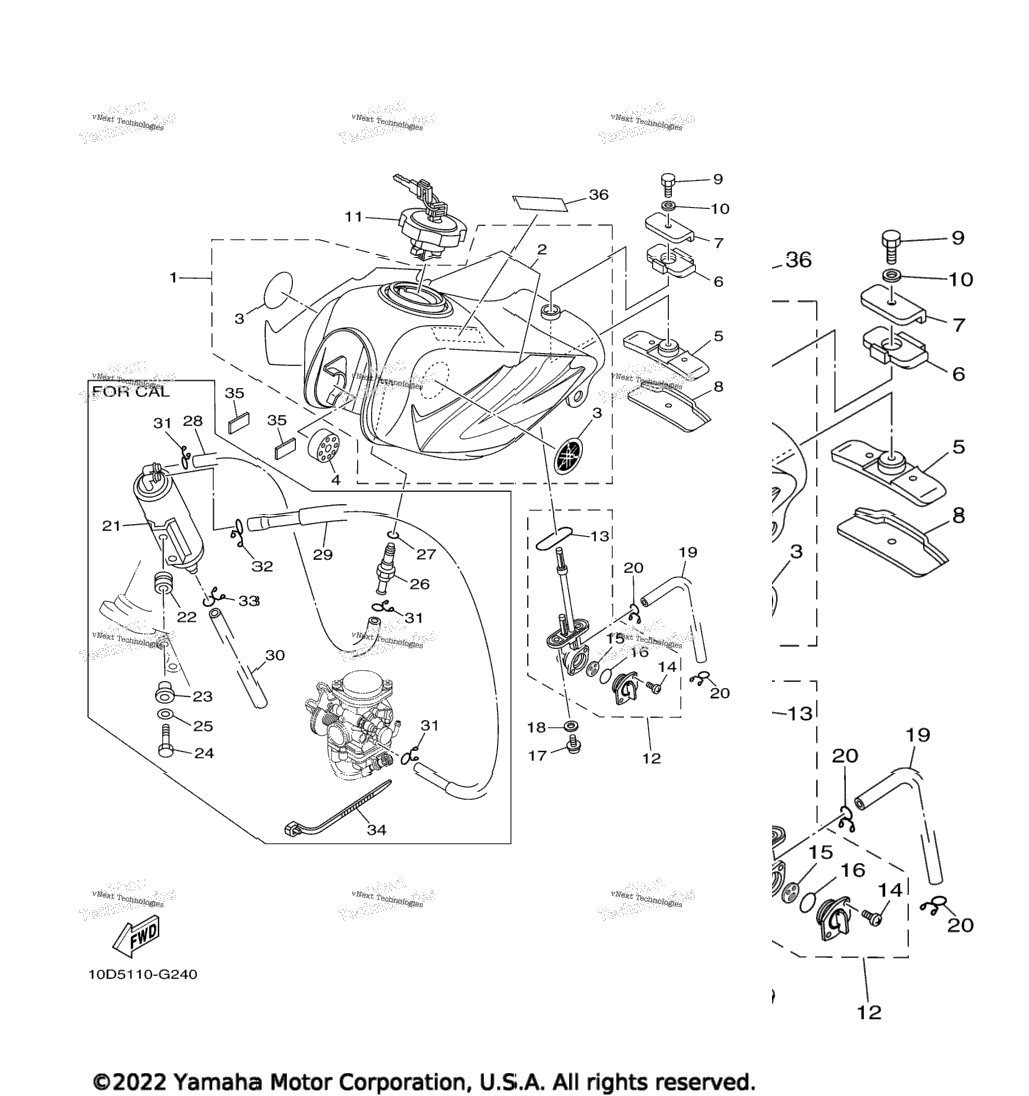

| 1 | 5RS-Y2410-10-X9 | Fuel Tank Comp DPBMC (FOR U49) | 1 шт. | — | |
|
| 2 | 5RS-Y2410-30-X1 | Fuel Tank Comp DPBMC (FOR CAL) | 0 шт. | — | |
|
| 3 | 10D-24240-30-00 | . .Graphic Set | 1 шт. | — | |
|
| 4 | 5VX-2411B-00-00 | . .Tuning Fork Mark | 2 шт. | — | |
|
| 5 | 4L0-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 6 | 30X-24182-01-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 7 | 30X-24183-01-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 8 | 30X-24186-01-00 | Washer, Special | 1 шт. | — | |
|
| 9 | 30X-24187-00-00 | Washer, Special | 1 шт. | — | |
|
| 10 | 97007-06012-00 | Bolt | 1 шт. | — | |
|
| 11 | 92907-06600-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 51K-24602-10-00 | Cap Assy FOR CAL | 0 шт. | — | |
|
| 13 | 11H-24602-10-00 | Cap Assy FOR U49 | 1 шт. | — | |
|
| 14 | 23F-24500-20-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 15 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 16 | 98507-03008-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 17 | 3AC-24523-00-00 | . .Valve Packing | 1 шт. | — | |
|
| 18 | 3AJ-24534-10-00 | . .Seal, Cock | 1 шт. | — | |
|
| 19 | 90149-06011-00 | Screw | 2 шт. | — | |
|
| 20 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 21 | 90445-10041-00 | Hose (L110) | 1 шт. | — | |
|
| 22 | 90467-09006-00 | Clip | 2 шт. | — | |
|
| 23 | 4BE-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 24 | 90480-15342-00 | Grommet FOR CAL | 0 шт. | — | |
|
| 25 | 90387-063G3-00 | Collar FOR CAL | 0 шт. | — | |
|
| 26 | 97007-06025-00 | Bolt FOR CAL | 0 шт. | — | |
|
| 27 | 92907-06600-00 | Washer, Plate FOR CAL | 0 шт. | — | |
|
| 28 | 20K-24180-00-00 | Roll Over Valve Assy FOR CAL | 0 шт. | — | |
|
| 29 | 93210-10166-00 | O-Ring FOR CAL | 0 шт. | — | |
|
| 30 | 90445-10017-00 | Hose FOR CAL | 0 шт. | — | |
|
| 31 | 90445-10045-00 | Hose FOR CAL | 0 шт. | — | |
|
| 32 | 90445-11M27-00 | Hose (L240) FOR CAL | 0 шт. | — | |
|
| 33 | 90467-09006-00 | Clip FOR CAL | 0 шт. | — | |
|
| 34 | 90467-10008-00 | Clip FOR CAL | 0 шт. | — | |
|
| 35 | 90467-11106-00 | Clip FOR CAL | 0 шт. | — | |
|
| 36 | 90464-13073-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 37 | 2JX-24141-00-00 | Protector, Fuel Tank | 2 шт. | — | |
|
| 38 | 5GK-2118K-00-00 | Label, Caution | 1 шт. | — | |
|
