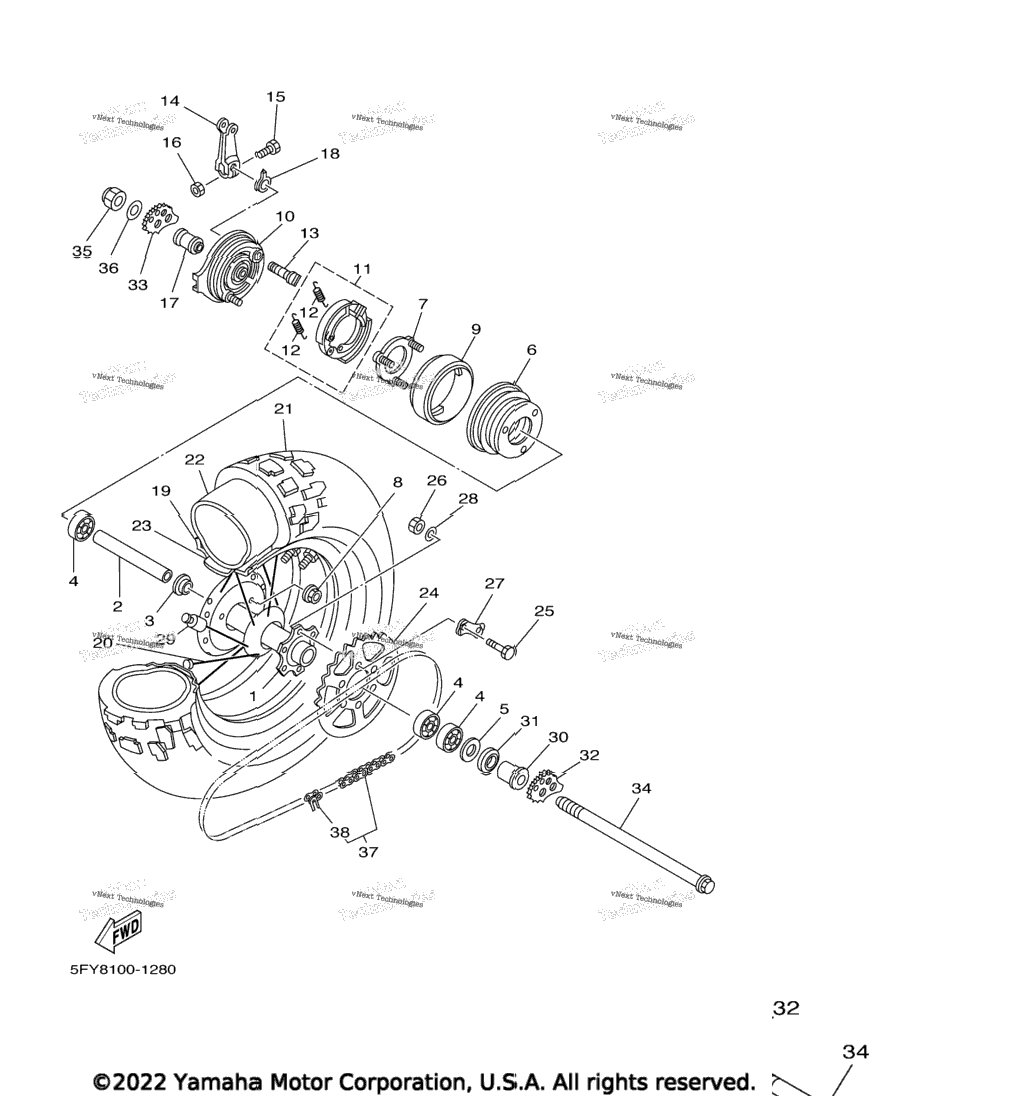

| 1 | 2JX-25311-00-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 90560-17305-00 | Spacer | 1 шт. | — | |
|
| 3 | 152-25115-00-00 | Flange, Spacer 1 | 1 шт. | — | |
|
| 4 | 93306-20348-00 | Bearing | 3 шт. | — | |
|
| 5 | 93102-25311-00 | Oil Seal (Fpj 25-44-8 Ts) | 1 шт. | — | |
|
| 6 | 5V7-2511E-00-35 | Drum, Brake SL FOR DPBMC | 1 шт. | — | |
|
| 7 | 54G-25185-00-00 | Ring 1 | 1 шт. | — | |
|
| 8 | 90179-08410-00 | Nut | 3 шт. | — | |
|
| 9 | 2JX-25336-00-00 | Ring 2 | 1 шт. | — | |
|
| 10 | 2JX-25321-02-35 | Plate, Brake Shoe SL FOR DPBMC | 1 шт. | — | |
|
| 11 | 4KN-W253E-11-00 | Brake Shoe Kit | 1 шт. | — | |
|
| 12 | 90506-15260-00 | . .Spring, Tension | 2 шт. | — | |
|
| 13 | 3Y6-25351-00-00 | Camshaft | 1 шт. | — | |
|
| 14 | 2N3-25155-00-00 | Lever, Camshaft 1 | 1 шт. | — | |
|
| 15 | 90101-06278-00 | Bolt | 1 шт. | — | |
|
| 16 | 95307-06600-00 | .Nut | 1 шт. | — | |
|
| 17 | 90387-171T1-00 | Collar | 1 шт. | — | |
|
| 18 | 2JX-2533A-00-00 | Plate, Indicator | 1 шт. | — | |
|
| 19 | 94445-14605-00 | Rim (Mt4.50-14 M/C) | 1 шт. | — | |
|
| 20 | 2JX-25304-21-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 21 | 94118-145U1-00 | Tire (180/80-14 M/C 78P Tw34) BRIDGESTONE | 1 шт. | — | |
|
| 22 | 94218-14251-00 | Tube (180/80-14 M/C Tr4) BRIDGESTONE | 1 шт. | — | |
|
| 23 | 94318-14149-00 | Band, Rim (4.50-14) BRIDGESTONE | 1 шт. | — | |
|
| 24 | 15A-25450-20-00 | Sprocket, Driven (50T) | 1 шт. | — | |
|
| 25 | 90109-08618-00 | Bolt | 6 шт. | — | |
|
| 26 | 90185-08089-00 | Nut, Self-Locking | 6 шт. | — | |
|
| 27 | 90215-08160-00 | Washer, Lock | 3 шт. | — | |
|
| 28 | 90201-086P8-00 | Washer, Plate | 6 шт. | — | |
|
| 29 | 3HT-25398-00-00 | Balancer, Wheel (15G) UN | 1 шт. | — | |
|
| 30 | 90387-171T2-00 | Collar | 1 шт. | — | |
|
| 31 | 36R-25367-00-00 | Cover, Hub Dust | 1 шт. | — | |
|
| 32 | 3Y1-25388-01-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 33 | 3Y1-25389-00-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 34 | 2JX-25381-11-00 | Axle, Wheel | 1 шт. | — | |
|
| 35 | 90185-16002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 36 | 90201-164H4-00 | Washer, Plate | 1 шт. | — | |
|
| 37 | 94580-88122-00 | Chain (Did 428Hg-122L) | 1 шт. | — | |
|
| 38 | 94680-88001-00 | . .Joint, Chain (Did 428Hg) | 1 шт. | — | |
|
