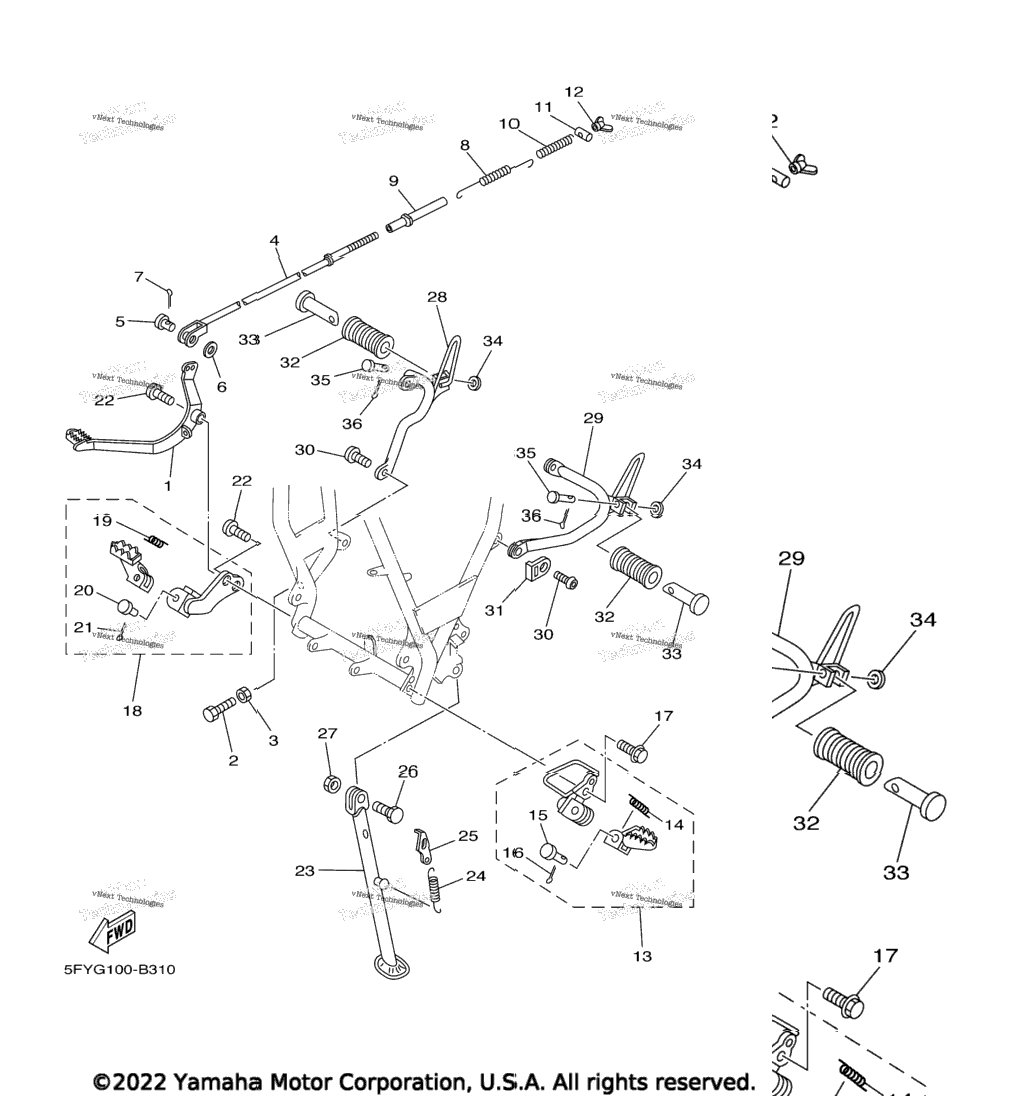

| 1 | 2JX-27211-00-90 | Pedal, Brake ZK FOR DPBMC | 1 шт. | — | |
|
| 2 | 97007-06020-00 | Bolt | 1 шт. | — | |
|
| 3 | 95307-06700-00 | Nut | 1 шт. | — | |
|
| 4 | 2JX-27231-00-00 | Rod, Brake | 1 шт. | — | |
|
| 5 | 90240-06076-00 | Pin, Clevis | 1 шт. | — | |
|
| 6 | 92907-06200-00 | Washer | 1 шт. | — | |
|
| 7 | 91401-20012-00 | Pin, Cotter | 1 шт. | — | |
|
| 8 | 90506-18289-00 | Spring, Tension | 1 шт. | — | |
|
| 9 | 1M1-27244-00-00 | Cover | 1 шт. | — | |
|
| 10 | 90501-10245-00 | Spring, Compression | 1 шт. | — | |
|
| 11 | 90249-12008-00 | Pin | 1 шт. | — | |
|
| 12 | 90175-06013-00 | Nut, Wing | 1 шт. | — | |
|
| 13 | 2JX-27410-00-90 | Front Footrest Assy (Left) ZK FOR DPBMC | 1 шт. | — | |
|
| 14 | 90508-20023-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 15 | 91701-08038-00 | . .Pin | 1 шт. | — | |
|
| 16 | 91401-25015-00 | . .Pin, Cotter | 1 шт. | — | |
|
| 17 | 95827-12025-00 | Bolt, Flange | 1 шт. | — | |
|
| 18 | 15A-27420-02-90 | Front Footrest Assy (Right) ZK FOR DPBMC | 1 шт. | — | |
|
| 19 | 90508-20023-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 20 | 91701-08038-00 | . .Pin | 1 шт. | — | |
|
| 21 | 91401-25015-00 | . .Pin, Cotter | 1 шт. | — | |
|
| 22 | 90111-10004-00 | Bolt,Hex. Socket Button | 2 шт. | — | |
|
| 23 | 2JX-27311-02-00 | Stand, Side | 1 шт. | — | |
|
| 24 | 90506-29360-00 | Spring, Tension | 1 шт. | — | |
|
| 25 | 5RS-27315-00-00 | Link, Side Stand | 1 шт. | — | |
|
| 26 | 90109-10473-00 | Bolt | 1 шт. | — | |
|
| 27 | 90185-10037-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 28 | 2JX-27442-11-00 | Bracket 2 | 1 шт. | — | |
|
| 29 | 5RS-27432-01-00 | Bracket 1 | 1 шт. | — | |
|
| 30 | 92017-08016-00 | Bolt, Button Head | 4 шт. | — | |
|
| 31 | 2JX-27437-00-00 | Washer, Special | 1 шт. | — | |
|
| 32 | 120-27433-00-00 | Cover, Rear Footrest | 2 шт. | — | |
|
| 33 | 120-27431-00-00 | Footrest, Rear 1 | 2 шт. | — | |
|
| 34 | 90201-20279-00 | Washer, Plate | 2 шт. | — | |
|
| 35 | 91701-06032-00 | Pin | 2 шт. | — | |
|
| 36 | 91401-20012-00 | Pin, Cotter | 2 шт. | — | |
|
