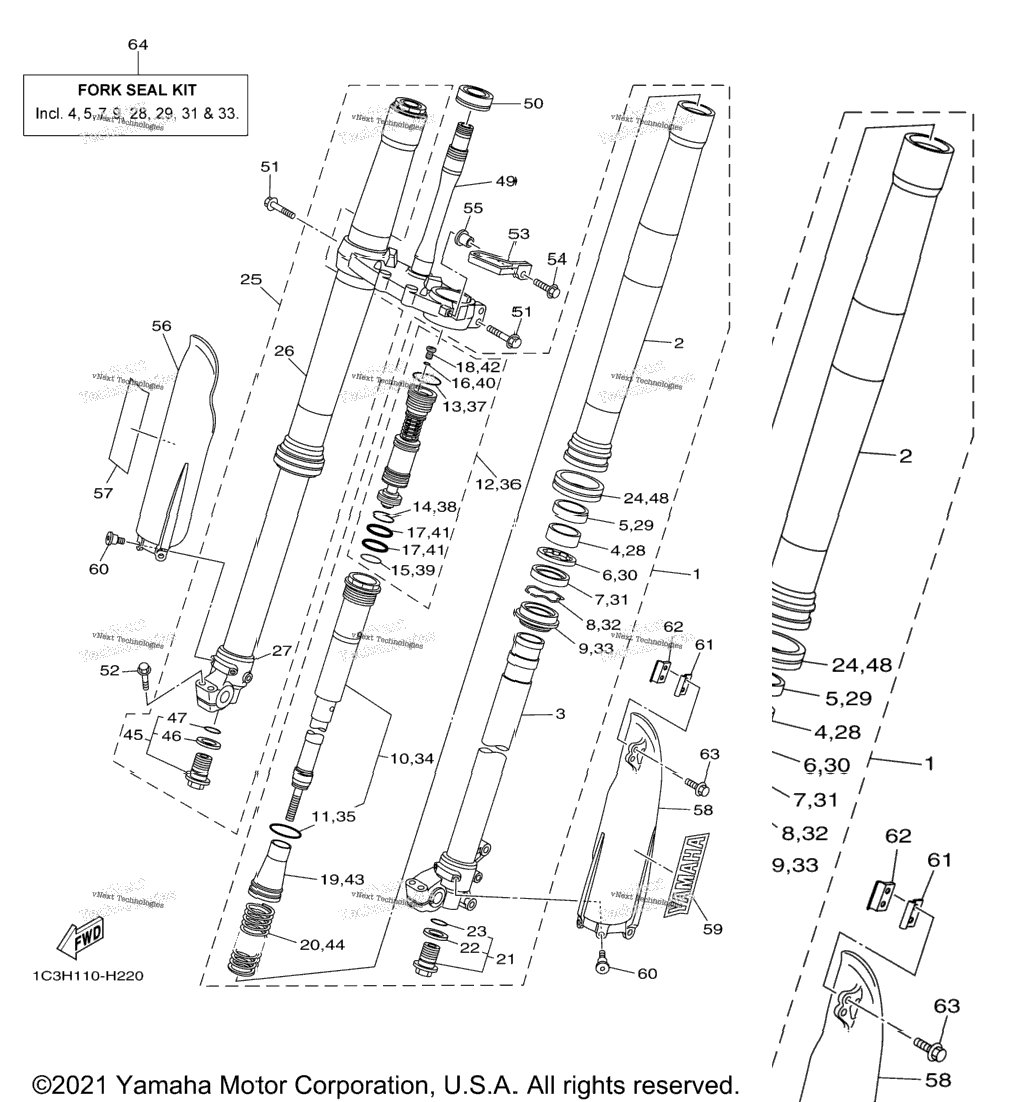

| 1 | 1P8-23102-D0-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 1C3-23136-P0-00 | . .Tube, Outer (R.H) | 1 шт. | — | |
|
| 3 | 5XC-23120-N0-00 | . . Inner Tube Comp. 2 | 1 шт. | — | |
|
| 4 | 5XE-23171-L0-00 | . .Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 5 | 5XE-23125-L0-00 | . .Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 6 | 5XC-23146-00-00 | . Washer, Oil Seal | 1 шт. | — | |
|
| 7 | 1C3-23145-M0-00 | . . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 8 | 5XE-23153-L0-00 | . .Ring, Snap | 1 шт. | — | |
|
| 9 | 5XE-23144-L0-00 | . .Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 10 | 5XC-23170-P0-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 11 | 1C3-23147-L0-00 | . . .O-Ring | 1 шт. | — | |
|
| 12 | 1P8-2316A-P0-00 | . .Valve Comp | 1 шт. | — | |
|
| 13 | 1C3-23188-L0-00 | . . .O-Ring | 1 шт. | — | |
|
| 14 | 1C3-23188-N0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 15 | 1C3-23188-P0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 16 | 1C3-23188-R0-00 | . . .O-Ring | 1 шт. | — | |
|
| 17 | 1AE-23147-00-00 | . . .O-Ring | 2 шт. | — | |
|
| 18 | 1C3-23190-L0-00 | . . ..Air Valve Comp | 1 шт. | — | |
|
| 19 | 1C3-23142-L0-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 20 | 5XC-23141-M1-00 | . . .Spring, Front Fork(K=4.3N/ | 0 шт. | — | |
|
| 21 | 5XC-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 22 | 2HH-23158-L0-00 | . . ..Gasket | 1 шт. | — | |
|
| 23 | 276-23114-00-00 | . . ..Gasket | 1 шт. | — | |
|
| 24 | 5XC-2314F-00-00 | . .Protecter Guide Comp., 1 | 1 шт. | — | |
|
| 25 | 1P8-23103-D0-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 26 | 1C3-23136-P0-00 | . .Tube, Outer (R.H) | 1 шт. | — | |
|
| 27 | 5XC-23110-N0-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 28 | 5XE-23171-L0-00 | . .Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 29 | 5XE-23125-L0-00 | . .Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 30 | 5XC-23146-00-00 | . Washer, Oil Seal | 1 шт. | — | |
|
| 31 | 1C3-23145-M0-00 | . . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 32 | 5XE-23153-L0-00 | . .Ring, Snap | 1 шт. | — | |
|
| 33 | 5XE-23144-L0-00 | . .Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 34 | 5XC-23170-P0-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 35 | 1C3-23147-L0-00 | . . .O-Ring | 1 шт. | — | |
|
| 36 | 1P8-2316A-P0-00 | . .Valve Comp | 1 шт. | — | |
|
| 37 | 1C3-23188-L0-00 | . . .O-Ring | 1 шт. | — | |
|
| 38 | 1C3-23188-N0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 39 | 1C3-23188-P0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 40 | 1C3-23188-R0-00 | . . .O-Ring | 1 шт. | — | |
|
| 41 | 1AE-23147-00-00 | . . .O-Ring | 2 шт. | — | |
|
| 42 | 1C3-23190-L0-00 | . . ..Air Valve Comp | 1 шт. | — | |
|
| 43 | 1C3-23142-L0-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 44 | 5XC-23141-M1-00 | . . .Spring, Front Fork(K=4.3N/ | 0 шт. | — | |
|
| 45 | 5XC-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 46 | 2HH-23158-L0-00 | . . ..Gasket | 1 шт. | — | |
|
| 47 | 276-23114-00-00 | . . ..Gasket | 1 шт. | — | |
|
| 48 | 5XC-2314F-00-00 | . .Protecter Guide Comp., 1 | 1 шт. | — | |
|
| 49 | 1P8-23340-M0-00 | Under Bracket Comp | 1 шт. | — | |
|
| 50 | 93332-00081-00 | Bearing | 1 шт. | — | |
|
| 51 | 90105-08134-00 | Bolt, Flange | 4 шт. | — | |
|
| 52 | 90105-08154-00 | Bolt, Flange | 4 шт. | — | |
|
| 53 | 5XE-23389-00-00 | Guide, Cable | 1 шт. | — | |
|
| 54 | 90105-06107-00 | Bolt, Flange | 1 шт. | — | |
|
| 55 | 90387-06104-00 | Collar | 1 шт. | — | |
|
| 56 | 5XC-2315J-00-00 | Protector 2 | 1 шт. | — | |
|
| 57 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 58 | 5XC-2315H-00-00 | Protector 1 | 1 шт. | — | |
|
| 59 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 60 | 90109-06232-00 | Bolt | 6 шт. | — | |
|
| 61 | 17D-23466-00-00 | Clamp | 1 шт. | — | |
|
| 62 | 17D-23467-00-00 | Clamp | 1 шт. | — | |
|
| 63 | 90105-06178-00 | Bolt, Flange | 2 шт. | — | |
|
| 64 | 1C3-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
