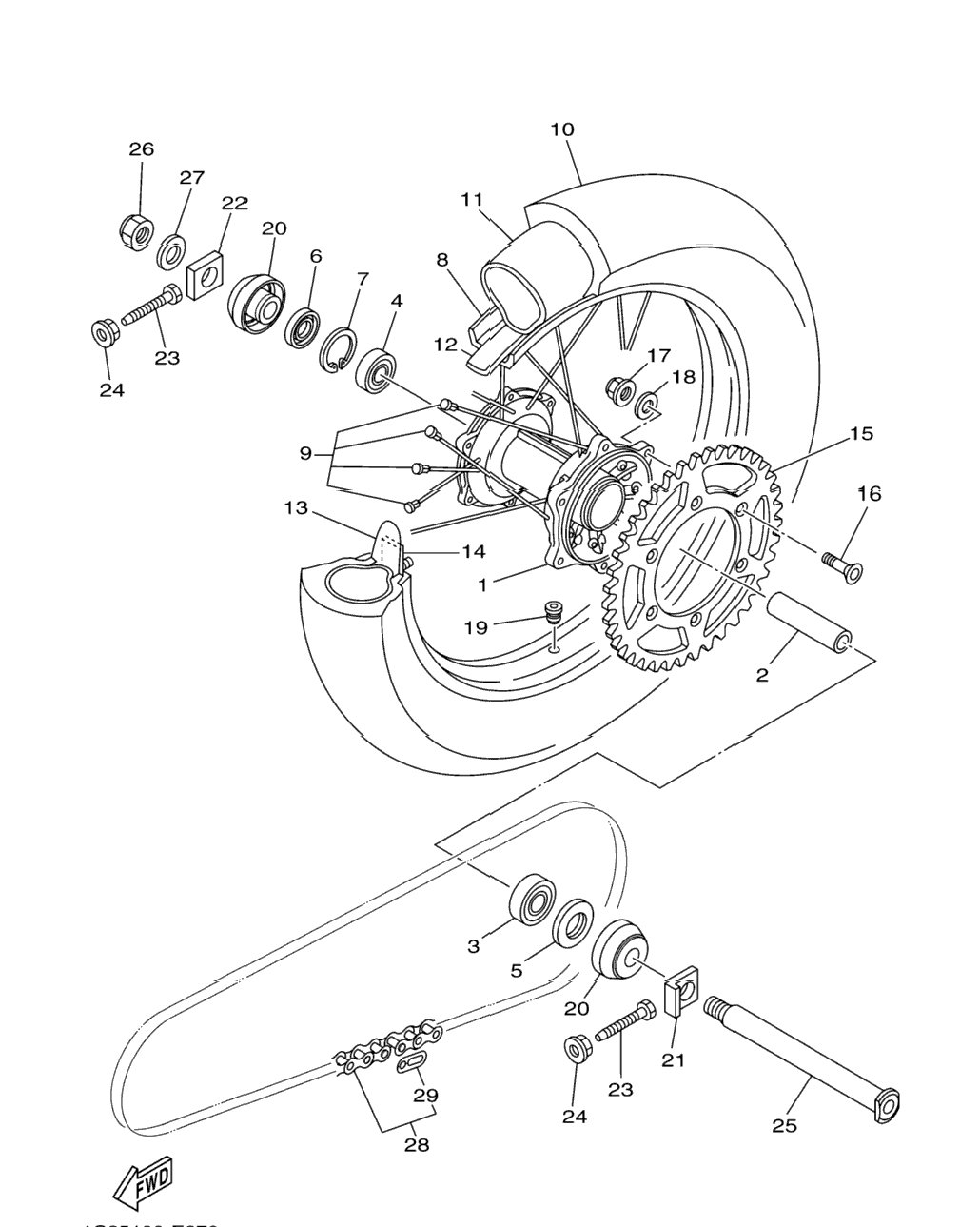

| 1 | 5ET-25311-00-00 | .Hub, Rear | 1 шт. | — | |
|
| 2 | 5ET-25317-00-00 | .Spacer, Bearing | 1 шт. | — | |
|
| 3 | 93306-27212-00 | .Bearing | 1 шт. | — | |
|
| 4 | 93306-07202-00 | .Bearing | 1 шт. | — | |
|
| 5 | 93106-30001-00 | .Oil Seal | 1 шт. | — | |
|
| 6 | 93106-30045-00 | .Oil Seal | 1 шт. | — | |
|
| 7 | 99009-45500-00 | .Circlip | 1 шт. | — | |
|
| 8 | 94421-19005-00 | Rim (2.15-19) | 1 шт. | — | |
|
| 9 | 5HD-25304-00-00 | .Spoke Set, Rear | 1 шт. | — | |
|
| 10 | 94111-19015-00 | Tire (110/90-19 62M D756) DUNLOP | 0 шт. | — | |
|
| 11 | 94211-19273-00 | Tube (110/90-19 M/C Tr4) DUNLOP | 1 шт. | — | |
|
| 12 | 94311-19155-00 | Band, Rim (25-19) DUNLOP | 1 шт. | — | |
|
| 13 | 3JE-25394-00-00 | .Spacer, Bead | 1 шт. | — | |
|
| 14 | 4XM-25364-00-00 | .Damper | 1 шт. | — | |
|
| 15 | 1C3-25448-00-00 | Sprocket, Driven (48T) AP | 1 шт. | — | |
|
| 16 | 1C3-25452-00-00 | Sprocket, Driven (52T) AP | 1 шт. | — | |
|
| 17 | 1C3-25451-00-00 | Sprocket, Driven (51T) AP | 1 шт. | — | |
|
| 18 | 1C3-25447-00-00 | Sprocket, Driven (47T) AP | 1 шт. | — | |
|
| 19 | 1C3-25449-00-00 | Sprocket, Driven (49T) AP | 1 шт. | — | |
|
| 20 | 1C3-25450-00-00 | Sprocket, Driven (50T) STD | 1 шт. | — | |
|
| 21 | 90109-08078-00 | Bolt | 6 шт. | — | |
|
| 22 | 90185-08008-00 | .Nut, Self-Locking | 6 шт. | — | |
|
| 23 | 90201-08048-00 | Washer, Plate | 6 шт. | — | |
|
| 24 | 90480-08608-00 | .Grommet | 1 шт. | — | |
|
| 25 | 5TJ-2530S-80-00 | Collar Assy | 2 шт. | — | |
|
| 26 | 1C3-25388-H0-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 27 | 1C3-25389-H0-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 28 | 90101-08006-00 | Bolt | 2 шт. | — | |
|
| 29 | 90179-08019-00 | Nut | 2 шт. | — | |
|
| 30 | 1C3-25381-90-00 | Axle, Wheel | 1 шт. | — | |
|
| 31 | 90185-20002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 32 | 90201-20020-00 | Washer, Plate | 1 шт. | — | |
|
| 33 | 9Y582-28113-00 | Chain (Did520dma2-114Ll) | 1 шт. | — | |
|
| 34 | 94682-28001-00 | . . .Joint, Chain(Did520dm G&B- | 1 шт. | — | |
|
