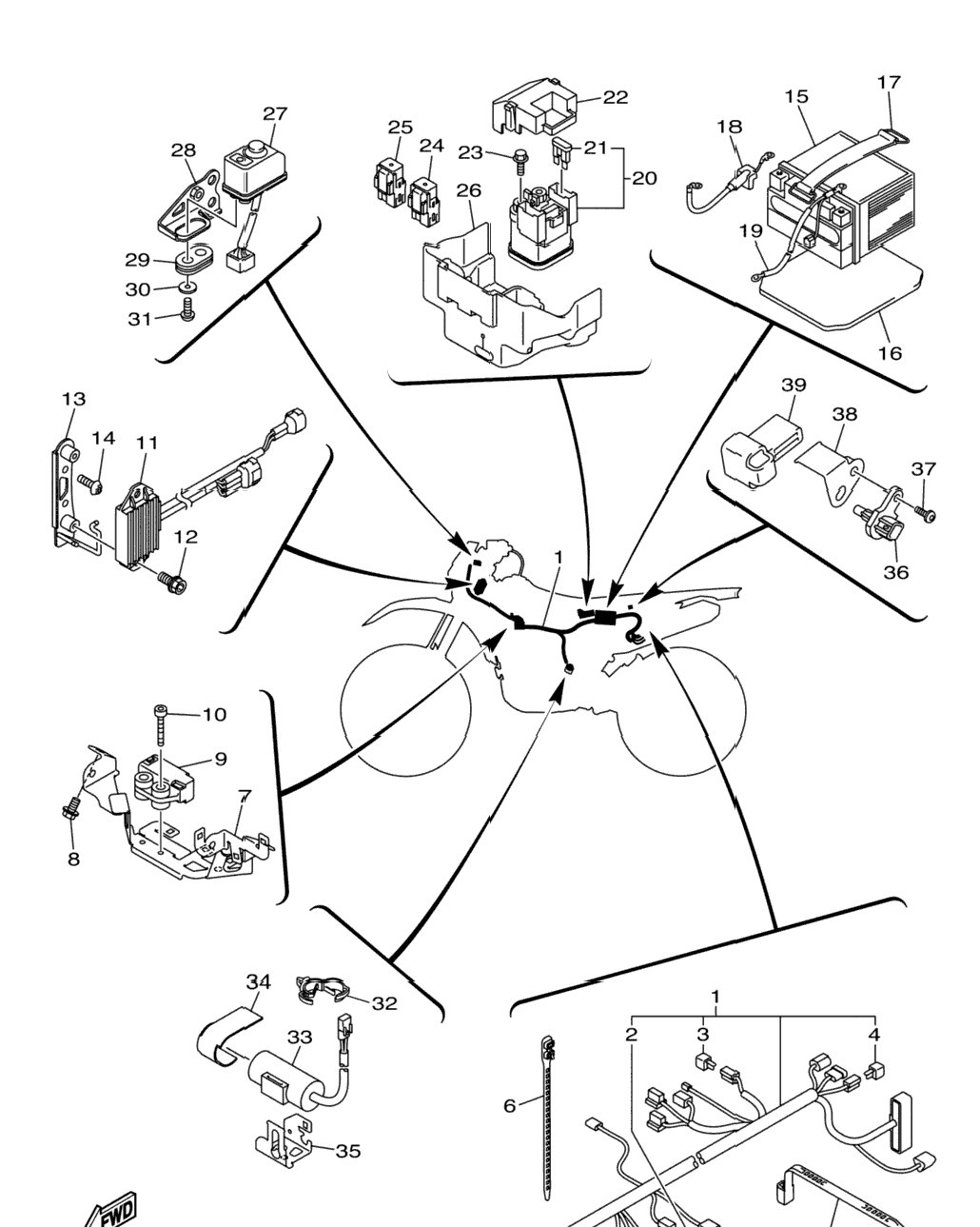

| 1 | 1DX-82590-20-00 | Wire Harness Assy | 1 шт. | — | |
|
| 2 | 5TJ-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 3 | 4WA-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 4 | 3WP-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 5 | 90464-15195-00 | Clamp | 1 шт. | — | |
|
| 6 | 90464-45001-00 | Clamp | 1 шт. | — | |
|
| 7 | 1DX-85548-00-00 | Holder | 1 шт. | — | |
|
| 8 | 90105-06064-00 | .Bolt, Flange | 2 шт. | — | |
|
| 9 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 10 | 91312-04020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 11 | 1DX-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 12 | 90105-06110-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 1DX-87208-00-00 | Stay, Regulator | 1 шт. | — | |
|
| 14 | 92012-06010-00 | Bolt, Button Head | 2 шт. | — | |
|
| 15 | 5TJ-82100-01-00 | Battery Assy (Ytz7s(F)) | 1 шт. | — | |
|
| 16 | 5UM-82176-E0-00 | Damper | 1 шт. | — | |
|
| 17 | 8CY-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 18 | 1DX-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 19 | 1DX-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 20 | 1DX-81940-00-00 | Starter Relay Assy (Rc19-102A) | 1 шт. | — | |
|
| 21 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 шт. | — | |
|
| 22 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 23 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 5UM-81950-E0-00 | Relay Assy (5Um-E0) | 1 шт. | — | |
|
| 25 | 5UM-81950-E0-00 | Relay Assy (5Um-E0) | 1 шт. | — | |
|
| 26 | 1DX-81952-00-00 | Holder, Relay | 1 шт. | — | |
|
| 27 | 1DX-82510-00-00 | Main Switch Assy | 1 шт. | — | |
|
| 28 | 1DX-82514-00-00 | Stay, Main Switch | 1 шт. | — | |
|
| 29 | 90480-01026-00 | Grommet | 1 шт. | — | |
|
| 30 | 90201-04030-00 | Washer, Plate | 2 шт. | — | |
|
| 31 | 98502-04008-00 | Screw, Pan Head | 2 шт. | — | |
|
| 32 | 90464-13249-00 | .Clamp | 1 шт. | — | |
|
| 33 | 1DX-81965-10-00 | Condenser, Smoothing | 1 шт. | — | |
|
| 34 | 1DX-8253E-00-00 | Insulator 1 | 1 шт. | — | |
|
| 35 | 1DX-81627-00-00 | Bracket, Condencer | 1 шт. | — | |
|
| 36 | 5YU-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 37 | 98502-05014-00 | Screw, Pan Head | 1 шт. | — | |
|
| 38 | 1DX-85542-00-00 | Bracket | 1 шт. | — | |
|
| 39 | 1DX-8A7M1-00-00 | Band 1 | 1 шт. | — | |
|
