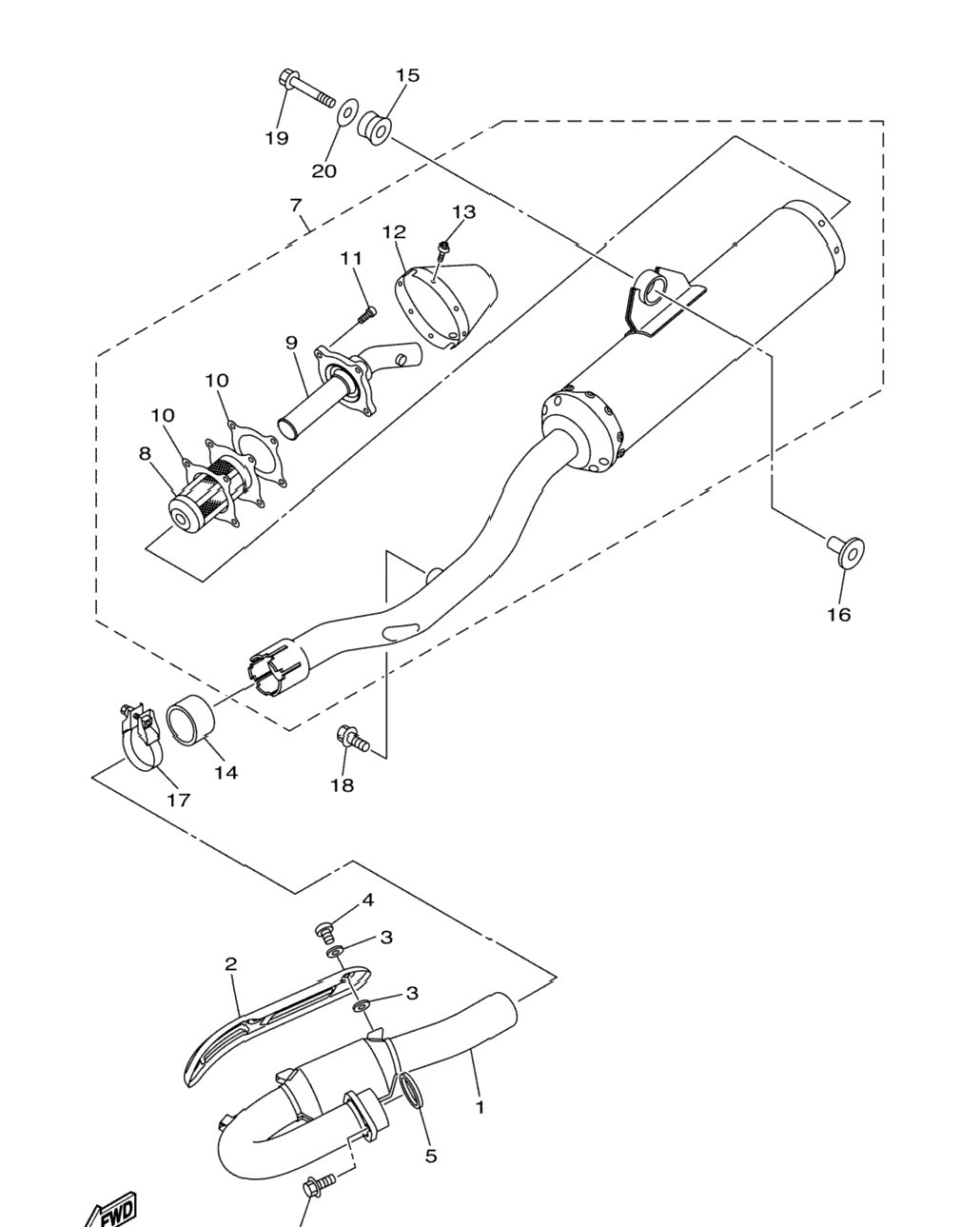

| 1 | 1DX-14611-20-00 | Pipe, Exhaust 1 | 1 шт. | — | |
|
| 2 | 2S2-14628-00-00 | Protector, Exhaust Pipe | 1 шт. | — | |
|
| 3 | 90201-05017-00 | Washer, Plate | 6 шт. | — | |
|
| 4 | 98980-06008-00 | Screw, Bind | 3 шт. | — | |
|
| 5 | 3VD-14613-01-00 | Gasket, Exhaust Pipe | 1 шт. | — | |
|
| 6 | 90105-08142-00 | Bolt, Flange | 1 шт. | — | |
|
| 7 | 5TJ-14710-E0-00 | Muffler Assy 1 | 1 шт. | — | |
|
| 8 | 5TJ-14780-00-00 | . .Spark Arrester Assy | 1 шт. | — | |
|
| 9 | 5TJ-14784-00-00 | . .Pipe, Tail | 1 шт. | — | |
|
| 10 | 5TJ-14623-00-00 | . .Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 11 | 90110-05041-00 | . .Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 12 | 5TJ-14799-00-00 | . .Cap | 1 шт. | — | |
|
| 13 | 92012-05008-00 | . Bolt, Button Head | 6 шт. | — | |
|
| 14 | 5XD-14714-00-00 | Gasket, Muffler | 1 шт. | — | |
|
| 15 | 1DX-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 16 | 90387-08081-00 | Collar | 1 шт. | — | |
|
| 17 | 5BE-14788-00-00 | Band, Silencer | 1 шт. | — | |
|
| 18 | 90105-08307-00 | Bolt, Flange | 1 шт. | — | |
|
| 19 | 90105-08137-00 | Bolt, Flange | 1 шт. | — | |
|
| 20 | 90201-08061-00 | Washer, Plate | 1 шт. | — | |
|
